Allied Telesis AT-SBx81CFC960 - Manual (Page 301)

SwitchBlade x8112 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section III: Building a Stack with VCStack Plus 301

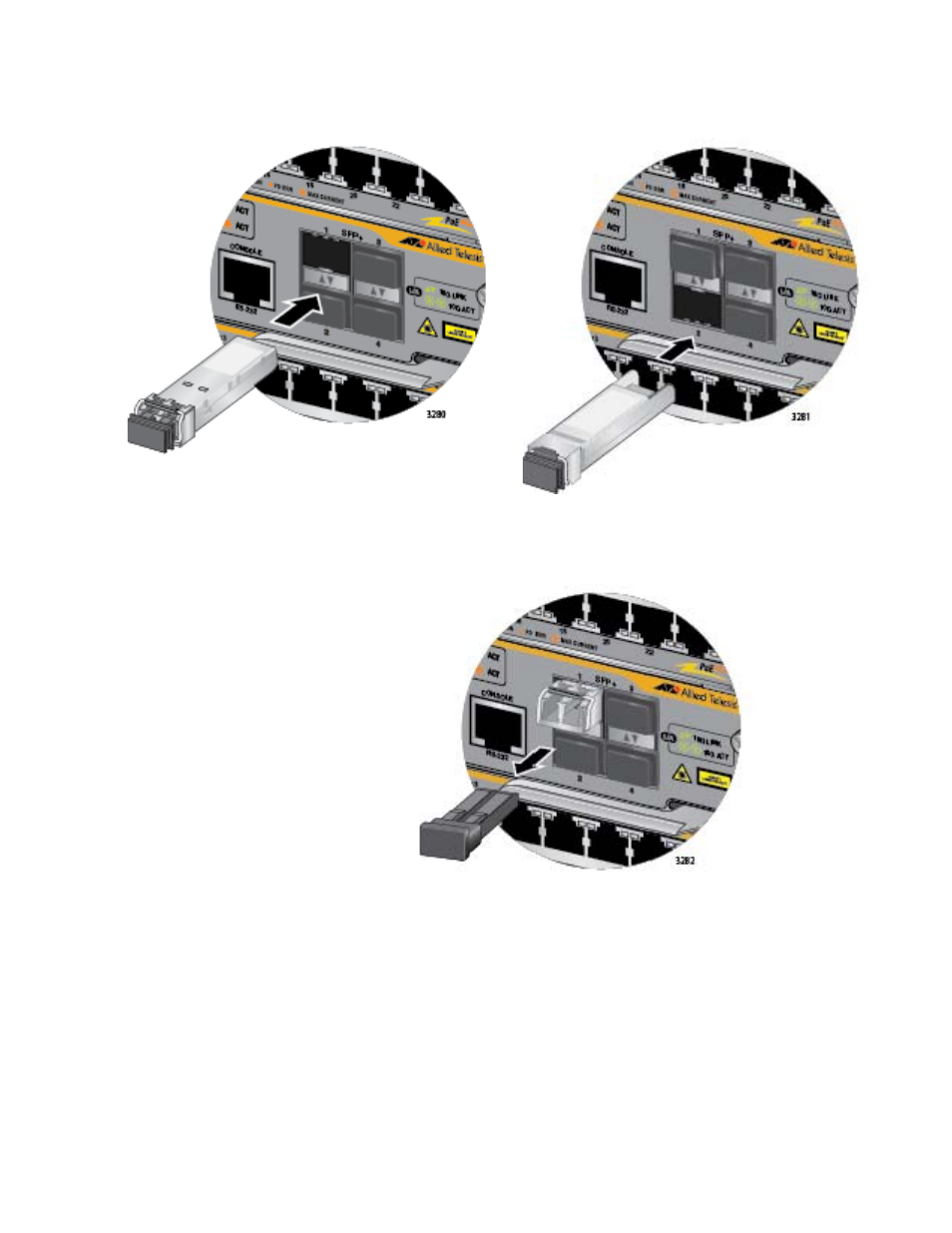

Figure 186. Installing the AT-StackOP/0.3 or AT-StackOP/9.0 Transceiver
4. Remove the dust cover from the transceiver, as shown in Figure 187.
Figure 187. Removing the Dust Cover from a Stacking Transceiver
5. Verify the position of the handle on the transceiver. If the transceiver is
in slot 1 or 3, the handle should be in the upright position, as shown in
Figure 188 on page 302. If the transceiver is in slot 2 or 4, the handle
should be in the down position.
