Chapter 7: Installing the AT-SBx81CFC960 Control Card and Ethernet Line Cards
134
Section II: Installing the Chassis
Installing the Ethernet Line Cards
This section contains the installation procedure for the Ethernet line cards.
The illustrations show the AT-SBx81GP24 Line Card, but the procedure is
the same for all the cards.
Note
Please review “Guidelines to Handling the Controller and Line
Cards” on page 126 before performing this procedure.
This procedure requires the following tools:
#2 Phillips-head screwdriver (not provided)
#2 Phillips-head, 5 inch-lbs torque screwdriver (optional — not
provided)
To install the Ethernet line cards, perform the following procedure:
1. Choose a slot in the chassis for the Ethernet line card. The Ethernet
line cards may be installed in slots 1 to 4 and 7 to 12. The slots are
shown in Figure 73.

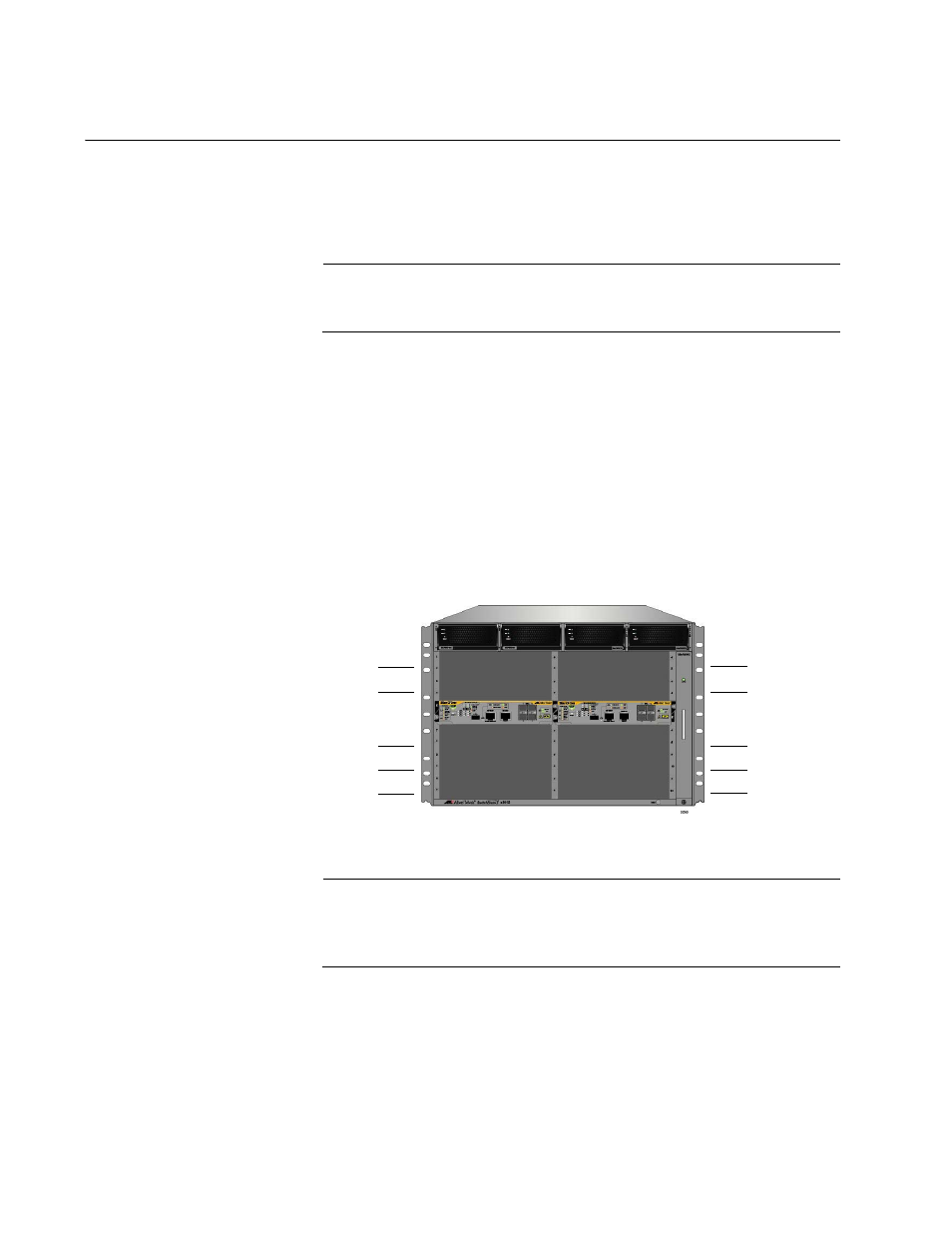

Figure 73. Slots 1 to 4 and 7 to 12 for the Ethernet Line Cards
Note
The AT-SBx81XS16 Line Card is supported in slots 1 to 4, 8, and 10
in the AT-SBx8112 Chassis. The card is not supported in slot 7, 9,
11, or 12.
2. Remove the line card from the shipping package. If it is missing or
damaged, contact your Allied Telesis sales representative for
assistance.
Slot 1
Slot 3
Slot 7
Slot 9
Slot 11
Slot 2
Slot 4
Slot 8
Slot 10
Slot 12
