AT-SBx81GT40 Line Card
The AT-SBx81GT40 Line Card, shown in Figure 17, is a Gigabit Ethernet
switch.

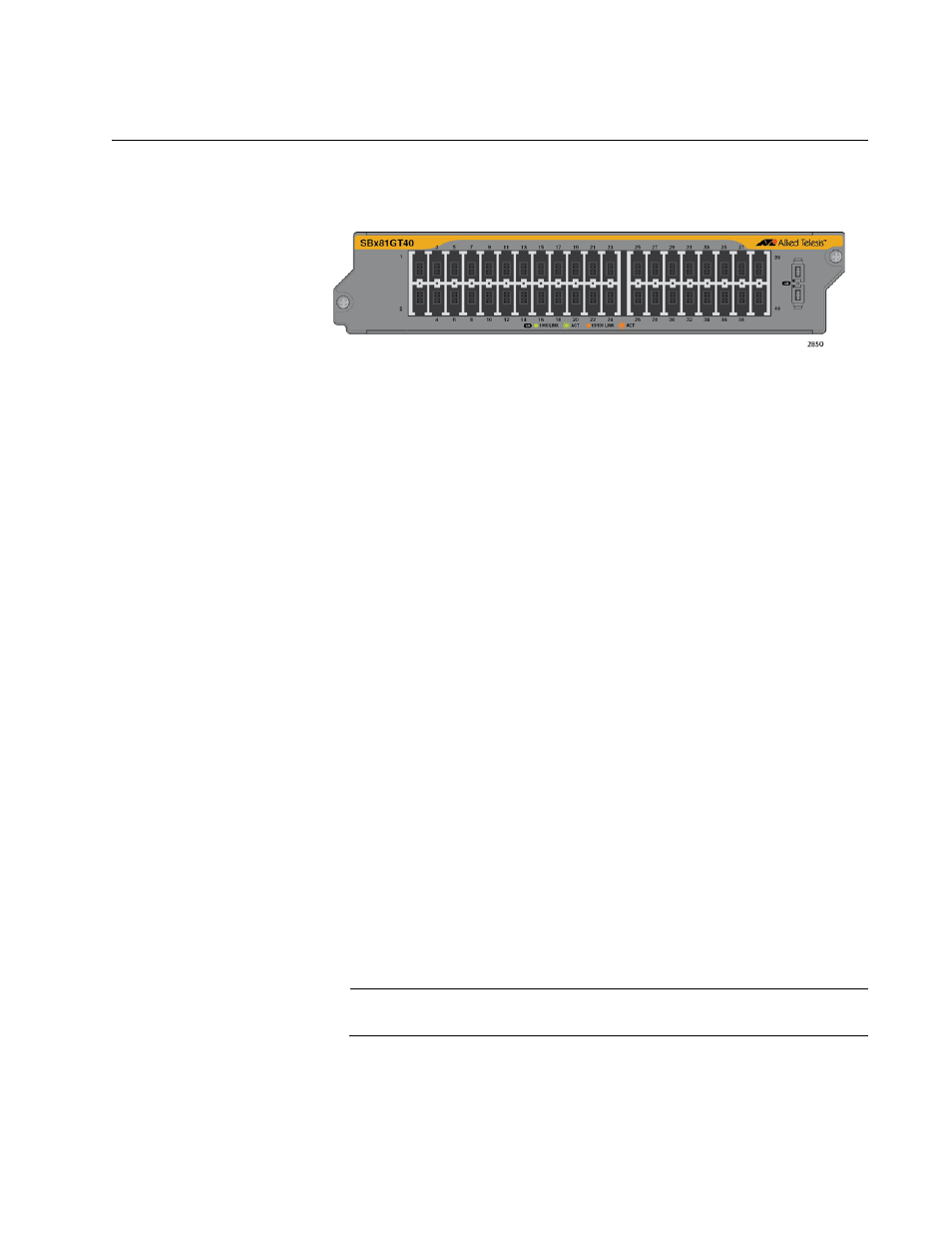

Figure 17. AT-SBx81GT40 Line Card
Here are the main features of the line card:
 40 10/100/1000Base-T ports
 RJ point 5 connectors
 100 meters (328 feet) maximum operating distance per port
 Auto-Negotiation for speed
 Full-duplex mode only
 Automatic MDIX detection for ports operating at 10/100Base-TX,
(Automatic MDIX detection does not apply to 1000Base-T
operation.)
 Port Link/Activity (L/A) LEDs
 32K entry MAC address table
 32 Mb buffer memory
 Jumbo frame support:
– 10240 octets for tagged and untagged traffic
between ports on the same line card
– 10232 octets for untagged traffic between ports on
different line cards
– 10236 octets for tagged traffic between ports on
different line cards
 Non-blocking full wire speed switching on all packet sizes, with two
AT-SBx81CFC960 Controller Fabric Cards
 Hot swappable
Note
The ports on the line card do not support half-duplex operation.
The cable requirements for the ports on the AT-SBx81GT40 Line Card are
listed in Table 12 on page 54.
