SwitchBlade x8112 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section II: Installing the Chassis 193
Connecting the
DC Power Wires
with the Right
Angle Terminals
To connect the DC power wires to the positive and negative terminals on
the power supply with the right angle terminals, perform the following
procedure:
1. Prepare adequate lengths of two stranded 8 AWG power wires by
stripping them as shown in Figure 134.
Warning
Do not strip more than the recommended amount of wire. Stripping
more than the recommended amount can create a safety hazard by
leaving exposed wire on the terminal block after installation.
 E10

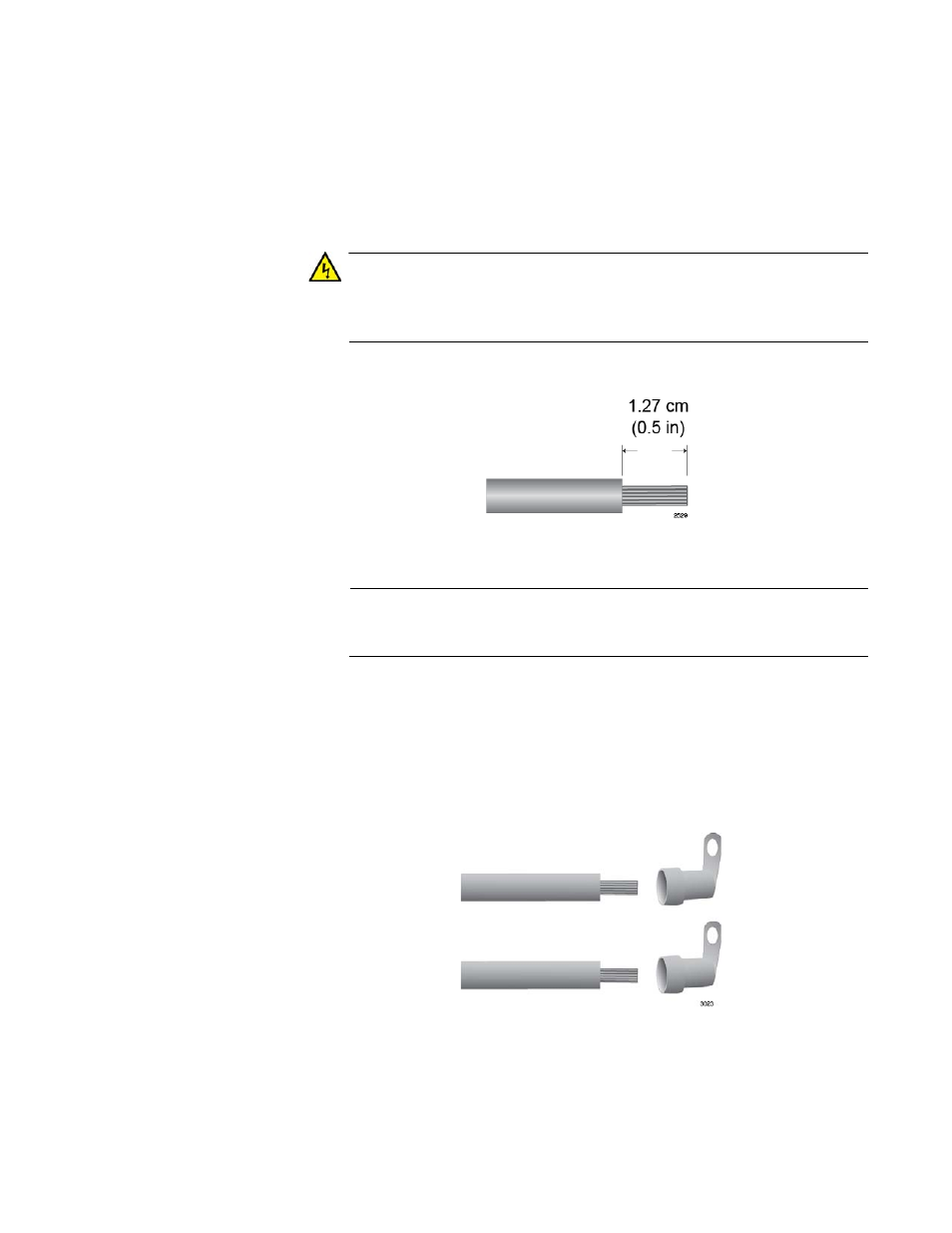

Figure 134. Stripping the Power Wires
Note
You must use stranded wires with the terminal lugs. You may not
use solid wires.
2. Verify that the On/Off switch on the AT-SBxPWRSYS1 DC Power
Supply is in the Off position. Refer to Figure 127 on page 186.
3. Insert the power wires into the right angle terminals included with the
power supply and use a crimping tool to secure the wires to the
terminals. See Figure 135,
Figure 135. Attaching the Power Wires to the Right Angle Terminals
