Allied Telesis AT-SBx81CFC960 User Manual
Page 258
Chapter 12: Replacing Modules
258
Section II: Installing the Chassis

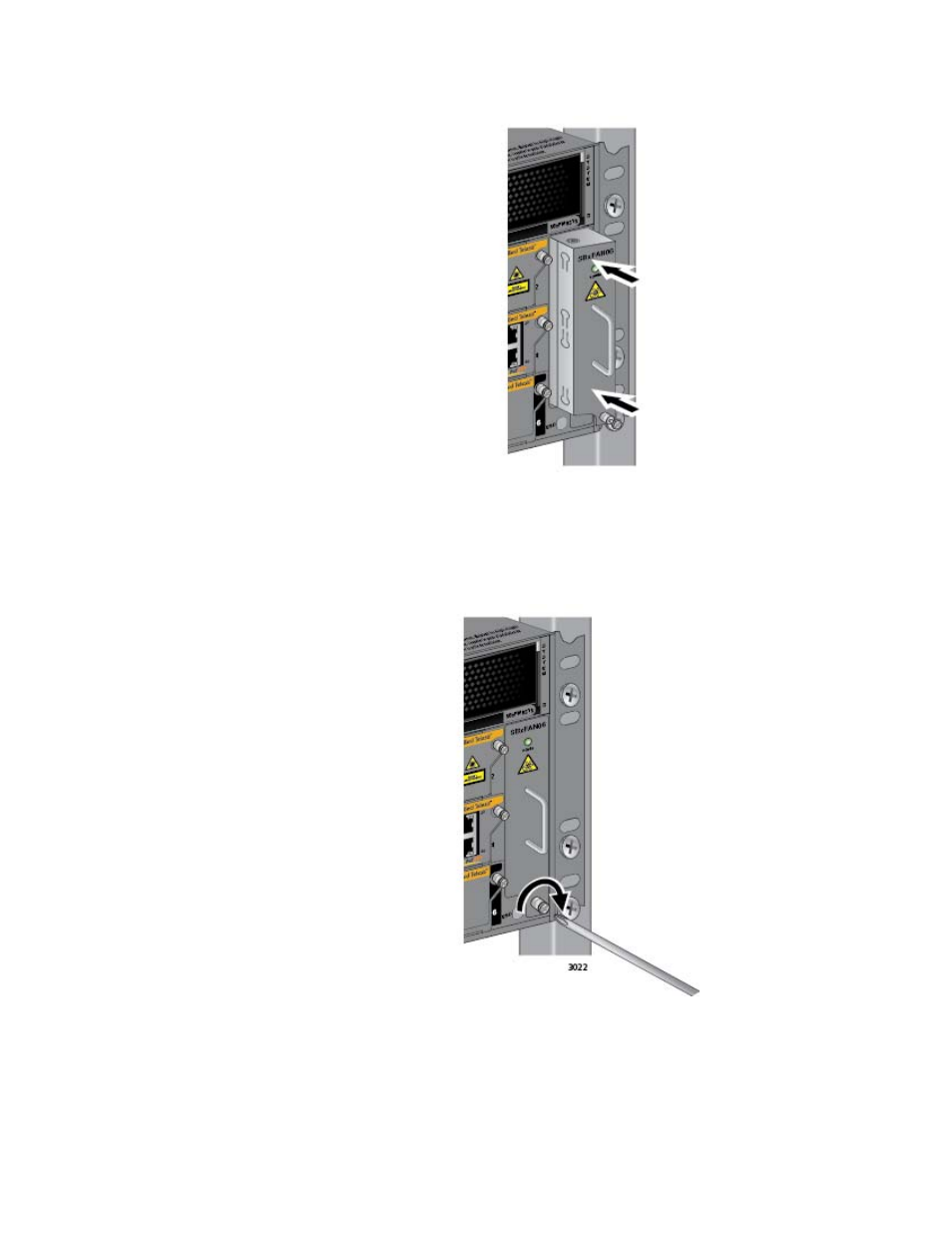

Figure 174. Securing the AT-SBxFAN06 Fan Module on the Backplane
Connector
3. With a #2 Phillips-head screwdriver, tighten the screw at the base of
the module to secure the module to the chassis. Refer to Figure 175.
Figure 175. Tightening the Screw on the AT-SBxFAN06 Fan Module
4. Reconnect any network cables you may have disconnected to access
the fan module.
