SwitchBlade x8106 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section II: Installing the Chassis 159
Installing SFP+ Transceivers in the AT-SBx81XS16 Line Card
Please review the information in “Guidelines to Installing SFP and SFP+
Transceivers” on page 147 before performing this procedure.
To install 10Gbps SFP+ transceivers in the AT-SBx81XS16 Line Card,
perform the following procedure:
1. Remove the dust plug from the slot chosen for the transceiver.

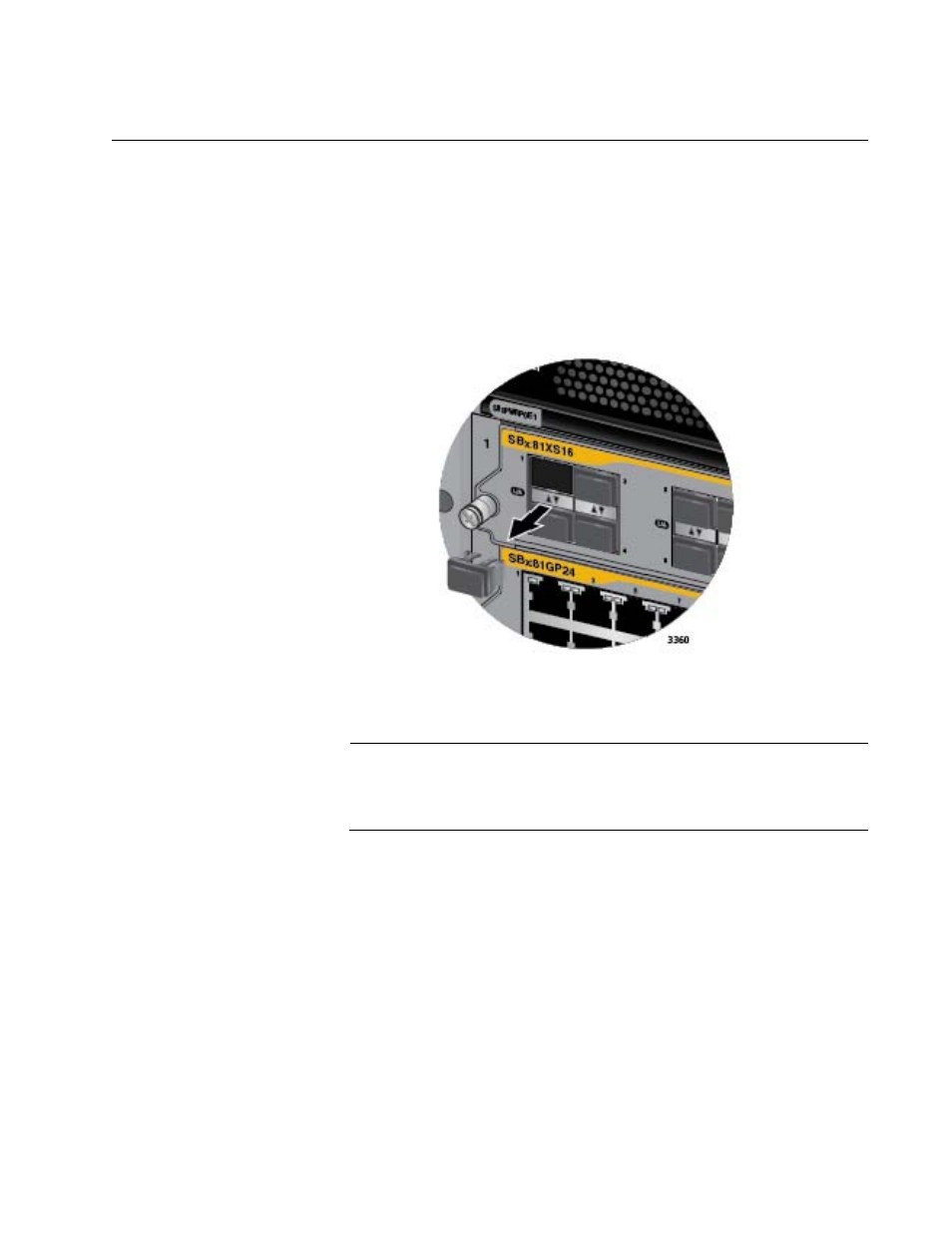

Figure 100 shows the dust plug removed from slot 1.
Figure 100. Removing the Dust Cover from a Transceiver Slot in the AT-
SBx81XS16 Line Card
Note
Do not remove the dust plug from the transceiver slot if you are not
installing the transceiver at this time. The dust plug protects the line
card from dust contamination.
2. Slide the transceiver in the slot until it clicks into place.
To install the transceiver into an odd numbered slot, position it with the
handle is on top as you slide it into the slot. To install the transceiver
into an even numbered slot, position it with the handle on the bottom.
Refer to Figure 101 on page 160.
