Chapter 8: Installing the Transceivers and Cabling the Ports
148 Section II: Installing the Chassis
Installing SFP Transceivers in the AT-SBx81GS24a Line Card
Please review the information in “Guidelines to Installing SFP and SFP+
Transceivers” on page 147 before performing this procedure.
To install SFP transceivers in AT-SBx81GS24a Line Cards, perform the
following procedure:
1. Remove the transceiver from its shipping container and store the
packaging material in a safe location.
2. Remove the dust cover from the SFP slot chosen for the transceiver,
as shown in Figure 85.

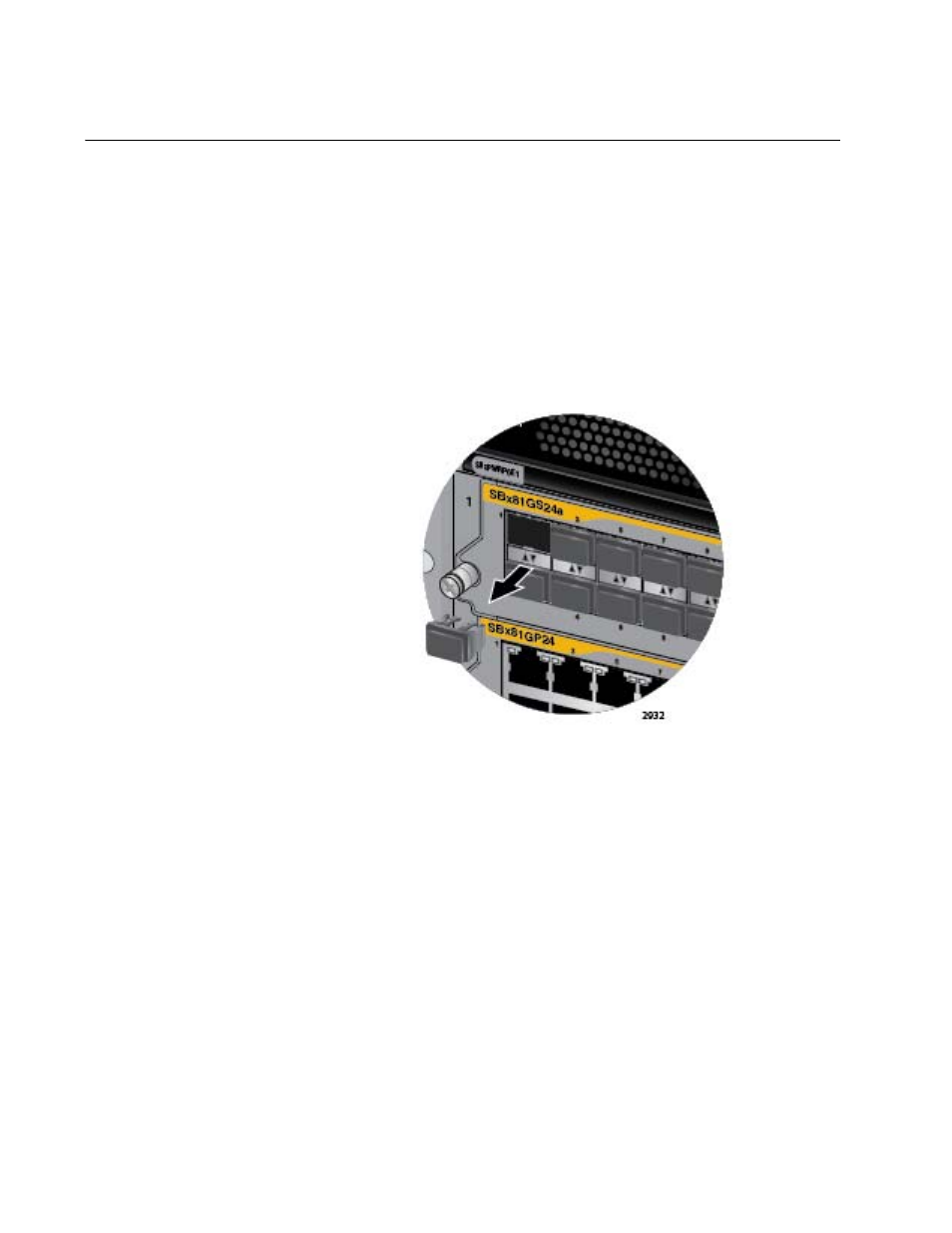

Figure 85. Removing the Dust Cover from an SFP Slot in the AT-
SBx81GS24a Line Card
