SwitchBlade x8106 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section II: Installing the Chassis 169

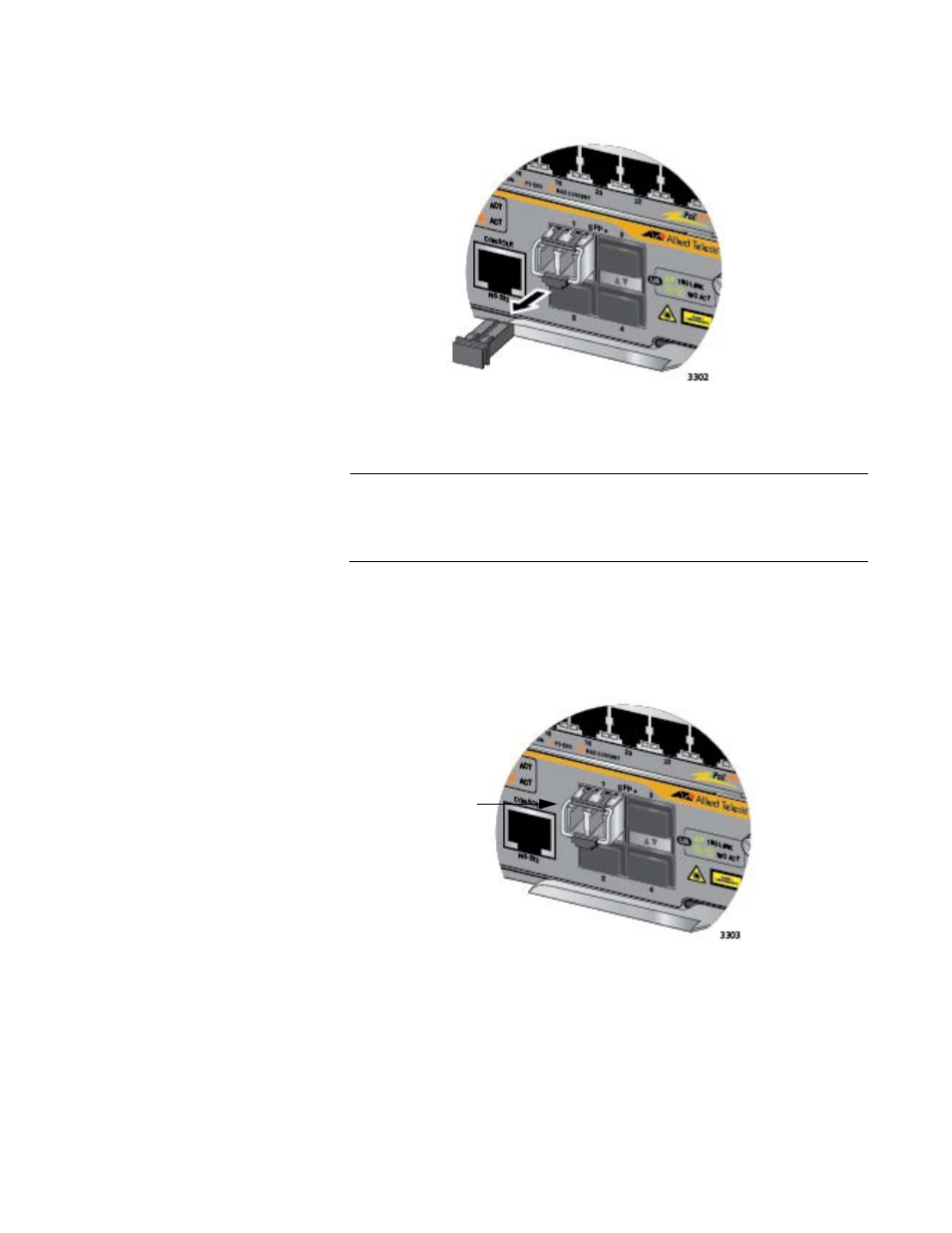

Figure 110. Removing the Dust Cover from an SFP+ Transceiver in the
AT-SBx81CFC960 Controller Fabric Card
Note
The dust cover protects the fiber optic port on the SFP+ transceiver
from dust contamination. Do not remove it until you are ready to
connect the fiber optic cable.
5. Verify the position of the handle on the transceiver. If the transceiver is
in slot 1 or 3, the handle should be in the upright position, as shown in
Figure 111. If the transceiver is in slot 2 or 4, the handle should be in
the down position.
Figure 111. Positioning the Handle on the Transceiver
6. Connect the fiber optic cable to the port on the transceiver, as shown
in Figure 112 on page 170. The connector should snap into the port.
Handle
