SwitchBlade x8106 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section II: Installing the Chassis 149
3. To install the transceiver in an SFP slot on the top row of the line card,
orient the transceiver with the handle on top, as shown in Figure 86. To
install it into a slot on the bottom row of the line card, orient it with the
handle on the bottom.

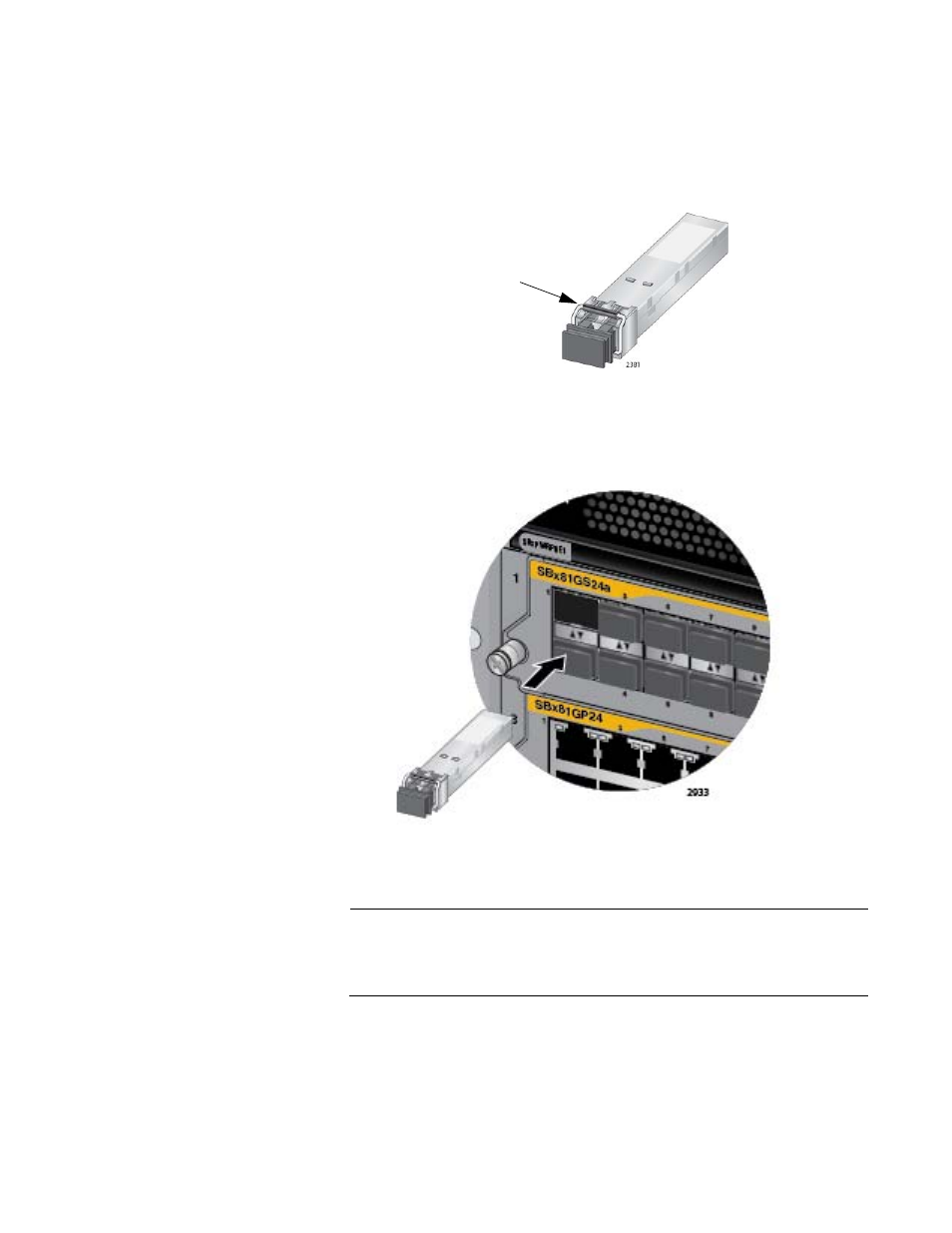

Figure 86. Handle on SFP Transceiver
4. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 87.
Figure 87. Inserting the SFP Transceiver in the AT-SBx81GS24a Line
Card
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 4 to install
the remaining SFP transceivers in the line cards.
5. Remove the protective cover from the SFP transceiver, as shown in
Figure 88 on page 150.
Handle
