SwitchBlade x8106 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section II: Installing the Chassis
157

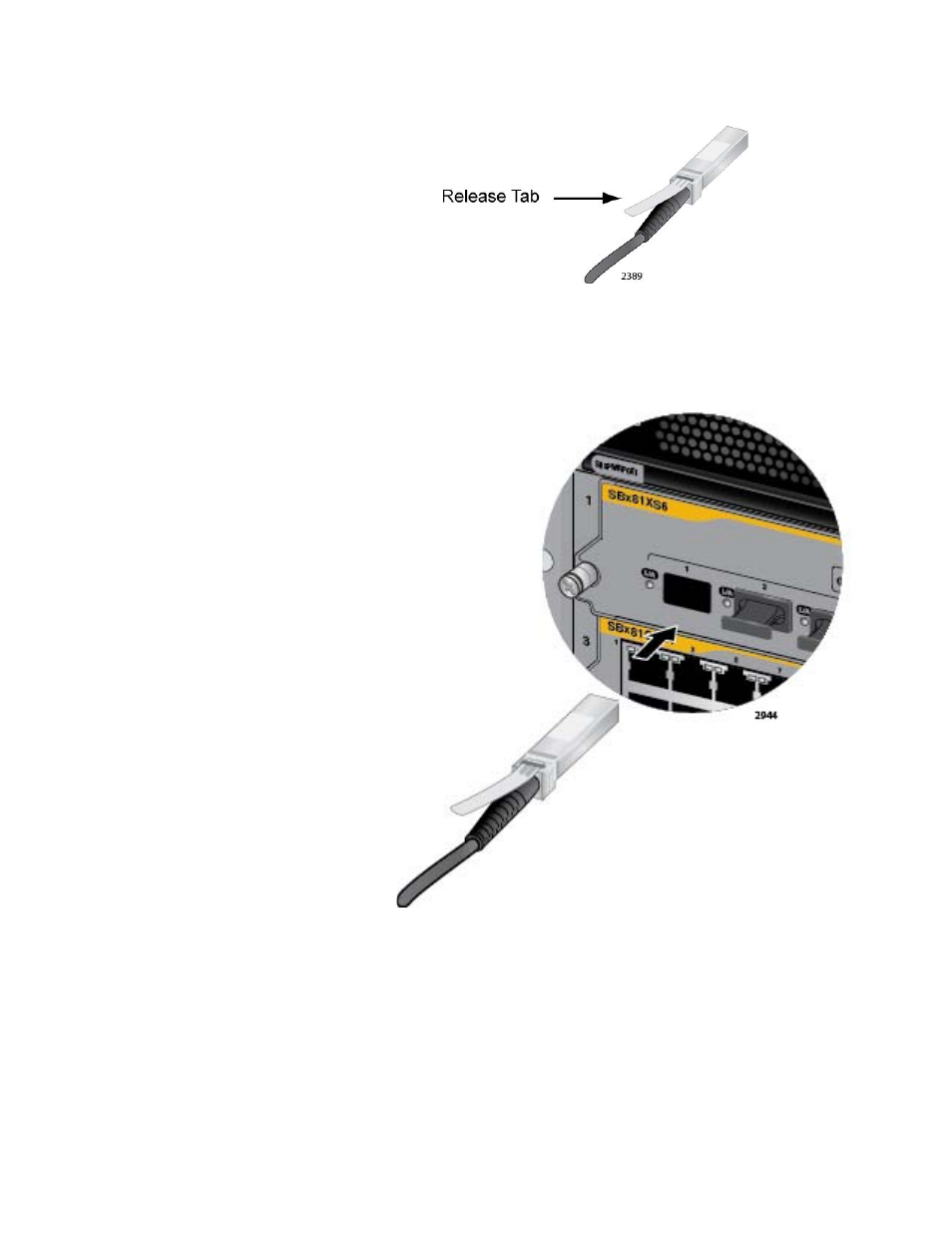

Figure 98. Release Tab on the AT-SP10TW Cable
3. Slide the connector into the slot until it clicks into place, as shown in
Figure 99. Installing the AT-SP10TW Cable in the AT-SBx81XS6 Line
Card
4. Install the other end of the cable into an SFP+ slot on another network
device.
5. Repeat this procedure to install additional AT-SP10TW Cables.
