Loosening the screw on the at-sbxfan06 fan module – Allied Telesis AT-SBx81CFC960 User Manual
Page 254
Chapter 12: Replacing Modules
254
Section II: Installing the Chassis

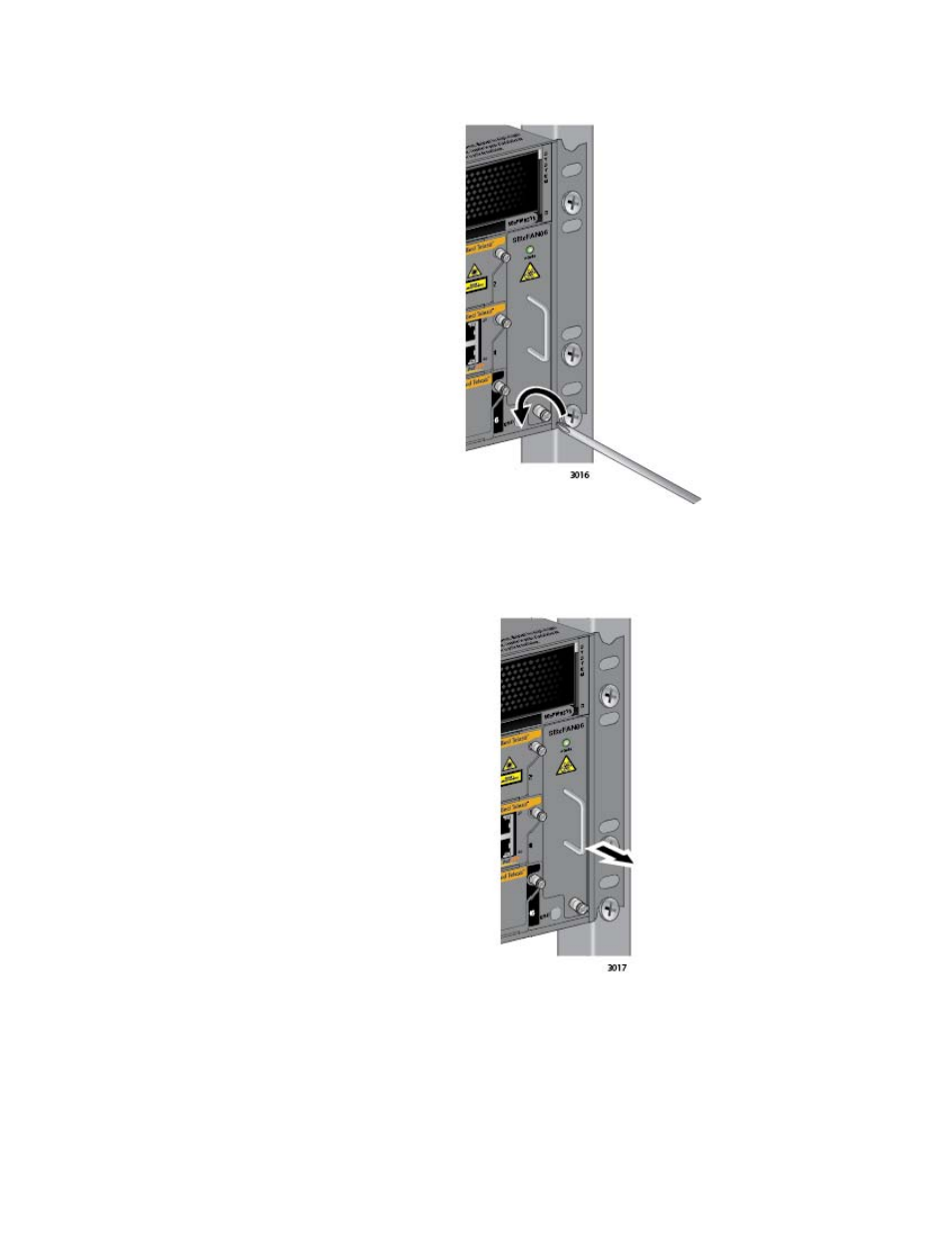

Figure 169. Loosening the Screw on the AT-SBxFAN06 Fan Module
3. Carefully pull on the handle to disconnect the fan module from the
connector on the backplane of the chassis. Refer to Figure 170.
Figure 170. Loosening the AT-SBxFAN06 Fan Module from the Backplane
Connector
