SwitchBlade x8106 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section II: Installing the Chassis
131

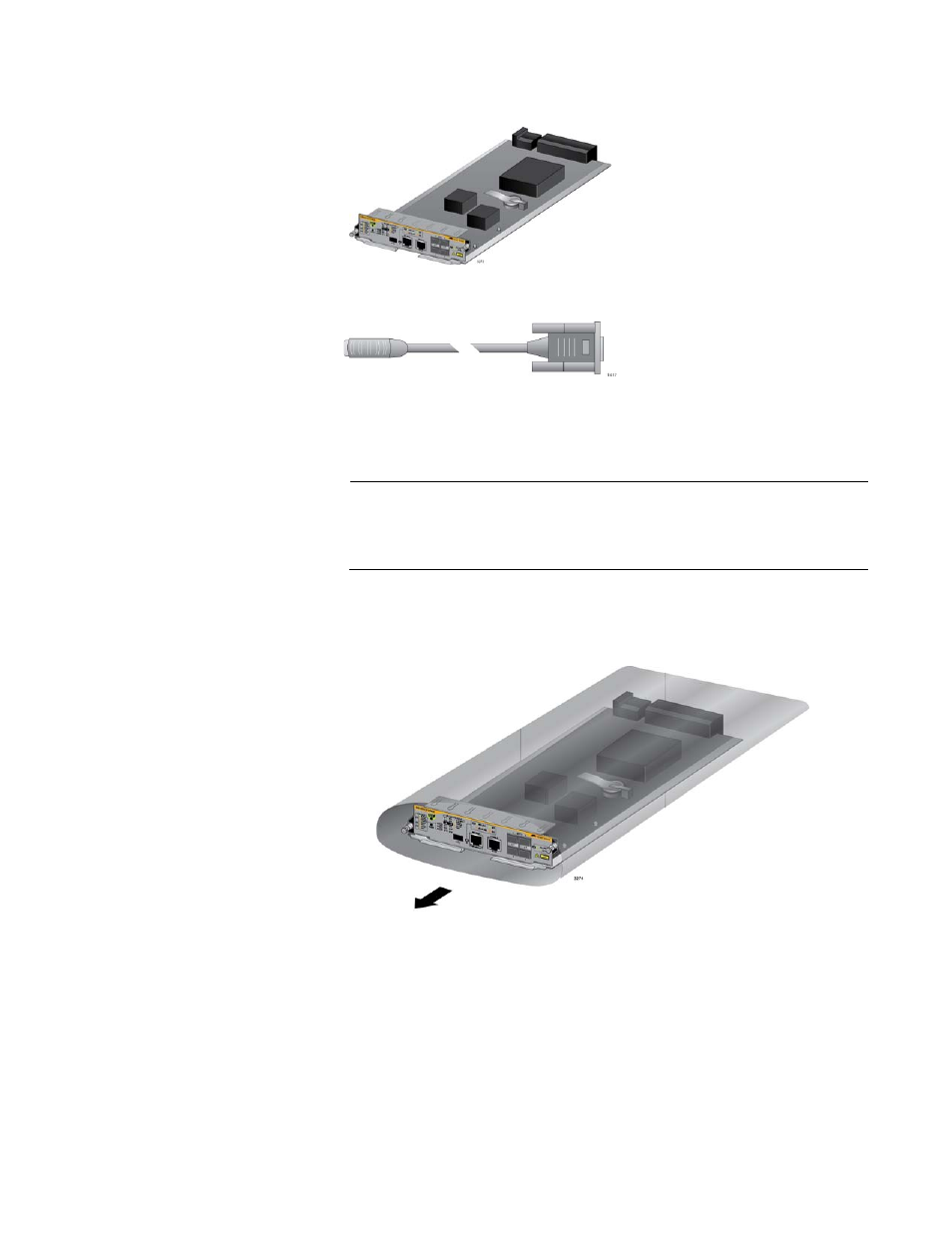

Figure 69. Items Included with the AT-SBx81CFC960 Controller Fabric
Card
Note
Store the packaging material in a safe location. You should use the
original shipping material if you need to return the unit to Allied
Telesis.
3. Carefully remove the controller card from the anti-static bag. Refer to
Figure 70. Removing the AT-SBx81CFC960 Controller Fabric Card from
the Anti-static Bag
4. Carefully remove the battery insulator tab on the controller card by
sliding it out from between the battery and battery clip, as shown in
Figure 71 on page 132.
One AT-SBx81CFC960
Controller Fabric Card
One 2 m (6.6 ft) local
management cable with
RJ-45 (8P8C) and DB-9
(D-sub 9-pin) connectors.
