Figure 141: removing the terminal screws – Allied Telesis AT-SBx81CFC960 User Manual
Page 197
SwitchBlade x8106 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section II: Installing the Chassis
197

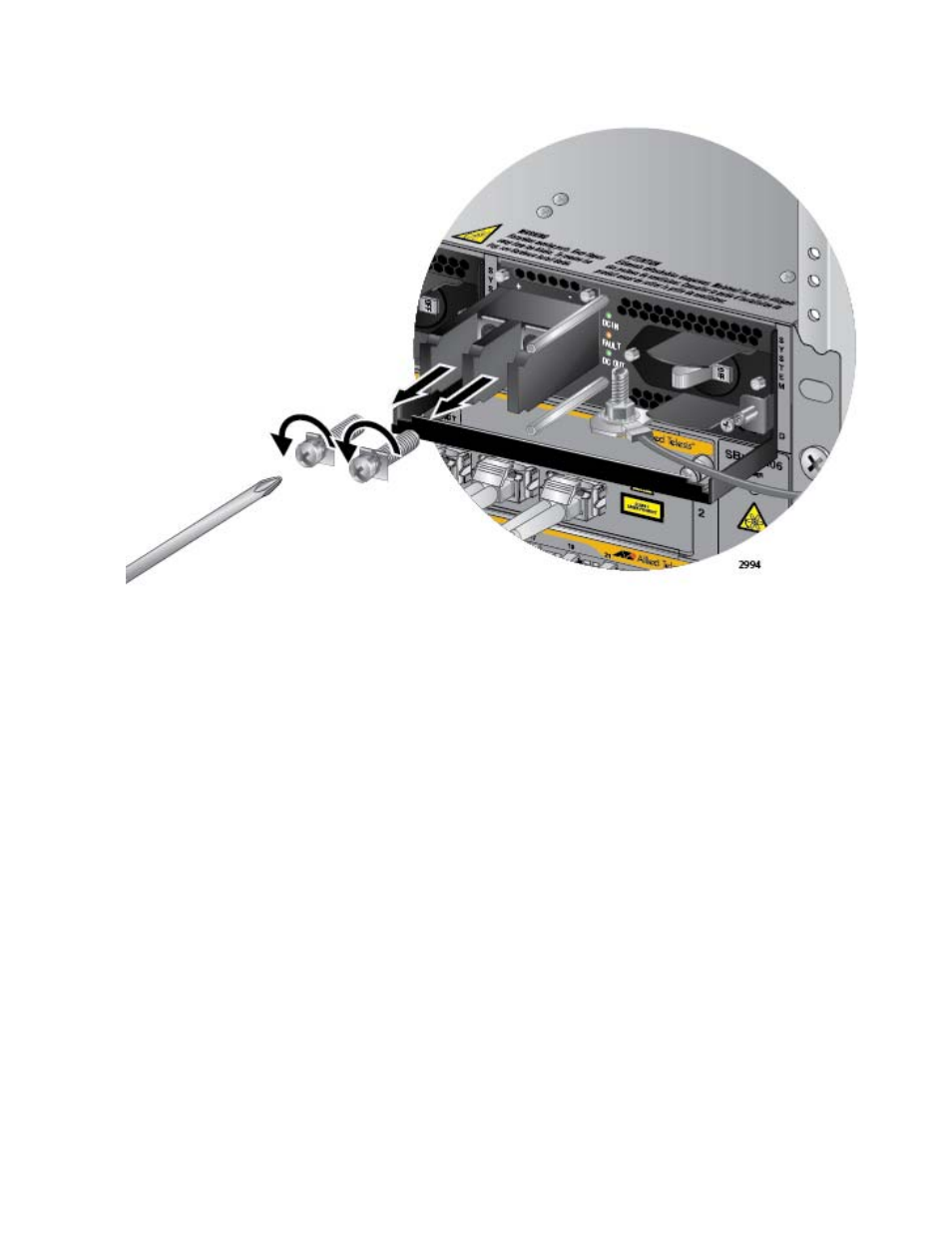

Figure 141. Removing the Terminal Screws
6. With a #3 Phillips-head screwdriver, connect the positive (+) power
lead wire to the positive terminal on the power supply, with one of the
terminal screws removed in the previous step. The positive terminal is
on the left. Refer to Figure 142 on page 198.
Allied Telesis recommends tightening the screw to 30 to 40 inch-lbs.
