Chapter 1: Chassis and Power Supplies
22 Section I: Hardware Overview
Introduction
The SwitchBlade x8106 product is a modular Layer 3+ Ethernet switch.
The main components are the AT-SBx8106 Chassis, Ethernet line cards,
a controller card, system power supply, Power over Ethernet Plus (PoE+)
power supply, and fan module. The AT-SBx8106 Chassis is shown in
Figure 1.

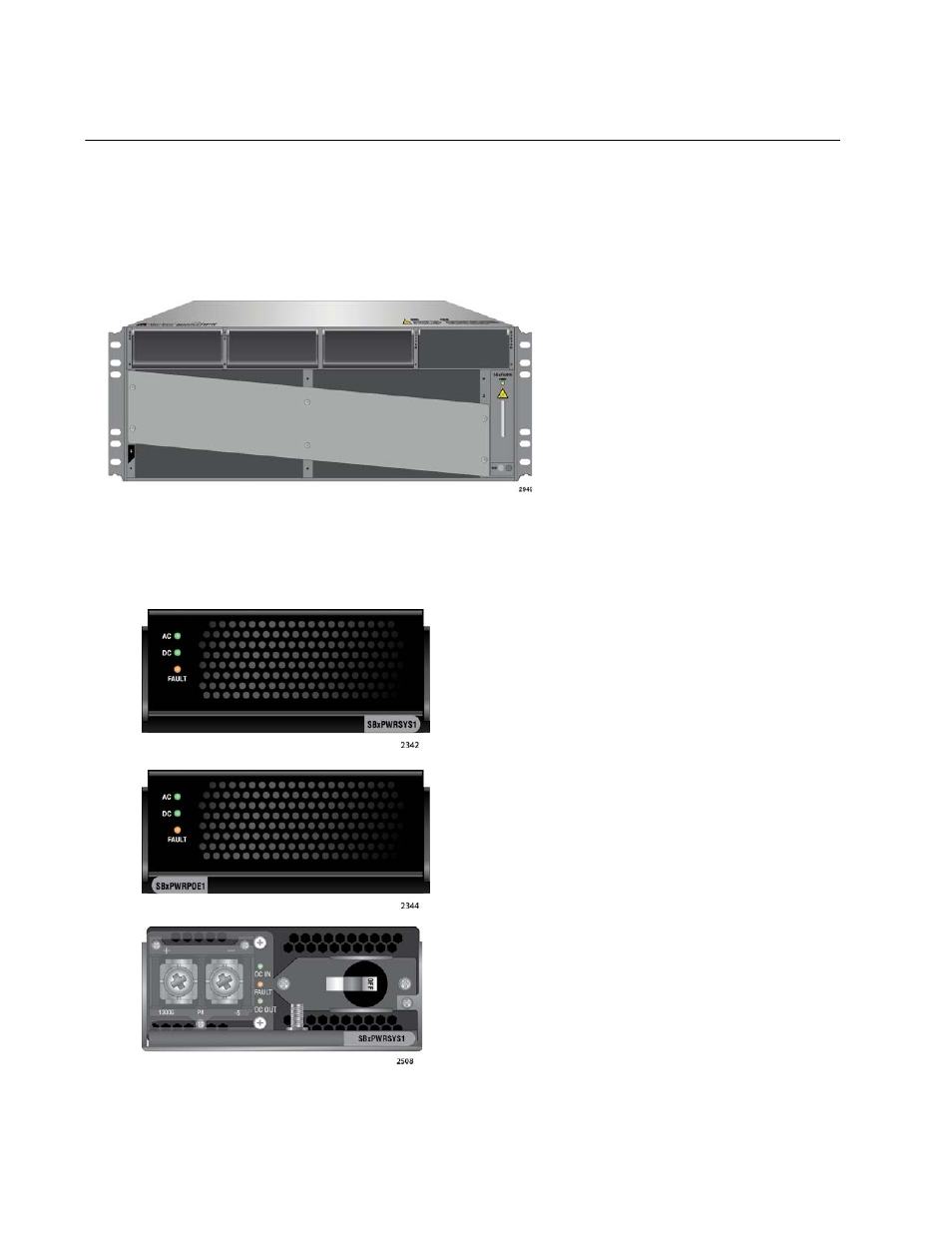

Figure 1. AT-SBx8106 Chassis
Figure 2 illustrates the power supply modules.
Figure 2. Power Supply Units
The chassis has slots for four
Ethernet line cards and two
controller cards, or five line
cards and one controller card.
The chassis also has slots for
two system power supplies and
two PoE+ power supplies.
AT-SBxPWRSYS1 AC Power Supply for
the Ethernet line cards, controller card,
and fan module.
AT-SBxPWRPOE1 AC Power Supply
with 1200 W PoE budget for the ports on
the AT-SBx81GP24 PoE Ethernet Line
Card.
AT-SBxPWRSYS1 DC Power Supply for
the Ethernet line cards, controller card,
and fan module.
