6. Connect the fiber optic cable to the port on the transceiver, as shown
in Figure 96. The connector should snap into the port.

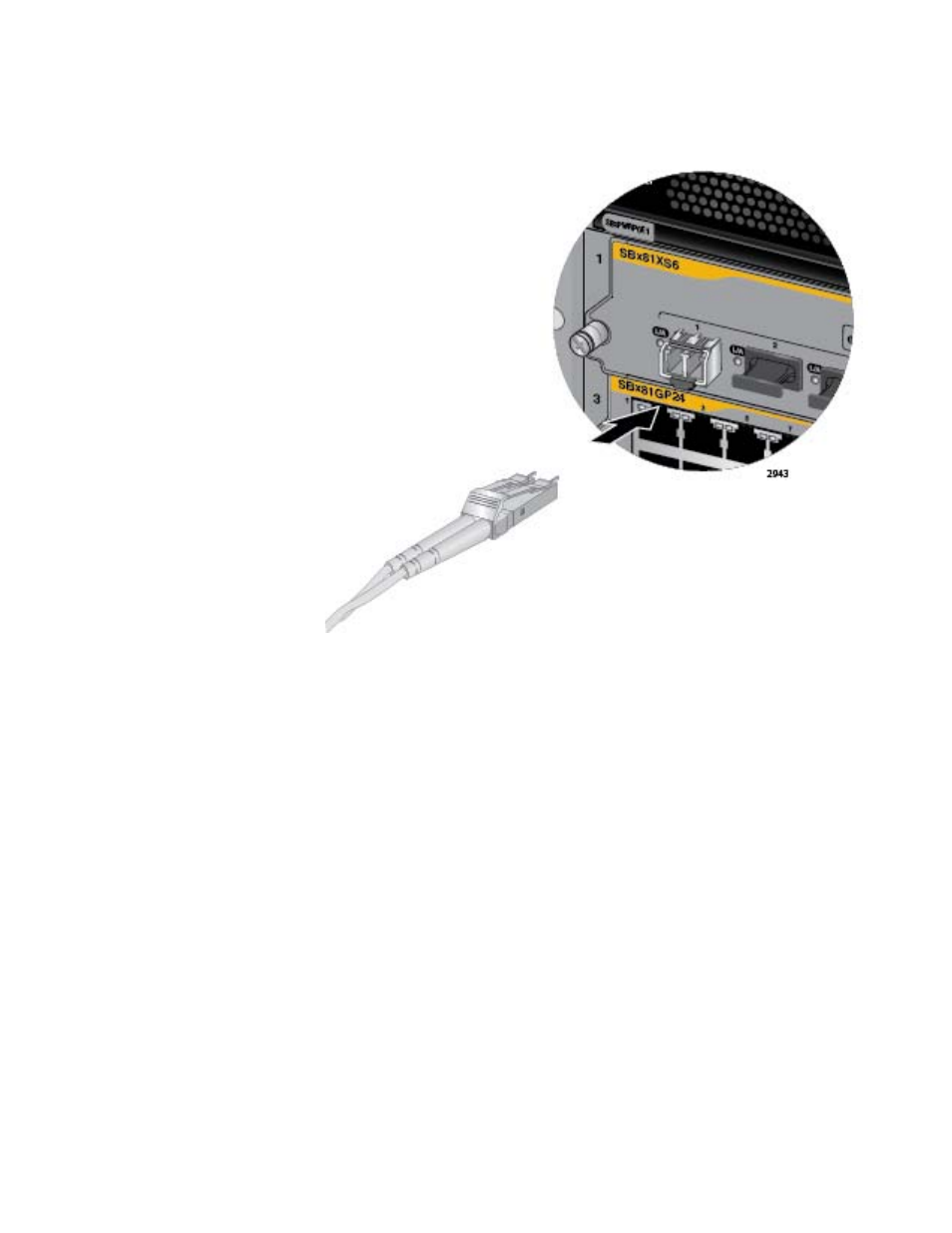

Figure 96. Attaching a Fiber Optic Cable to an SFP+ Transceiver in the
AT-SBx81XS6 Line Card
7. Repeat this procedure to install additional SFP plus transceivers in the
AT-SBx81XS6 Line Cards.
After installing and cabling the SFP+ transceivers, do one of the following:
 To install and cable additional transceivers, go to the appropriate
section in this chapter for instructions.
 After cabling all the ports in the chassis, go to Chapter 9,
“Powering On the Chassis” on page 171.
