Figure 160: removing the negative lead wire – Allied Telesis AT-SBx81CFC960 User Manual
Page 239
SwitchBlade x8106 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section II: Installing the Chassis
239

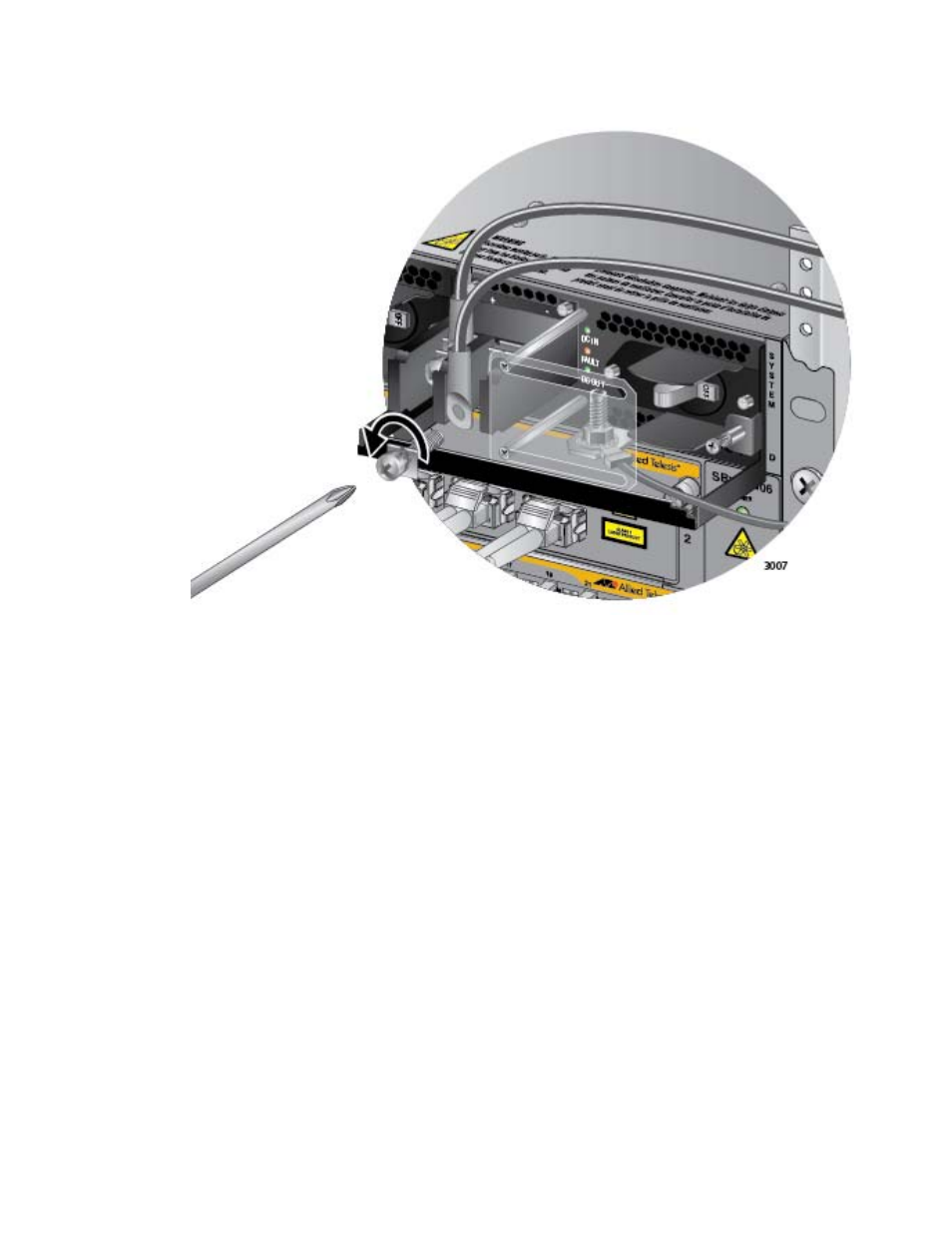

Figure 160. Removing the Negative Lead Wire
6. Use a #3 screwdriver to remove the positive (+) lead wire from the
terminal block. Refer to Figure 161 on page 240.
