Chapter 7: Installing the AT-SBx81CFC960 Controller and Ethernet Line Cards

134

Section II: Installing the Chassis

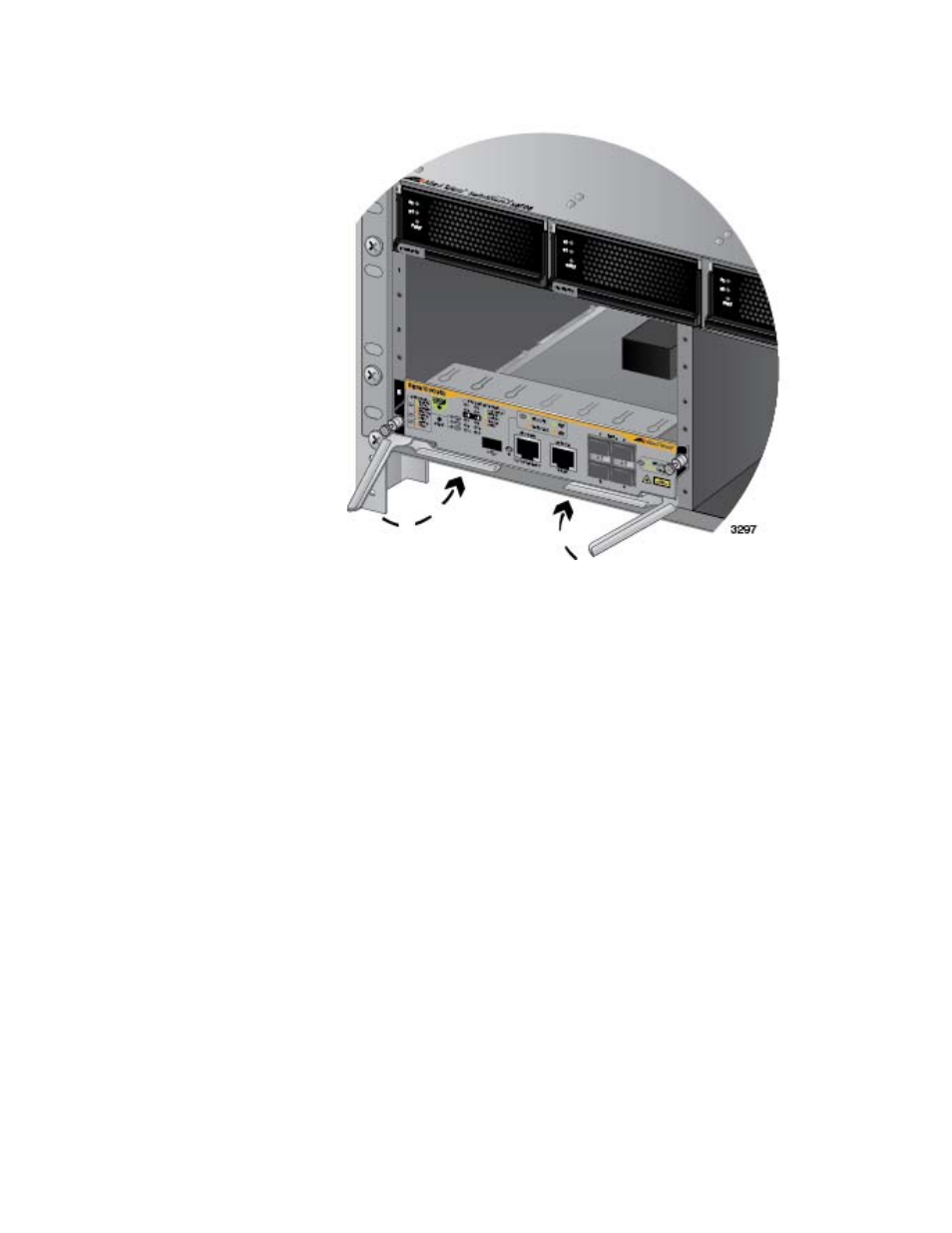

Figure 74. Closing the Locking Levers on the AT-SBx81CFC960

Controller Fabric Card

9. Finger tighten the two thumbscrews on the card to secure the card to

the chassis, as shown in Figure 75 on page 135.
