Chapter 9: Powering On the Chassis
176
Section II: Installing the Chassis
Powering On the AT-SBxPWRPOE1 Power Supply
If you have not already installed the AT-SBxPWRPOE1 Power Supplies,
refer to “Installing the AT-SBxPWRPOE1 PoE Power Supply” on page 115
for installation instructions. To power on the power supplies, perform the
following procedure:
1. Identify AC sockets A and B in the recessed panel on the back panel
of the chassis, shown in Figure 113 on page 173. The sockets are for
the AT-SBxPWRPOE1 Power Supplies in slots A and B on the front
panel of the chassis.
2. Plug the AC power cord that comes with the power supply into one of
the plugs, as shown in Figure 116.
The plug should have a power supply in the corresponding slot in the
front panel. If the chassis has two AT-SBxPWRPOE1 Power Supplies,
you may power on either supply first.

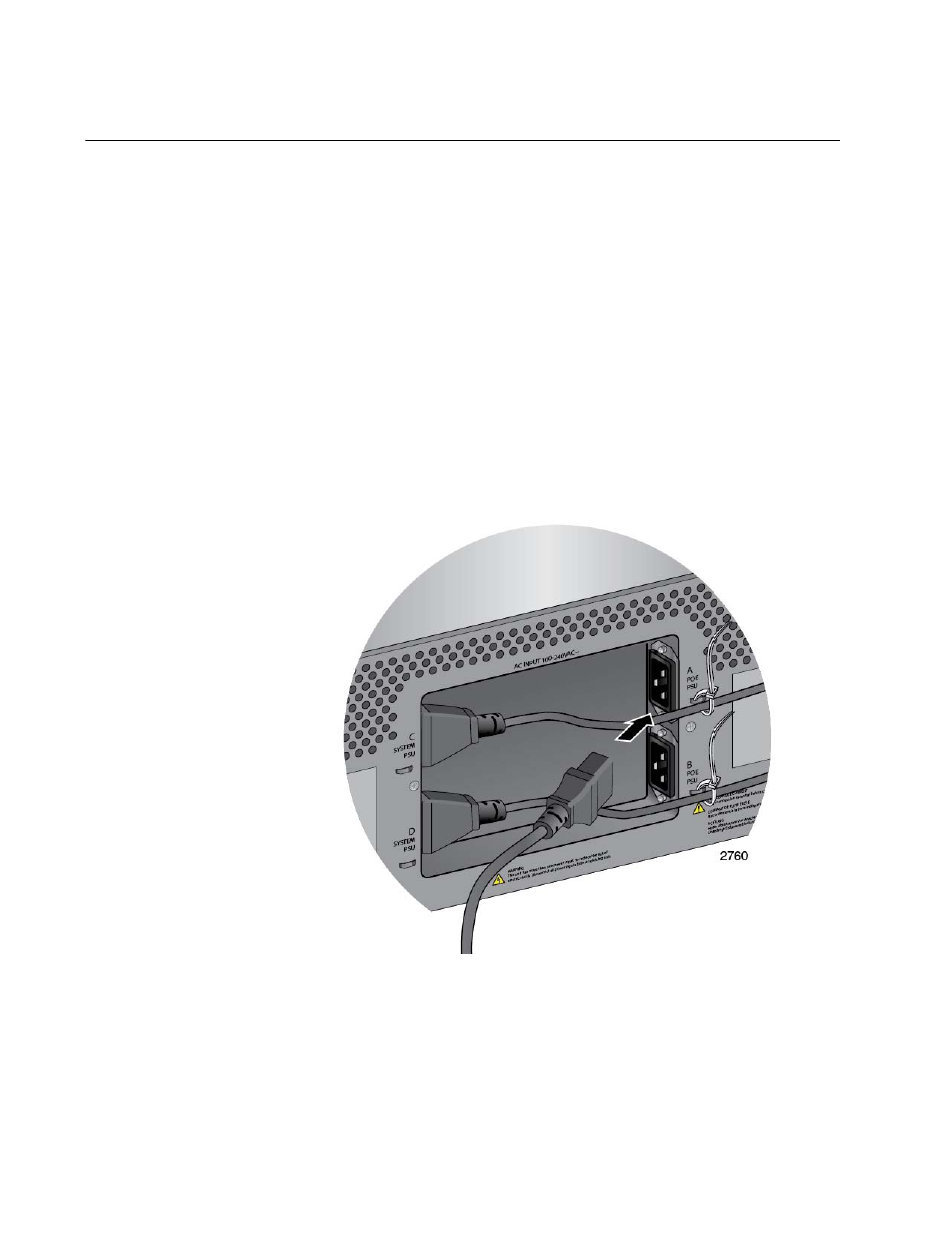

Figure 116. Connecting the AC Power Cord for the AT-SBxPWRPOE1
Power Supply
