Allied Telesis AT-SBx81CFC960 User Manual
Page 160
Chapter 8: Installing the Transceivers and Cabling the Ports
160
Section II: Installing the Chassis

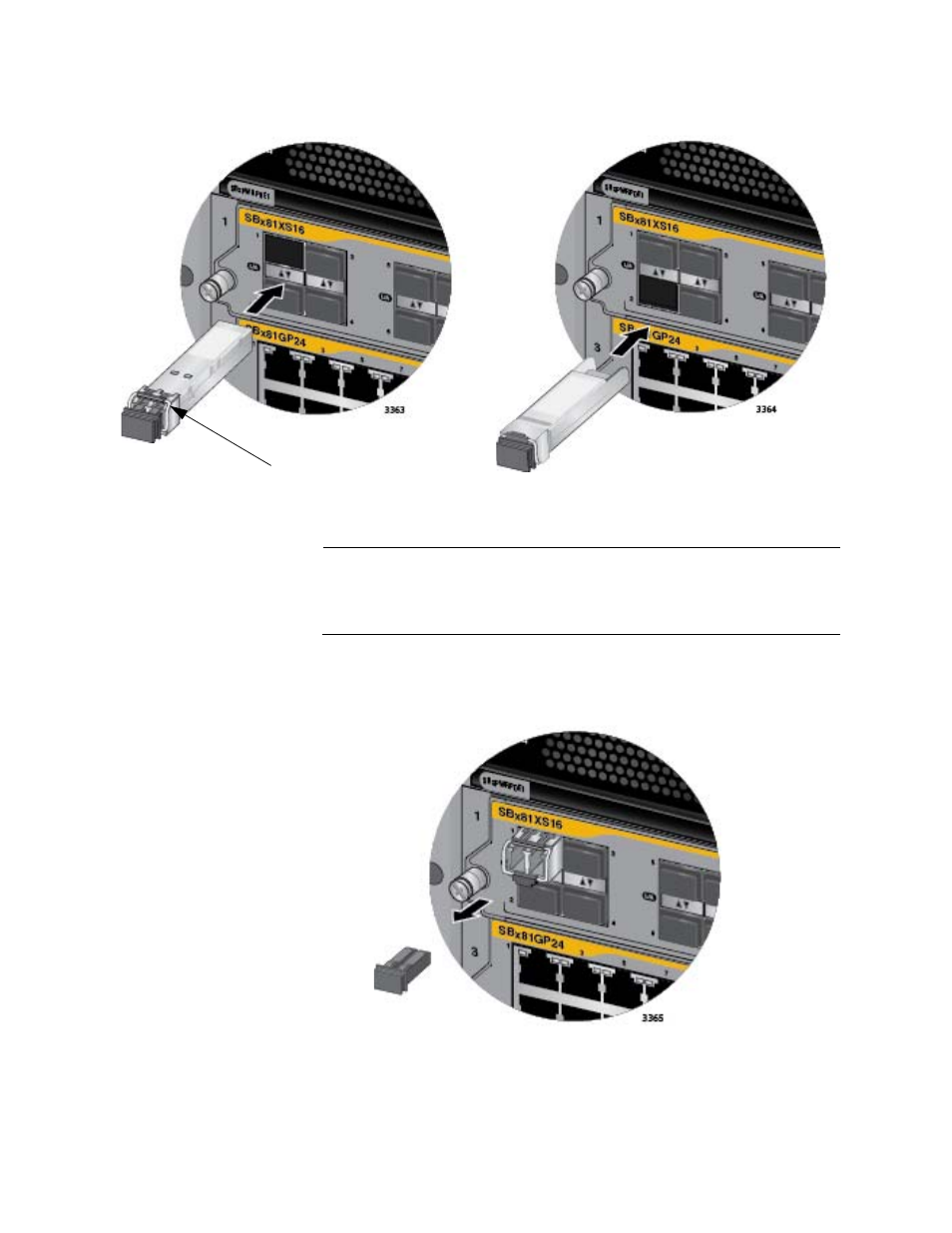

Figure 101. Installing a Transceiver in the AT-SBx81XS16 Line Card
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 2 to install
the remaining SFP transceivers in the line cards.
3. Remove the protective cover from the transceiver, as shown in
Figure 102. Removing the Dust Cover from a Transceiver in the AT-
SBx81XS16 Line Card
Handle
