Chapter 8: Installing the Transceivers and Cabling the Ports
168 Section II: Installing the Chassis
2. If you are installing the SFP+ transceiver in slot 1 or 3, orient it with the
handle on top, as shown in Figure 108. To install it in slot 2 or 4, orient
it with the handle on the bottom.

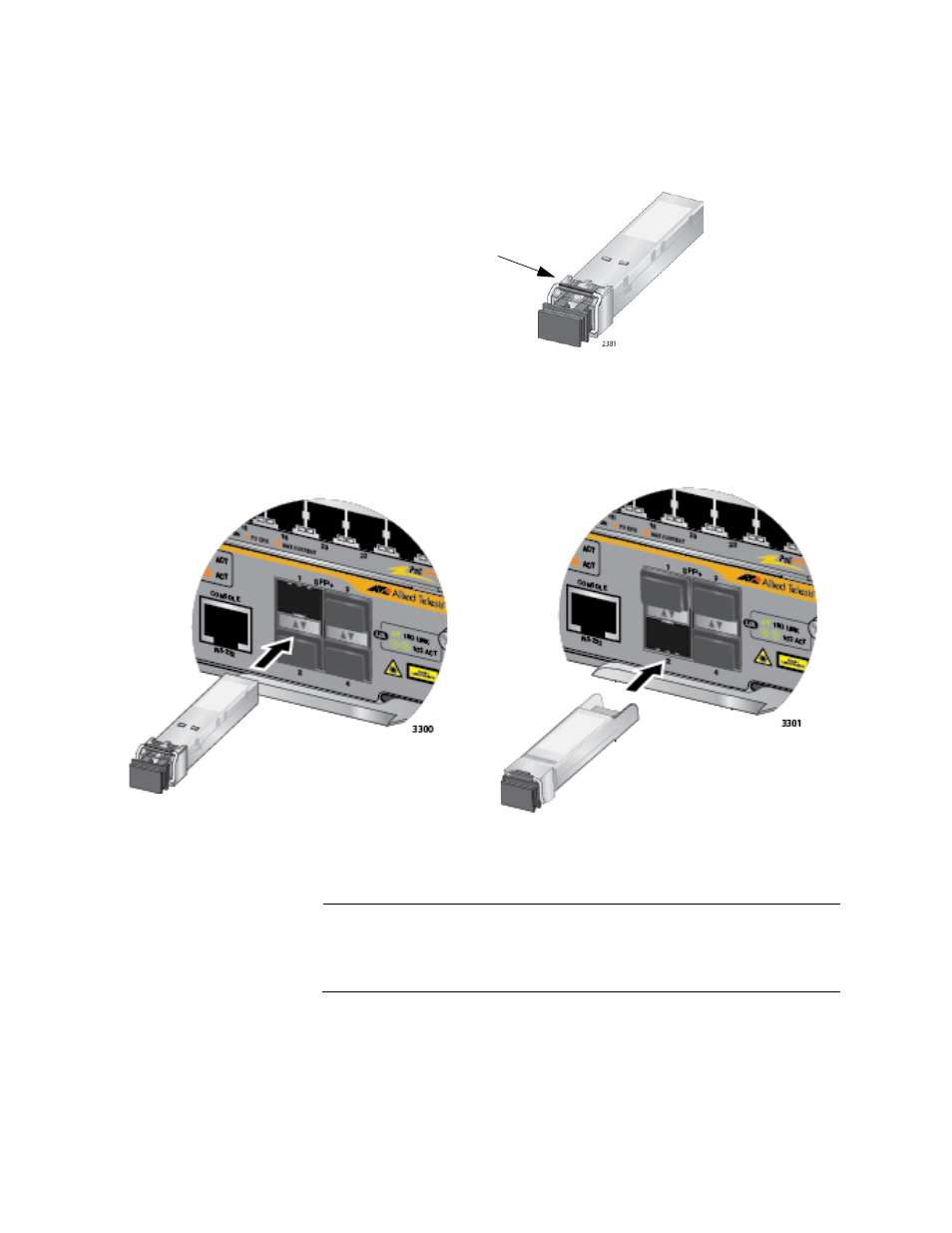

Figure 108. Handle on an SFP+ Transceiver
3. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 109.
Figure 109. Installing an SFP+ Transceiver in the AT-SBx81CFC960
Controller Fabric Card
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 3 to install
additional SFP+ transceivers in the card.
4. Remove the protective cover from the STP+ transceiver, as shown in
Figure 110 on page 169.
Handle
