PowerFlex 40 and 400 Drive Control Logic
7 F232120 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Electrical Interference
EMI
Careful attention must be given to the arrangement of
power and ground connections to the drive to avoid
interference with nearby sensitive equipment. Be sure
to replace all ground connections to their appropriate
locations.
RFI
Drives can be installed with an RFI filter, which
controls high-frequency conducted emissions into the
main supply lines.
Where it is essential that very low emission levels
must be achieved or if conformity with standards is
required, the optional RFI filter may be present.

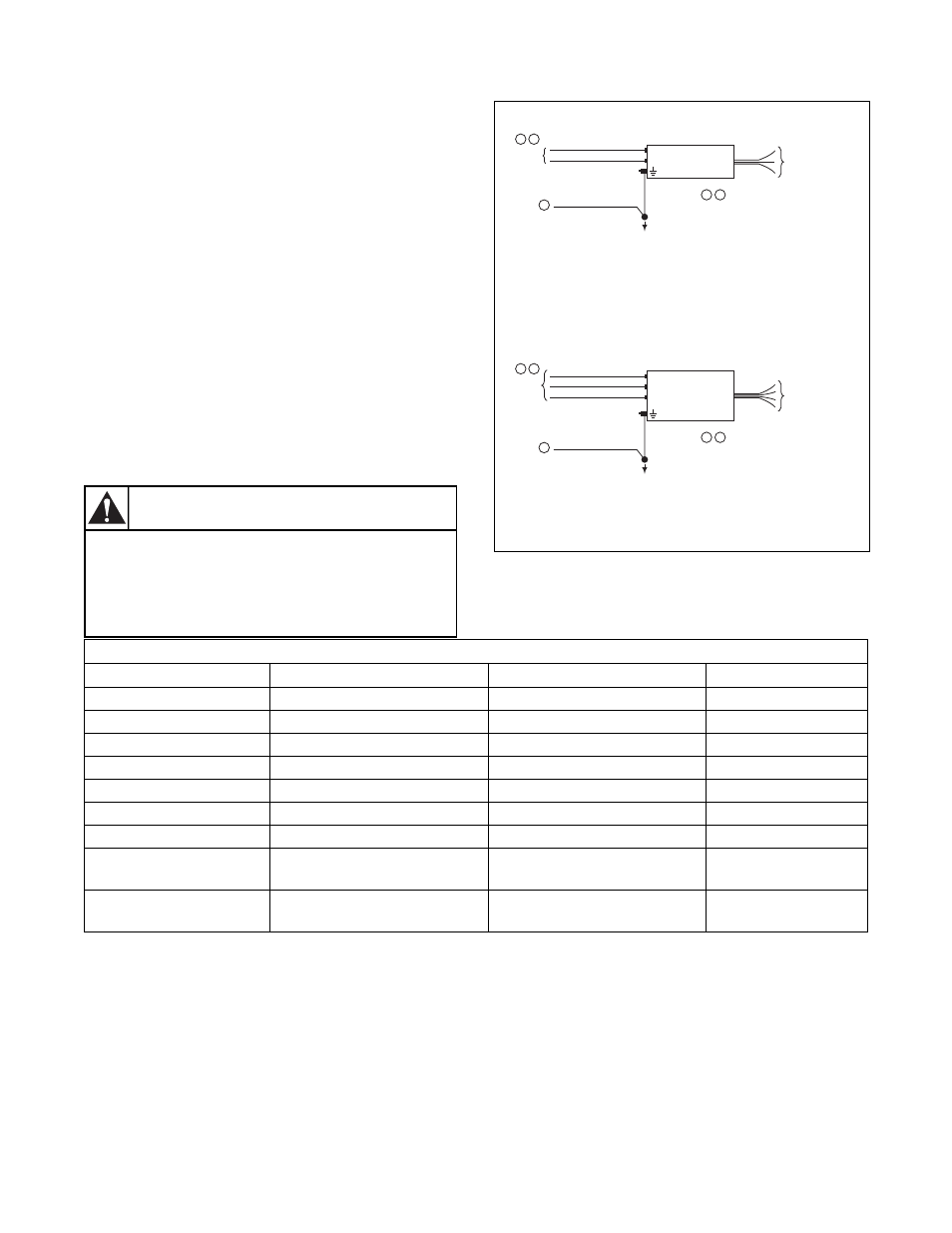

Figure 5 displays an electrical schematic for various
RFI configurations. Table 2 shows associated RFI
filter part numbers.
Figure 5
CAUTION
ELECTRIC SHOCK HAZARD! Service and
maintenance to be performed only by an
authorized technician. Disconnect power
before opening any access panels.
W661
U166ME3A
L1
TO AC DRIVE UNIT Ð
GREEN-YELLOW WIRE MUST CONNECT TO
AC DRIVE GROUND TERMINAL.
BLACK WIRES WILL CONNECT TO AC DRIVE
INPUT TERMINALS "R", "S" & "T".
BLACK WIRES ARE NOT LABELED AND THEIR
RESPECTIVE TERMINATION IN AC DRIVE IS
NOT OF IMPORTANCE.
L2
ALLEN-BRADLEY
RFI
FILTER
L3 LINE
LOAD
PROVEN EARTH GROUND
WASHING
MACHINE
GROUNDING
TERMINAL
THREE PHASE MACHINES
INPUT
POWER
1 2
3
2 3
L1
TO AC DRIVE UNIT Ð
GREEN-YELLOW WIRE MUST CONNECT TO
AC DRIVE GROUND TERMINAL.
BLACK WIRES WILL CONNECT TO AC DRIVE
INPUT TERMINALS "R", "S" & "T".
BLACK WIRES ARE NOT LABELED AND THEIR
RESPECTIVE TERMINATION IN AC DRIVE IS
NOT OF IMPORTANCE.
L2
ALLEN-BRADLEY
RFI
FILTER LINE LOAD
PROVEN EARTH GROUND
WASHING
MACHINE
GROUNDING
TERMINAL
SINGLE PHASE MACHINES
INPUT
POWER
1 2
3
2 3
U166ME3A
RFI Filter Part Number Information
Drive P/N Drive Catalog Machine Voltage Filter P/N
F8044301 and F8168603 22B-B017N104xx 200-240V 50-60Hz 3 phase F8053901
F8044401 and F8168604 22B-D010N104xx 380-480V 50-60Hz 3 phase F8053902
F8044701 and F8168601 22B-B012N104xx 200-240V 50-60 Hz 3 Phase F8053901
F8044901 and F8168602 22B-D6P0N104xx 380-480V 50-60 Hz 3 Phase F8053902
C002501 and F8168701 22B-B024N104xx 200-240V 50-60 Hz 3 Phase F8054001
C002502 and F8168702 22B-D012N104xx 380-480V 50-60 Hz 3 Phase F8054002
C002507 and F8168705 22B-D024N104xx 380-480V 50-60 Hz 3 Phase C002569
C002502, F200309300
and F8168703
22B-B033N104Axx 200-240V 50-60Hz 3 phase F8054001
C002506, F200309400
and F8168704
22B-D017N104Axx 380-480V 50-60Hz 3 phase F8054002
Table 2
