Allen-Bradley 1336-Series AC Drives
F232120
86
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Terminal Block Access
The following information illustrates the terminal
block designations for each of the drive models.
To access the power and control terminal blocks,
perform the following procedure:
1. Remove power from machine at main
disconnect. Verify power light is off.
2. Loosen the front cover fastener located at the
base of the front cover. Refer to Figure 48.
3. Lift off cover.
NOTE: HIM unit extension unit cable inserts into
separate port for 1305 and 1336 A-B drives.

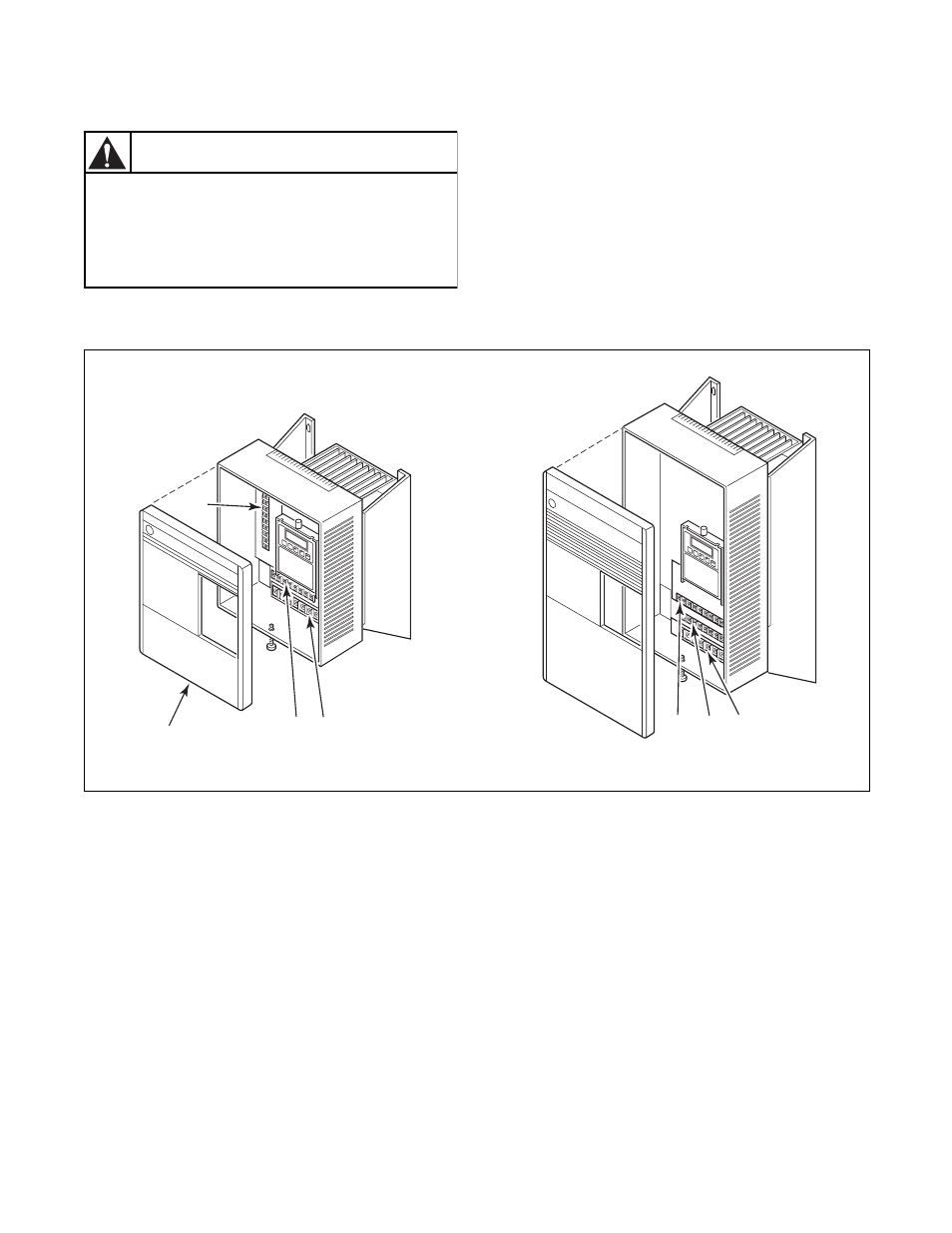

Figure 48
WARNING
To reduce risk of electric shock, severe
injury or death, allow machine power to
remain off for three minutes minimum prior
to working in and around AC drive. Proceed
with caution.
W662
Front Cover
TB3
TB2 TB1
TB3 TB2 TB1
ES
C
SE
L
Stopped
+0.00 Hz
ES
C
SE
L
Stopped
+0.00 Hz
U077ME3B
A-B 1336
A-B 1336
