Electrical Interference
EMI
Careful attention must be given to the arrangement of
power and ground connections to the drive to avoid
interference with nearby sensitive equipment. Be sure
to replace all ground connections to their appropriate
locations.
RFI
Drives can be installed with an RFI filter, which
controls high-frequency conducted emissions into the
main supply lines.
Where it is essential that very low emission levels
must be achieved or if conformity with standards is
required, the optional RFI filter may be present.

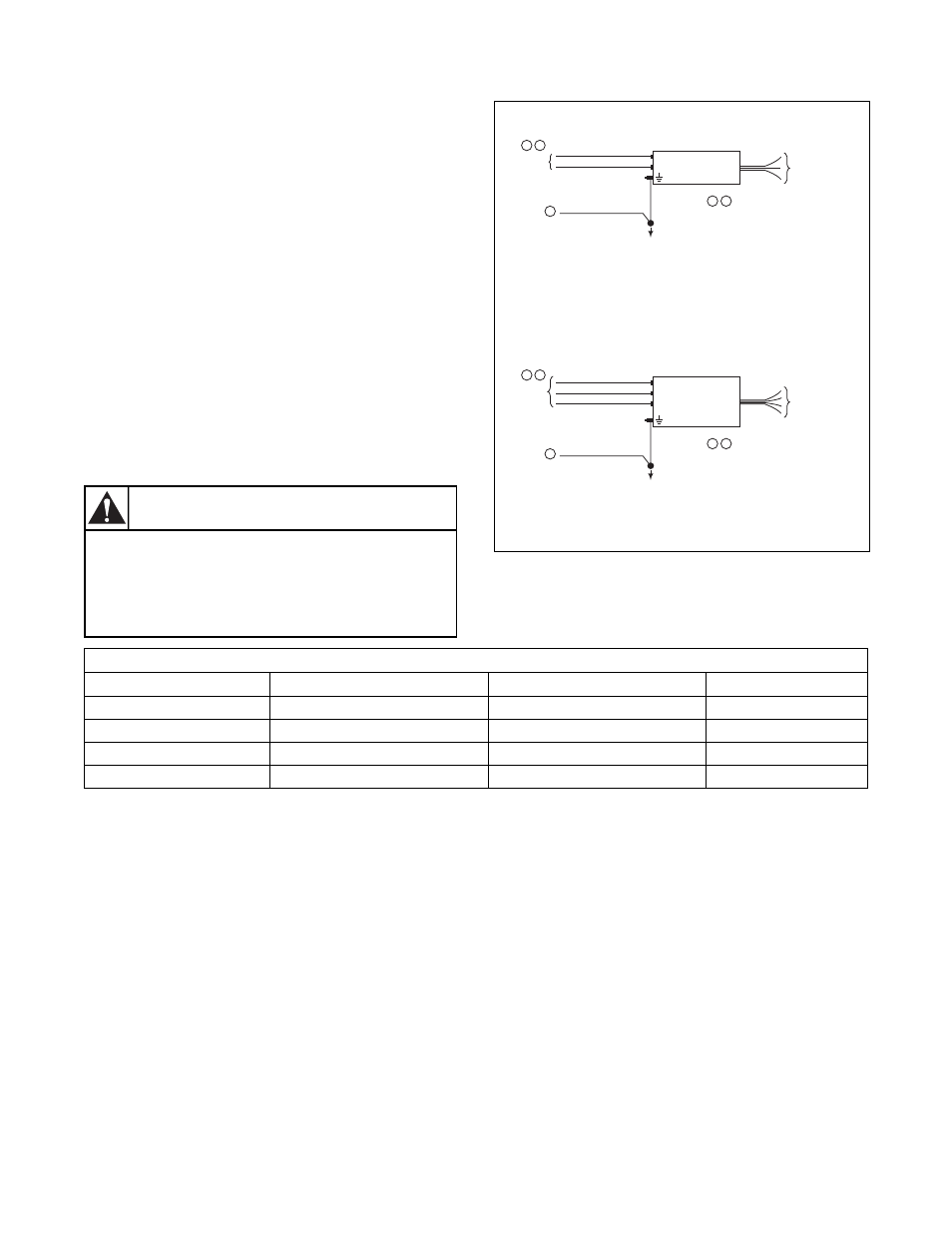

Figure 37 displays an electrical schematic for various
RFI configurations. Table 39 shows associated RFI
filter part numbers.
Figure 37
CAUTION
ELECTRIC SHOCK HAZARD! Service and
maintenance to be performed only by an
authorized technician. Disconnect power
before opening any access panels.
W661
U166ME3A
L1
TO AC DRIVE UNIT Ð
GREEN-YELLOW WIRE MUST CONNECT TO
AC DRIVE GROUND TERMINAL.
BLACK WIRES WILL CONNECT TO AC DRIVE
INPUT TERMINALS "R", "S" & "T".
BLACK WIRES ARE NOT LABELED AND THEIR
RESPECTIVE TERMINATION IN AC DRIVE IS
NOT OF IMPORTANCE.
L2
ALLEN-BRADLEY
RFI
FILTER
L3 LINE
LOAD
PROVEN EARTH GROUND
WASHING
MACHINE
GROUNDING
TERMINAL
THREE PHASE MACHINES
INPUT
POWER
1 2
3
2 3
L1
TO AC DRIVE UNIT Ð
GREEN-YELLOW WIRE MUST CONNECT TO
AC DRIVE GROUND TERMINAL.
BLACK WIRES WILL CONNECT TO AC DRIVE
INPUT TERMINALS "R", "S" & "T".
BLACK WIRES ARE NOT LABELED AND THEIR
RESPECTIVE TERMINATION IN AC DRIVE IS
NOT OF IMPORTANCE.
L2
ALLEN-BRADLEY
RFI
FILTER LINE LOAD
PROVEN EARTH GROUND
WASHING
MACHINE
GROUNDING
TERMINAL
SINGLE PHASE MACHINES
INPUT
POWER
1 2
3
2 3
U166ME3A
RFI Filter Part Number Information
Drive P/N Drive Catalog Machine Voltage Filter P/N
370815 1305-AA12 200-240V/1 Phase Not Available
370815 1305-AA12 200-240V/3 Phase 330272
370816 1305-BA06 380-480V/3 Phase 330271
370818 1305-BA09 380-480V/3 Phase 330272
Table 36
