Allen-Bradley 160-Series AC Drives
F232120 52 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

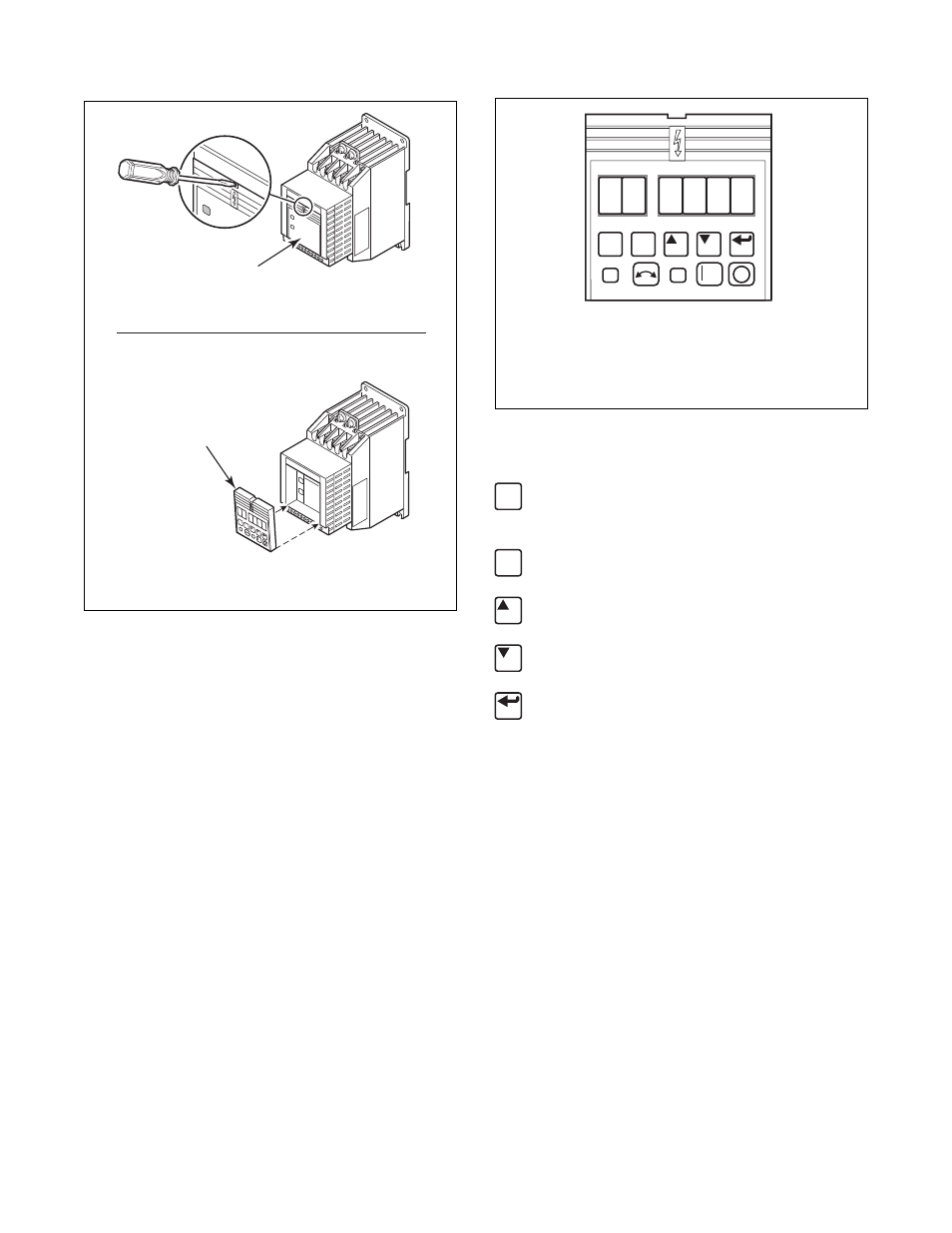

Figure 30
Program Keypad Module (PKM) Operation
The PKM contains a six-digit display on the front. The
parameter number is displayed as the left two digits
and the value obtained from the right four digits
(Figure 31).
Figure 31
PKM – Key Explanation
Escape key. Use to return to last or original
position.
Select key. Use to move cursor position.
Up arrow key. Scroll up.
Down arrow key. Scroll down.
Enter key. Use to enter program selection or new
parameter value.
The PKM displays two groups of parameters: display
and program. The parameters are listed in . The
Display Group shows commonly viewed conditions
that are helpful for troubleshooting problems. The
Program Group contains parameters used to match the
drive to a particular motor and application.
FAULT
READY
FA
ESC
SEL
3 0.
0. 0
Status Display Cover
Program
Keypad Module
(PKM)
U090ME3A
STATUS DISPLAY COVER
ESC SEL
3 0. 0. 0
U091M
PROGRAM KEYPAD MODULE
(PKM OR PARAMETER UNIT)
ESC
SEL
