Allen-Bradley 160-Series AC Drives
F232120 54 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
CopyCat Keypad
(For use with A-B 160 Series C Drives
P/N F370843, F370844, and
F370853 – F370858)
The operation of the CopyCat Keypad requires the
installation of the 160 Series C Parameter Unit Kit
(F798751). The kit includes the following parts.
Remote Programming Adapter (RPA)
Installation/Removal
Installing the RPA
1. Remove power from machine at main
disconnect. Delay for approximately three
minutes.
2. Insert a small screwdriver into slot, pry back, and
remove status display cover.

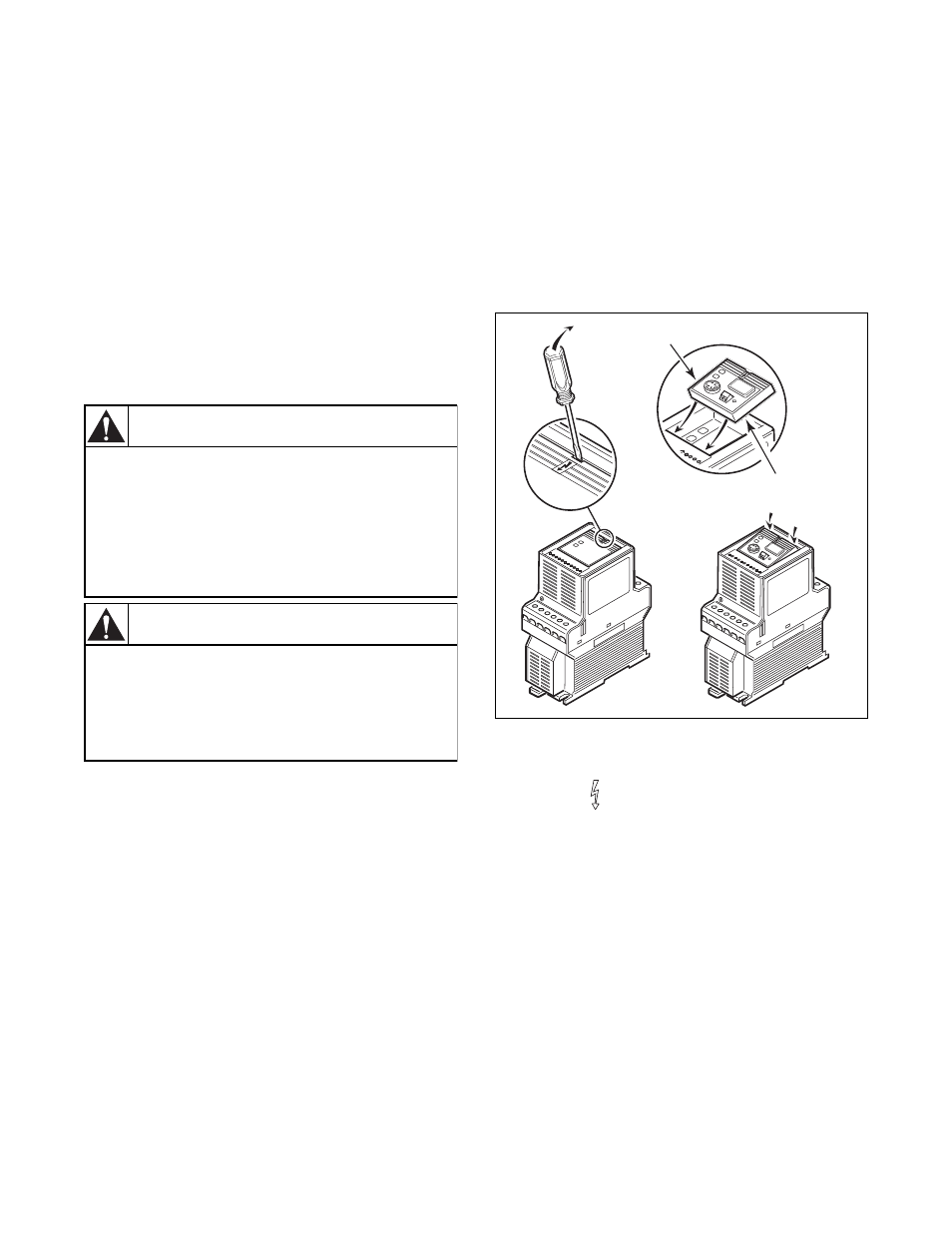

Refer to Figure 32.
Figure 32
3. Insert the RPA bottom end first and then press the
symbol at the top of the adapter until its face
is flush with the edges of its surrounding case.
F370733 – Remote Programming Adapter
(RPA)
F370732 – Connector Cable (Note: This cable
is different than P/N F370716 used
with the HIM units on the 1305 and
1336 Model Drives).
F370734 – CopyCat Keypad
CAUTION
Users are prohibited from changing
parameter values unless specifically
instructed by the washer-extractor
manufacturer. Modification to parameter
values may present potential harmful
operating conditions for both hardware and
personnel.
W673
WARNING
To reduce risk of electric shock, severe
injury or death, allow machine power to
remain off for three minutes minimum prior
to working in and around AC drive. Proceed
with caution.
W662
U/T1 V/T2
W/T3 DC-
DC+
FA ULT RE AD Y 1 2
11 10 9 8 7 6 5 4 3
U/T1 V/T2
W/T3 DC- DC+
1 2
11 10 9 8 7 6 5 4 3
FAU LT RE AD Y Re m ote Pro gra m Ad ap to r
U167ME3A
LT
11 10 9 8 7 6 5 4
FAULT
READY Remote Program Adaptor
Contact Pins
(underneath)
RPA
