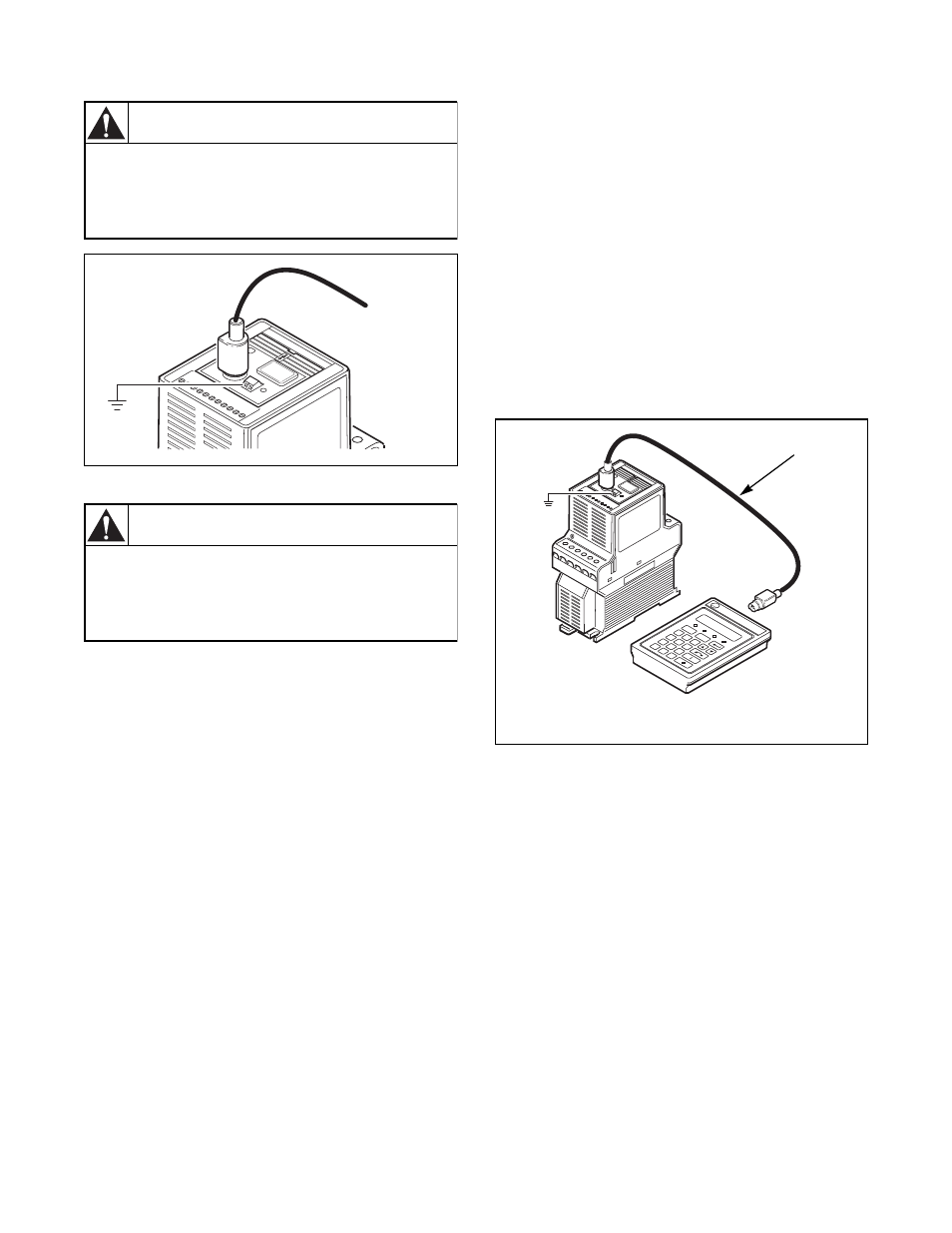

Figure 33
Removing the RPA
1. Remove power from machine at main
disconnect. Delay approximately three minutes.
2. Insert small screwdriver into slot, pry back, and
pivot module out. Avoid bending or twisting
contact pins located underneath center portion of
the module. Refer to Figure 32.
3. Reinstall the status display cover.
Connector Cable
To remove the cable from the drive or the CopyCat
Keypad, pull back on the plastic housing of the cable
connector. Refer to Figure 34. The connector cable has
a locking mechanism to ensure the cable will not be
accidentally disconnected.
Figure 34
CAUTION
It is required that the RPA be earth grounded
to improve noise immunity and to guard the
CopyCat Keypad against hazardous DC bus
potential voltages.
W667
U168M
FA
UL
T
RE
AD
Y
1 2
11
10
9
8
7
6
5
4
3
Remote
Program
Adaptor
WARNING
A hazard of electric shock exists if the RPA
is not tied to earth ground. Failure to
provide an earth ground connection can
result in severe personal injury or death.
