3-4
Maintain the ink system
HP Designjet 5100 printer Customer Reference Guide

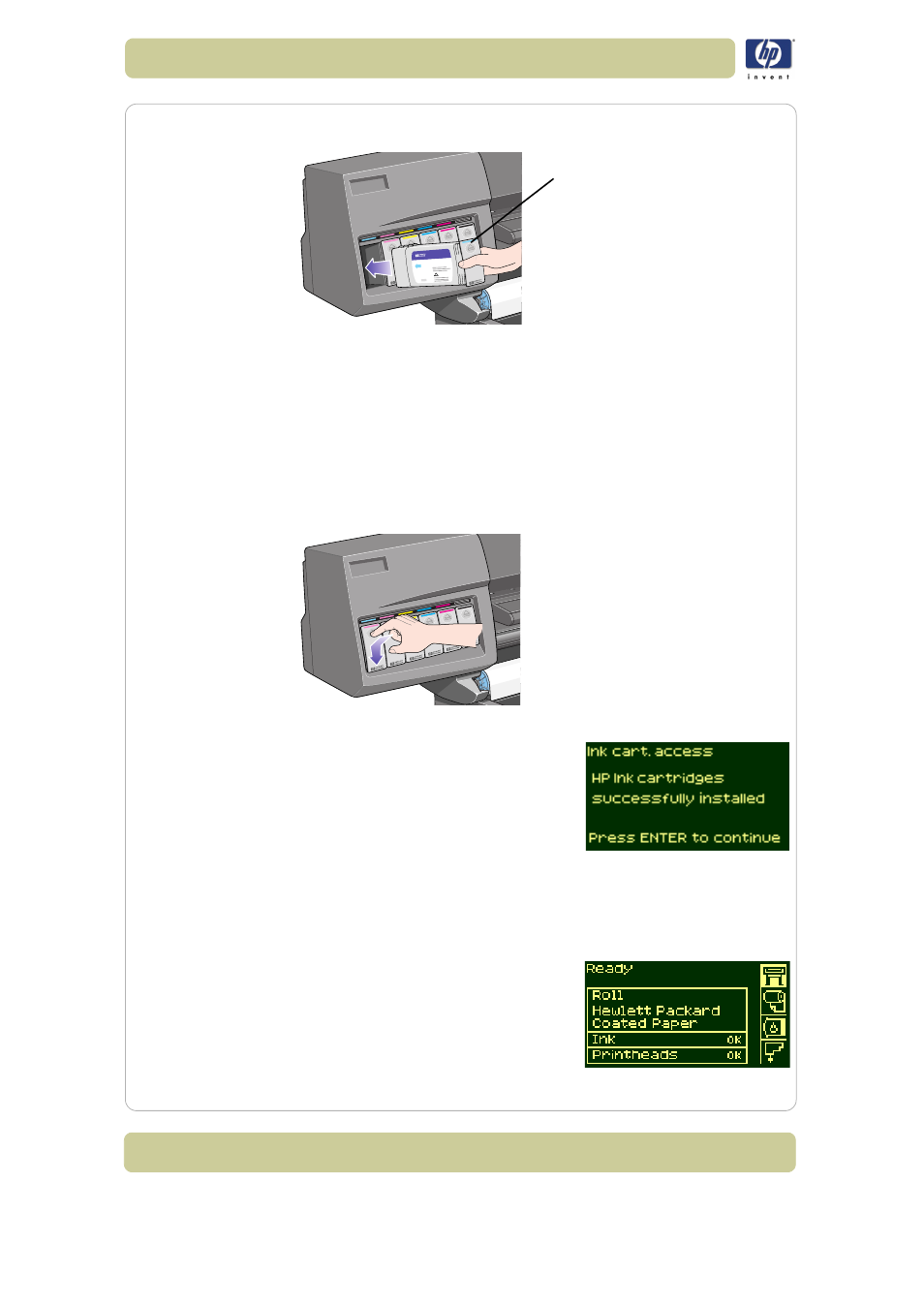

2 Insert the ink cartridge into the ink cartridge slot labelled with the same
color.
NOTE: The ink cartridge is designed to prevent you from inserting the
wrong ink type or into the wrong color slot. If you have difficulty inserting the
ink cartridge, do not attempt to force it. Check again that the color of the ink
cartridge matches the color of the ink cartridge slot, also that the colored
marker is at the top of the ink cartridge.
3 Slide the ink cartridge into the slot until you feel some resistance, then stop.
4 Press firmly using the dimpled recess on the front of the ink cartridge,
inwards and then downwards, as indicated by the arrow shown below, until
the ink cartridge clicks into place.
5 The front panel displays:
6 Press the Enter key to continue.
NOTE: Avoid storing partially used ink cartridges on their ends.
Printhead statistics
1 To get information on your printheads,
press the Top key on the front panel to go
to the top of the menu system.
Color identifier
at the top of the
ink cartridge
