Load and unload material
HP Designjet 5100 printer Customer Reference Guide
spindle to hold rolls of different widths.

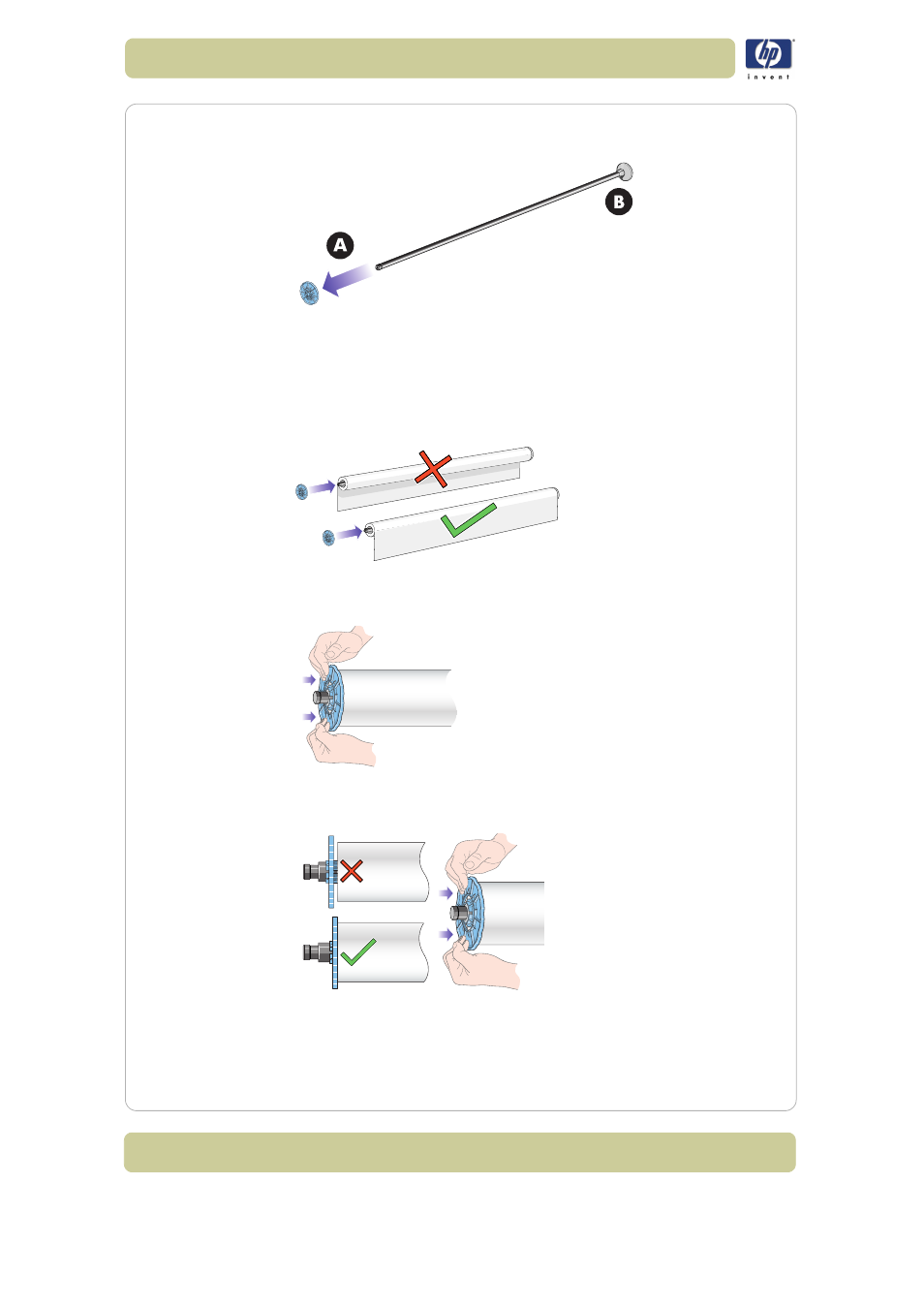

3 Remove the removable stop (A) from the left-hand end of the spindle.
4 The roll may be very long; rest the spindle horizontally on a table and load
the roll on the table. Bear in mind that you may need two people to handle
it.
5 Slide the new roll onto the spindle. Make sure the printing material is
oriented as shown. If it is not, remove the roll, turn it 180 degrees and slide
it back on to the spindle.
6 Put the removable stop on to the upper end of the spindle, and push it
towards the end of the roll.
7 Ensure the spindle guide is pushed in as far as it will go, without using
excessive force.
8 With the movable roll stop on the left, slide the spindle into the printer left
and then right as shown by the arrows A and B.
