2-10
Load and unload material
HP Designjet 5100 printer Customer Reference Guide
core must be the same length as the roll you are using.

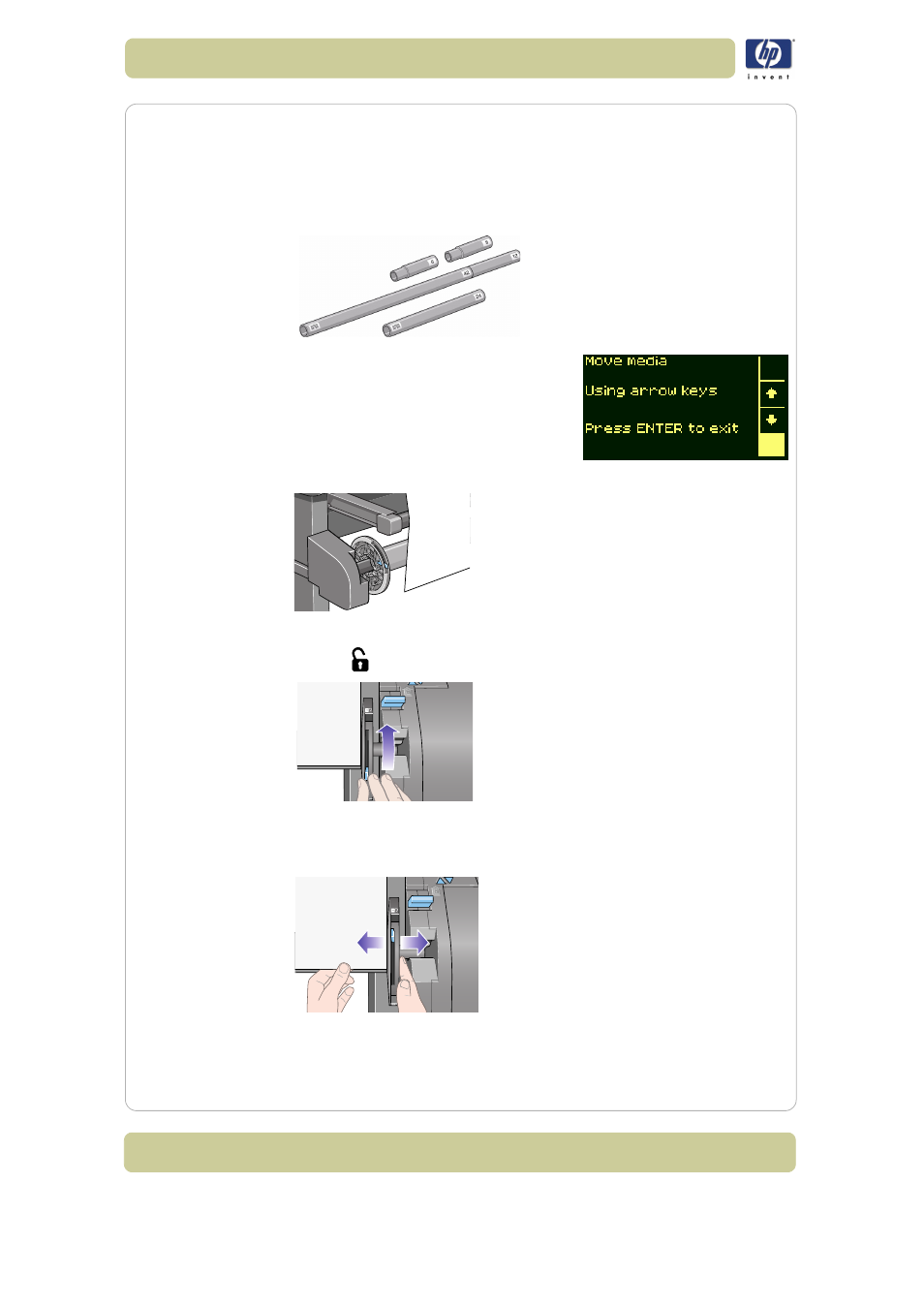

Plastic tube core
By matching color coded lengths of plastic tube, you can make a core tube
for different roll sizes.
1 Use the
↓
key to move the leading edge of
the printing material down until it is level
with the centre of the core tube.
2 Make sure the printing material passes in
front of the deflector, as shown.
3 Move the adjustment levers on the left and right paper guides to the
unlocked position.
4 The two spindle guides and core must be positioned on the take-up reel
spindle so that the roll is in the center, between the spindle guides. Adjust
the position of the core as shown.
