Page 87
5.
When you install a new interface controller, you must use a different power-on procedure one time:
a. Turn on the power to the library.
b. Wait approximately two minutes and turn off the power to the library.
c. Wait several seconds and turn on the power to the library again.
NOTE:
This power-on procedure is performed to allow the Interface Manager card time to
configure the interface controller. Once configured, the interface controller is reset
(powered off and on) to allow the new settings to take effect.
6.
Make sure the power LED and link LEDs on the interface controller are solid green. The link LEDs
indicate a good connection (see “
HP StorageWorks e2400-FC 2Gb interface controller
7.
Use the Interface Manager CLI or the HP StorageWorks Command View TL to make sure that the new
interface controller is detected, and to perform configuration and firmware updates, if necessary.
HP StorageWorks e2400-FC 4Gb interface controller
Part number
379584-001 or 415802-001
Location
In the middle slot in the base-module card cage or in any slot in
the card cage expansion module
Characteristics
Contains two HBA or switch FC ports, four tape drive FC ports,
one Ethernet port, and one serial port
Function
Manages up to four LTO2 or LTO3 tape drives and provides
bidirectional connectivity for 4 Gbps FC interfaces

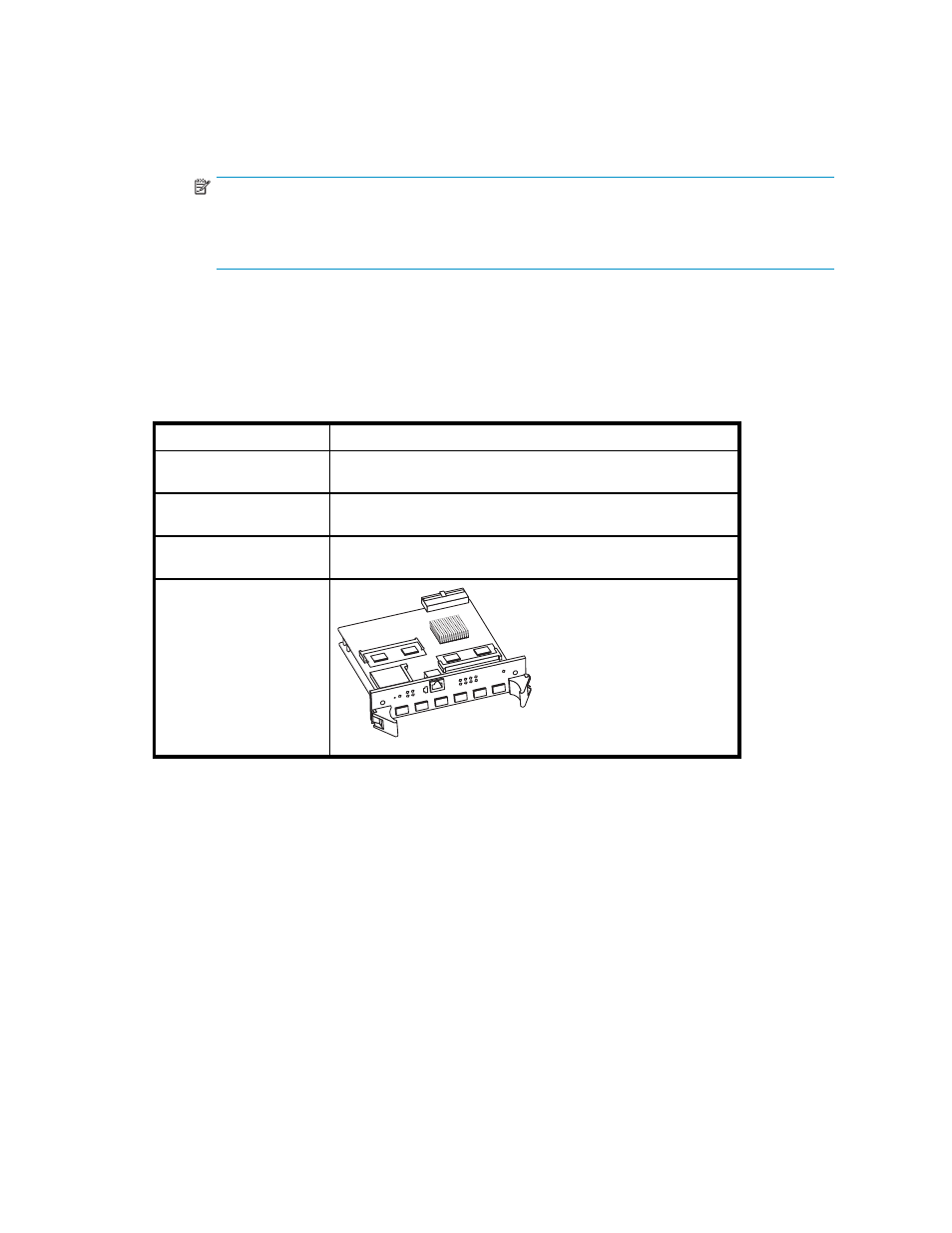

Illustration
10971
Required tools
•
#1 Phillips screwdriver
Removing an e2400-FC 4Gb interface controller
1.
Identify the e2400-FC 4Gb interface controller to be replaced by one of the following methods:
• The power LED is on and the ACT/LNK LEDs are off instead of green (see
HP StorageWorks e2400-FC 4Gb interface controller
• The power LED is off.
• You might need to find out which tape drives are connected to each interface controller to identify
which interface controller to replace.
2.
Use your backup software to stop all library activity and make sure the picker is empty.
3.
Turn off the power to the library.
Enterprise Modular Library E-Series
87
