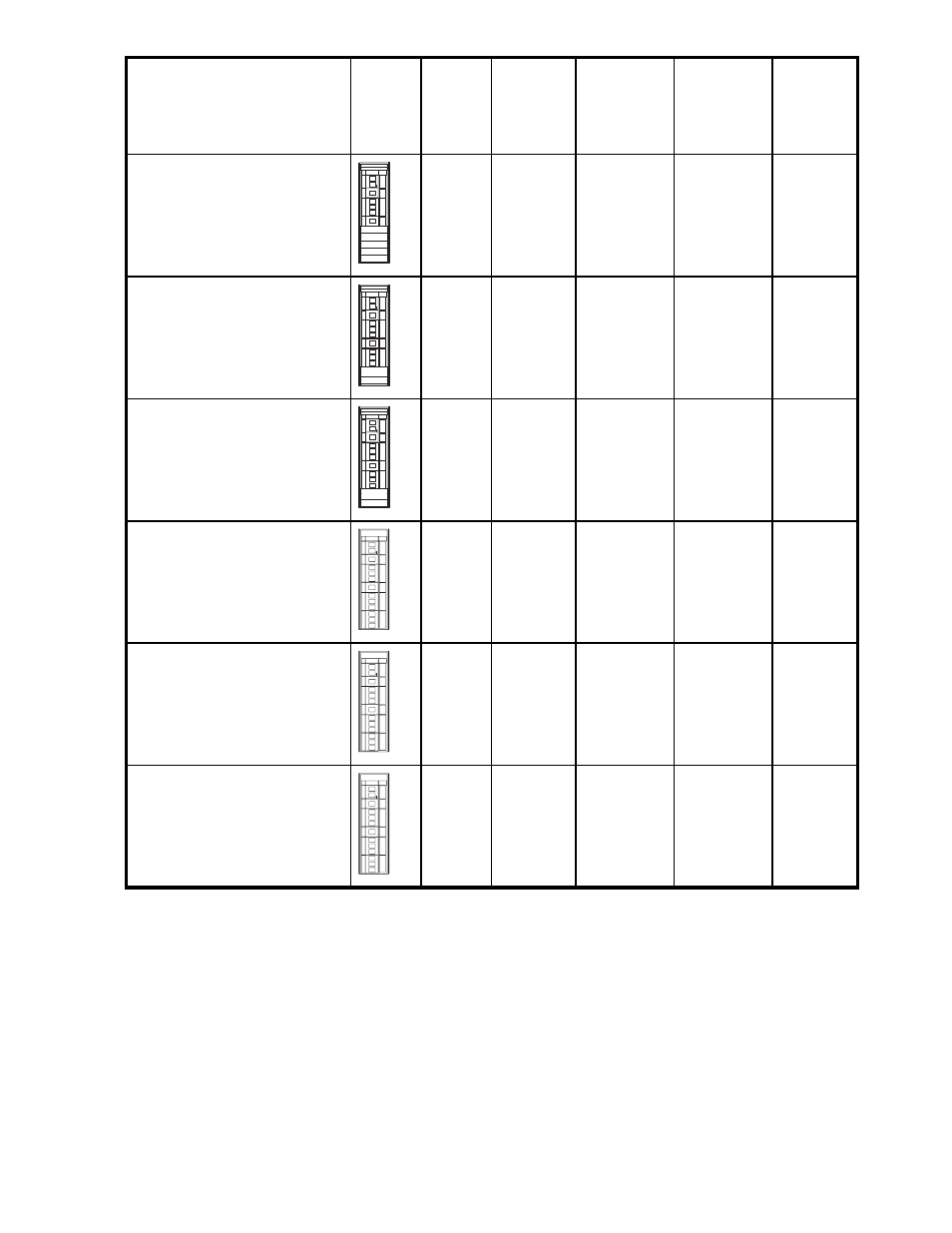

Configuration
Illustra-
tion
Height
in “U”
Maximum
slots
available
Config-
urable load
port slots
(in multiples
of 5)
Config-
urable re-
served slots
Number
of
possible
tape
drives
245e
nl 1 base module
nl 1 tape drive expansion module
nl 1 card cage expansion module
nl factory racked
10965
24 245 0–15 0–9 1–8
348e
nl 1 base module
nl 2 tape drive expansion modules
nl 1 card cage expansion module
nl factory racked
10966
32 348 0–25 0–9 1–12
375e
nl 1 base module
nl 1 tape drive expansion module
nl 1 card cage expansion module
nl 1 capacity expansion module
nl factory racked
10966
32 375 0–25 0–9 1–8
442e
nl 1 base module
nl 3 tape drive expansion modules
nl 1 card cage expansion module
nl factory racked
10963
40 442 0–35 0–9 1–16
469e
nl 1 base module
nl 2 tape drive expansion modules
nl 1 card cage expansion module
nl 1 capacity expansion module
nl factory racked
10963
40 469 0–35 0–9 1–12
505e
nl 1 base module
nl 1 tape drive expansion module
nl 1 card cage expansion module
nl 2 capacity expansion modules
nl factory racked
10963
40 505 0–35 0–9 1–8
Parts of the library
The following figures show the parts of a 469e library. See “ Available configurations ” on page 17.
