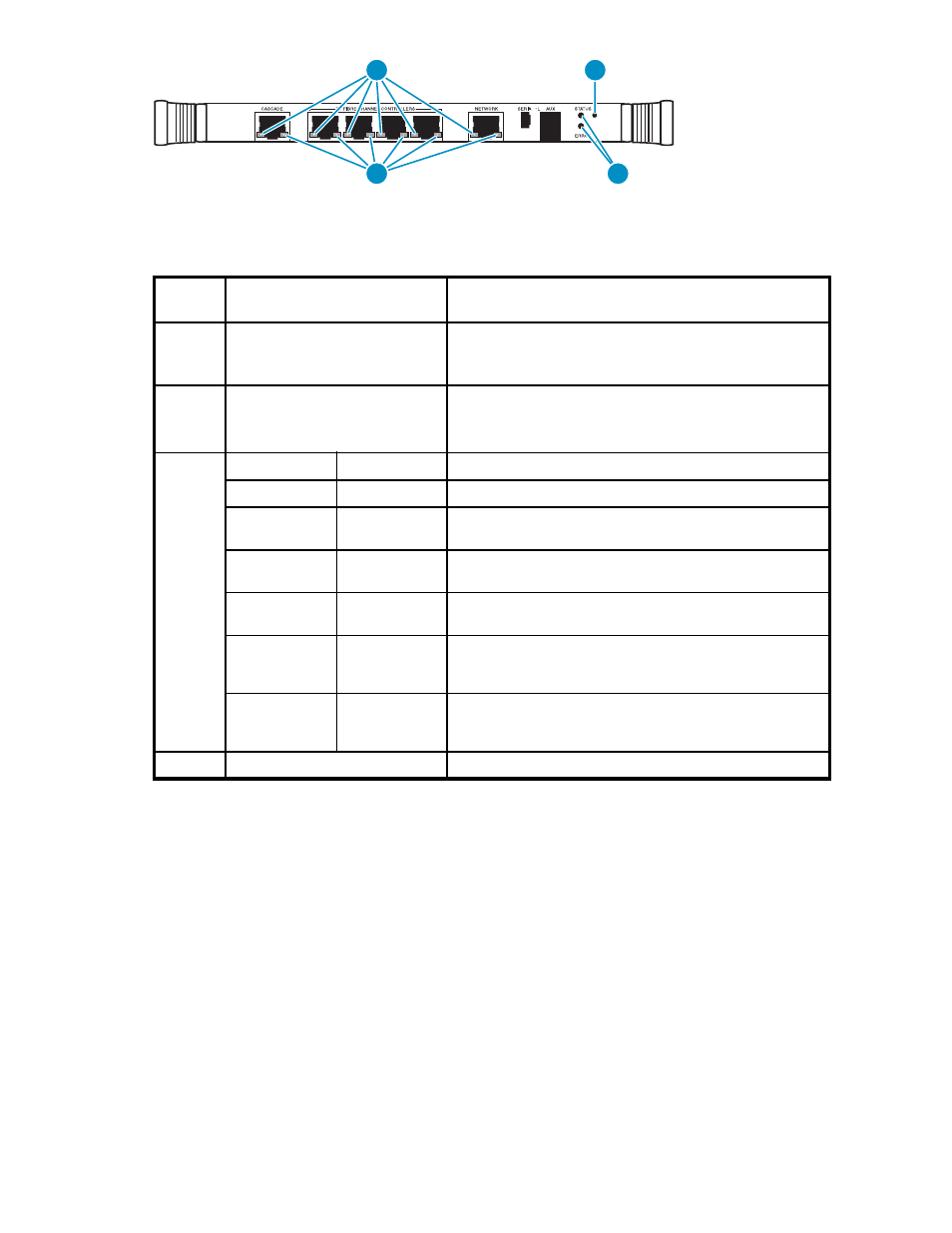

Figure 36 Indicators and reset on the Interface Manager card
Table 10 Indicators and reset on the Interface Manager card
Index
No.
Control/indicator Function
1 Green link speed LED
On—Port operating at 100 Mbps.
Off—Port is operating at 10 Mbps, or port is not connected
(see link activity LED).
2 Green link activity LED
Off—Port disconnected/no link.
On—Port connected to another Ethernet device.
Flashing—Data is being transmitted or received.
Red LED Green LED
On Off BIOS code failed to run.
Blinks 1x per 5
second interval
Off Hardware POST failed. No firmware images are loaded.
Blinks 2x per 5
second interval
Off No CompactFlash disk or valid boot sector image found.
Blinks 3x per 5
second interval
Off
Specified firmware image files cannot be found. Neither the
current nor the previous image was found.
Blinks 4x per 5
second interval
Off
Load or execute command failed (boot code remains at
end of process). This indicates that load, decompress, or
execution failed on both the current and previous image files.
3
Off
Blinks 1x per 5
second interval
Normal state. Load or execute command succeeded. Boot
code successfully loaded, decompressed, and initiated one
of the image files.
4 Reset hole To reset the card, insert a paper clip into the hole.
