HP EML E-series Tape Libraries - Manual (Page 34)

10439
1
2
3
4
9
5
6
7
1 1
2
3
4
5
6
1 1
7
8
9
2
3
4
5
6
2
3
4
5
6
7
8
9
2
3
4
5
6
1
2
1
2
8
8 9
10
1
11
14
12
13
7
2
3
6
5
4
1 Robot park zone 8 Expansion identification label
2 Array targets for the bar code scanner 9 Row numbering
3 Reserved slots—can be used for cleaning cartridges or data
cartridges.
10 Column numbering
4 Software demarcation between upper and lower modules for
slot counting purposes
11 Load port slots
5 Slots available for data cartridges 12 8U base module
6 Slots unavailable for use when the library floor is installed in
this module
13 4U base module
7 Tape drives 14 Tape drive numbering

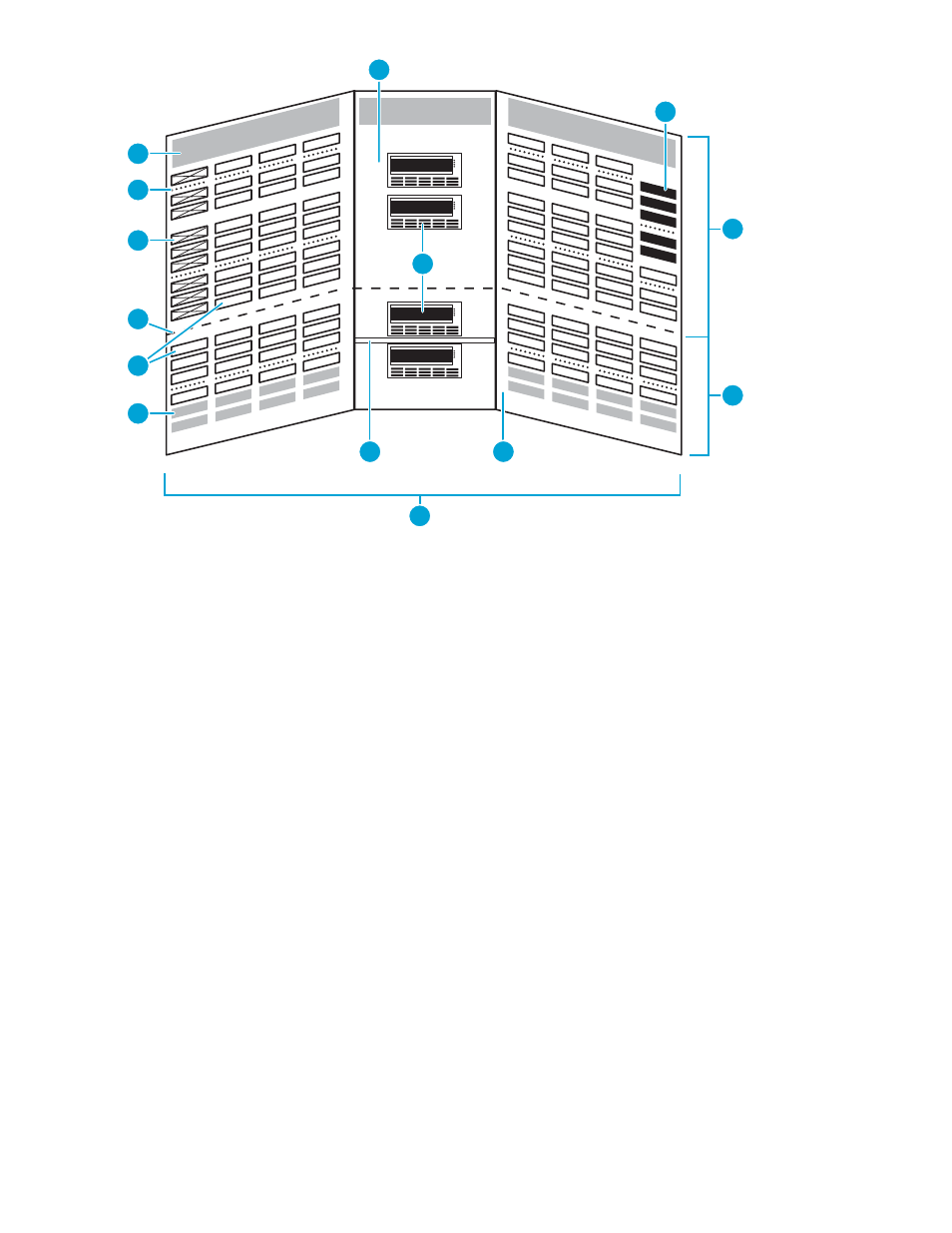

Figure 18 Slot numbering in the base module for all other EML configurations
34 Library overview
