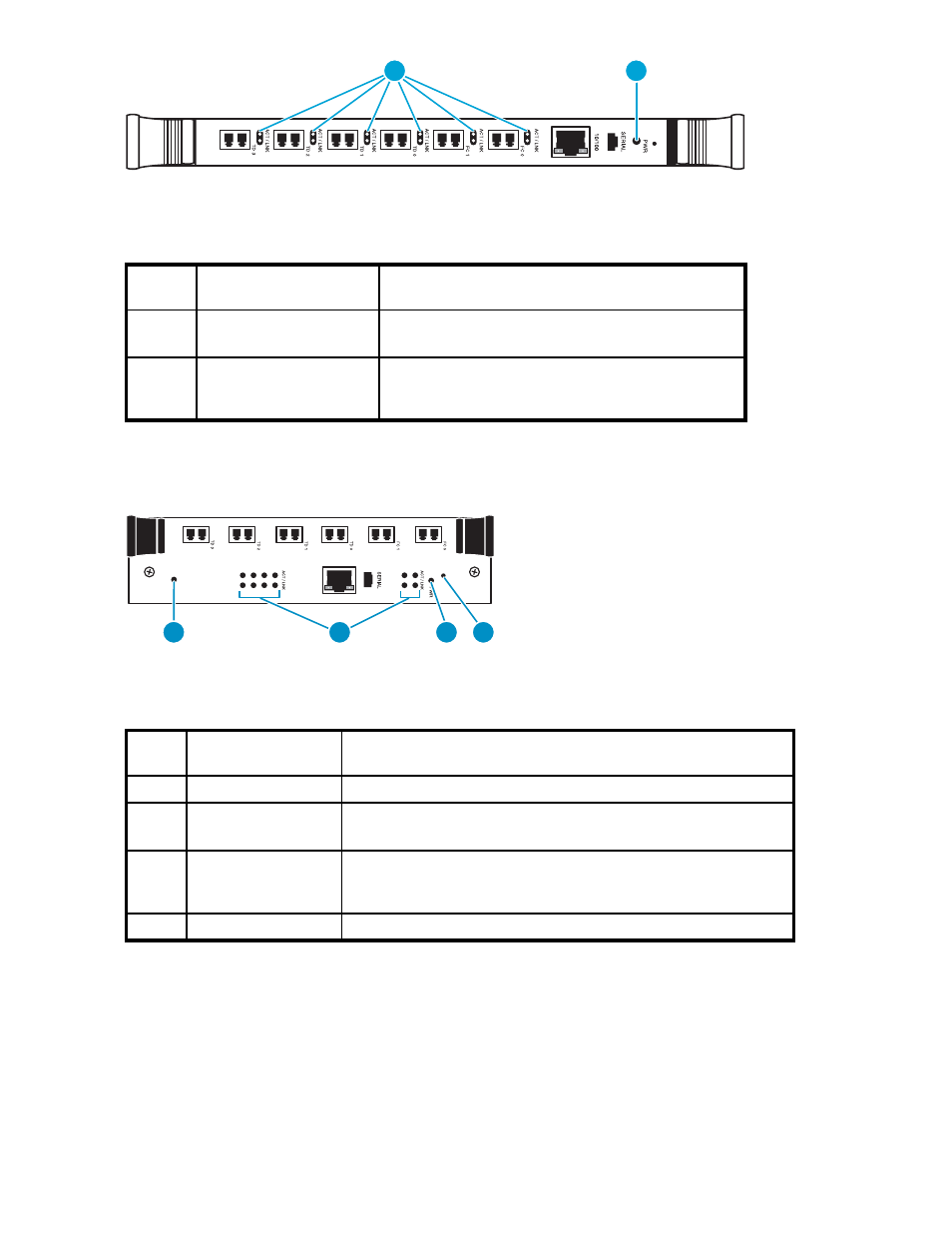

Figure 37 Indicators on the e2400-FC 2Gb interface controller
Table 11 Indicators on the e2400-FC 2Gb interface controller
Index
No.
Control/indicator Function
1 ACT/LNK indicators
ACT indicator—When lit, shows port activity.
nl LNK indicator—When lit, shows a valid link is established.
2 PWR indicator
When green, power is applied to the module.
When yellow, Power-On-Self-Test (POST) is in process or
processor problems exist.
HP StorageWorks e2400-FC 4Gb interface controller
10973
3 1 2 4
Figure 38 Indicators on the e2400-FC 4Gb interface controller
Table 12 Indicators on the e2400-FC 4Gb interface controller
Index
No. Control/Indicator Function
1 Beacon Use to locate the card.
2 ACT/LNK indicators
ACT indicator—When lit, shows port activity.
nl LNK indicator—When lit, shows a valid link is established.
3 PWR indicator
When green, power is applied to the module.
When yellow, Power-On-Self-Test (POST) is in process or processor
problems exist.
4 Reset hole To reset the card, insert a paper clip into the hole.
