Understanding Errors and Troubleshooting
Removing and Replacing Drive Modules
Chapter 4 4-57
E
rr
o
rs
&
T
roub
le
sh
oo
ti
ng
5. Lay the connector assembly to the side, allowing the external cables
to hang from the connection(s). Do not disconnect external cables
from the connector plate.
6. Loosen the top and bottom thumbscrews on the drive module
(Figure 4-3).
7. Using the handle that is mounted on the back of the drive module,
pull the drive module straight out with one hand while supporting
the bottom of the drive module with the other hand.
CAUTION As the drive module is pulled out, support the bottom of the drive module
to avoid dropping or damaging it.
NOTE Do not insert your hand or foreign objects through the empty drive bay
and into the vertical lift assembly area.

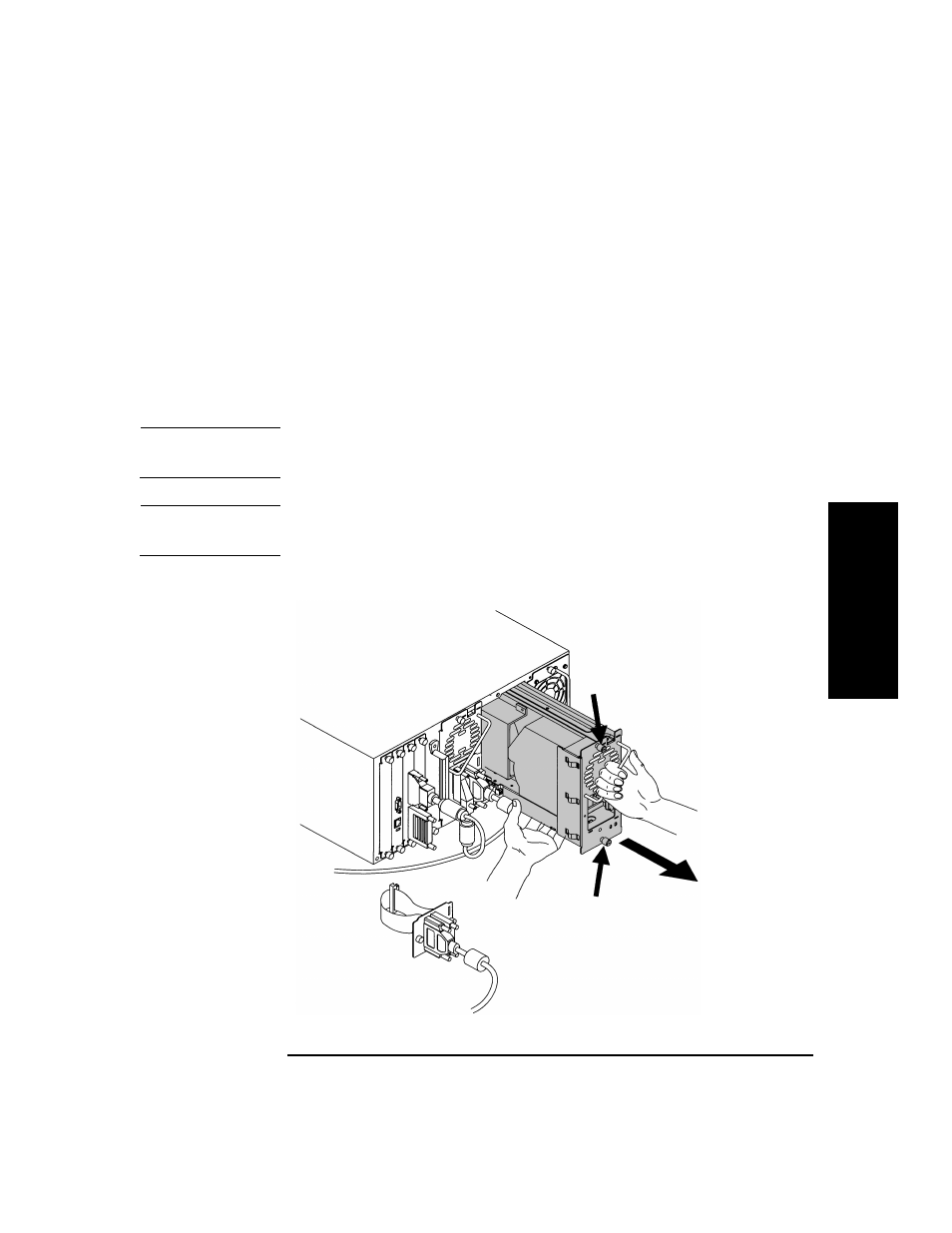

Figure 4-3 Removing a Drive
