SK 500E – Users Manual for Frequency Inverters
50 BU 0500 GB-1013
Terminal block X3, (above size 8: X3.1 and X3.2) - Relay
Relevance
SK 500E SK 505E SK 510E SK 511E SK 515E SK 520E SK 530E SK 535E
√ √ √ √ √ √ √ √
Terminals X3: 1 2 3 4
K1.1 K1.2 K2.1 K2.2 Name
Terminal Function
[Factory setting]
Data Description / wiring suggestion Parameter
1
2
Output 1
[Braking control]
Relay closing contact
230 VAC, 24 VDC,
< 60 VAC in circuits with
safe isolation,
≤ 2 A
Brake control
(closes on enabling)
P434
3
4
Output 2
[Ready/Fault]
Fault / Ready
(closes when FI ready / no fault)
P441
Pos : 58 /Anl eitungen/ Elektroni k/FU und Start er/ 2. M ont age und Ins tall ati on/ 2. 10. 5 Elektrischer Ansc hluss St euert eil- Klemmenbl oc k X4 – Analog I /O [SK 500... 535E] @ 1\ mod_1341401660718_388. doc x @ 29265 @ 55 @ 1

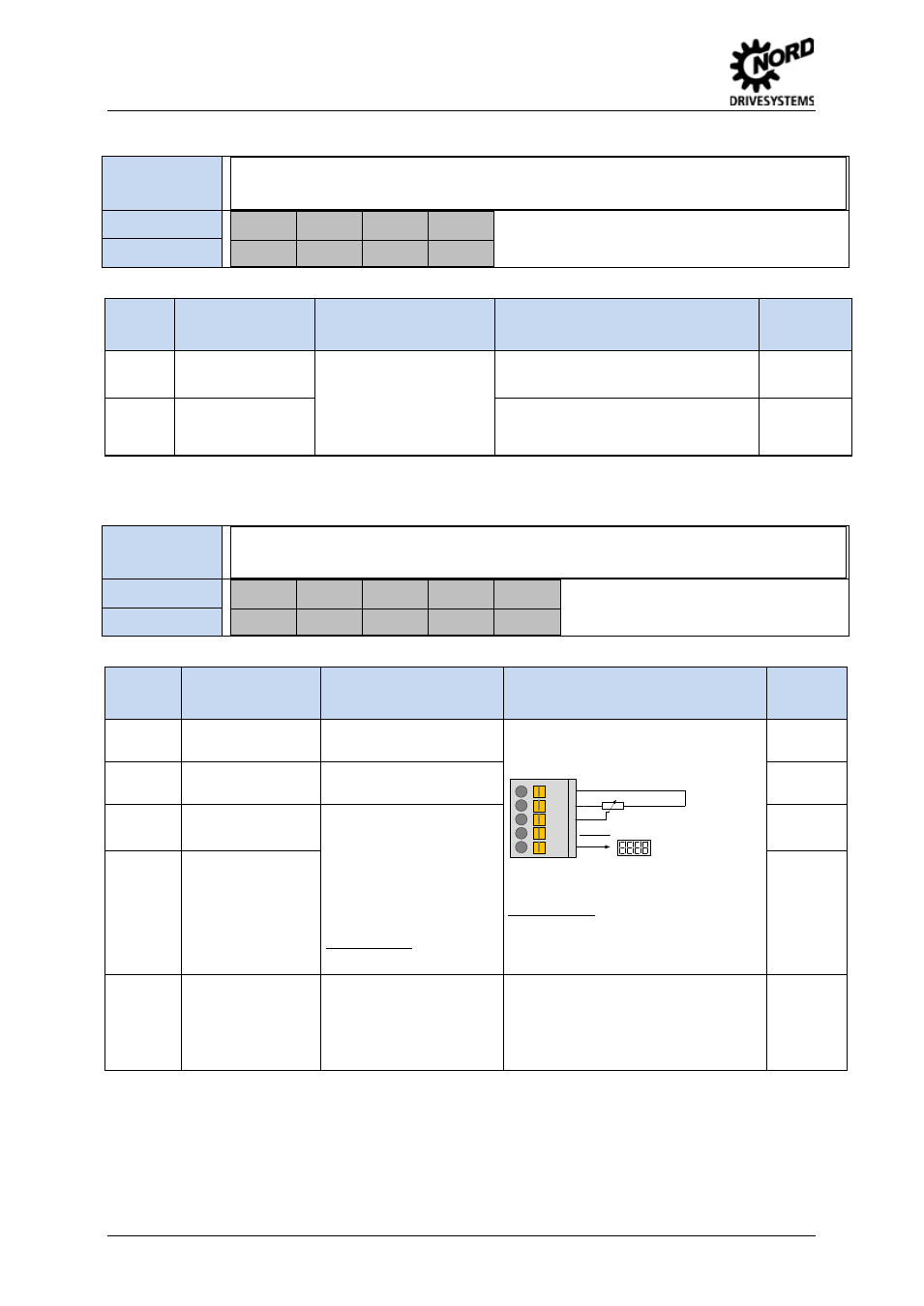

Terminal block X4 – Analog I/O
Relevance
SK 500E SK 505E SK 510E SK 511E SK 515E SK 520E SK 530E SK 535E
√ √ √ √ √ √ √ √
Terminals X4: 11 12 14 16 17
VO 10V GND/0V AIN1 AIN2 AOUT1 Name
Terminal Function
[factory setting]
Data Description / wiring suggestion Parameter
11 10V Reference
voltage
10V, 5mA
The analog input controls the output
frequency of the frequency inverter.
11
12
14
16
17
R=10k
The possible digital functions are
described in Parameter P420.
Above Size 5:
Configuration of analog input with DIP
switch (see below)
12 Reference potential
for analog signals
0V analog
14 Analog input 1
[set point frequency]
V=0...10V, R
i
=30k
W,
I=0/4...20mA, R
i
=250
W,
can be switched over with
DIP switch, reference
voltage GND.
For the use of digital
functions 7.5...30V.
Above Size 5:
also -10 … + 10 V signals
P400
16 Analog input 2
[no function]
P405
17 Analog output
[no function]
0...10V
Reference potential GND
Max. load current:
5mA analog,
20mA digital
Can be used for an external display or
for further processing in a following
machine.
P418
