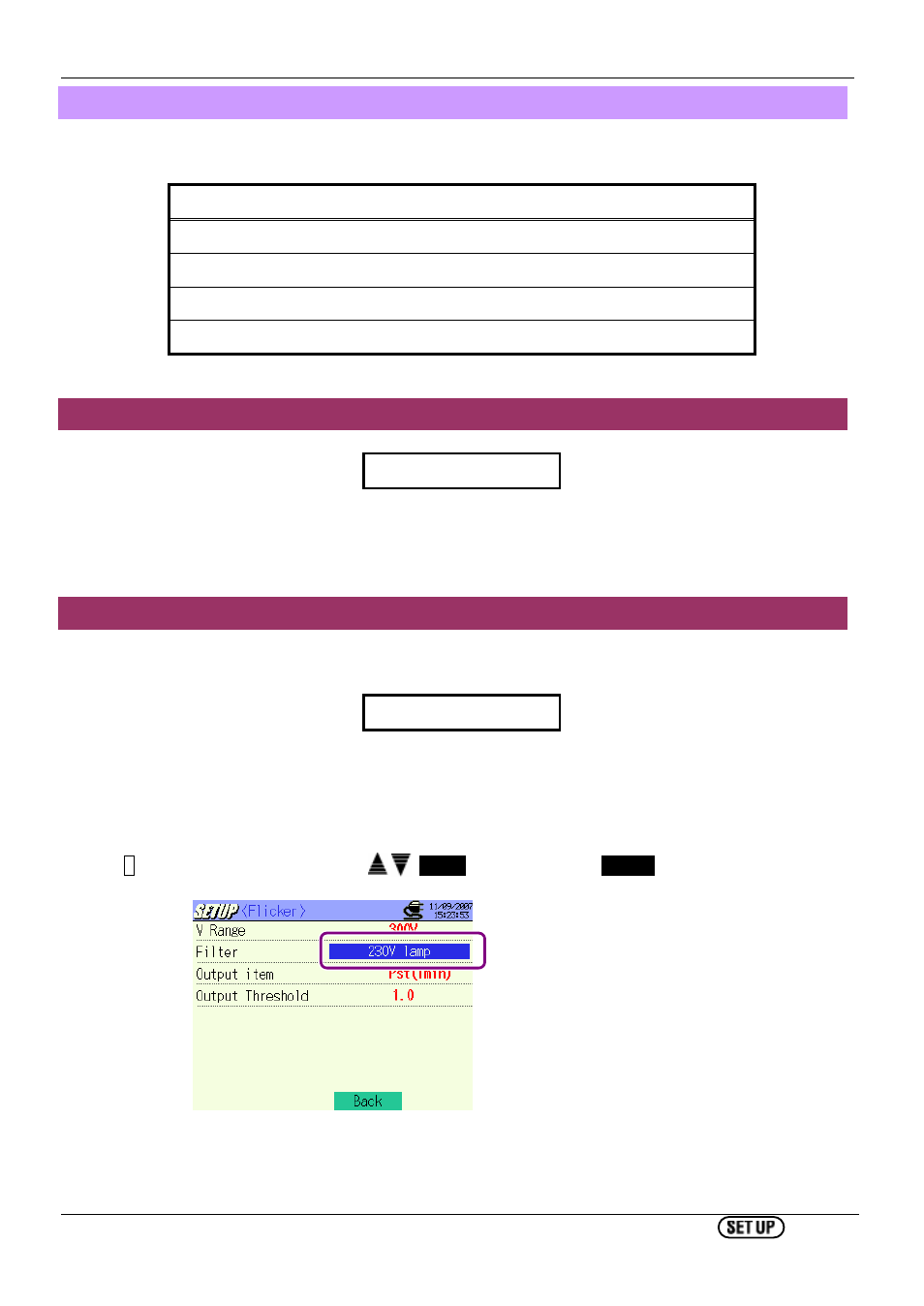

KEW6310 4.2.2 Measurement Setting (QUALITY-Flicker)

KEW6310

4.54

Setting for Flicker measurement

For the details of Flicker measurement, refer to “11.6 Flicker measurement” in this manual.

Setting Items

V Range

：

select a desirable Voltage Range（150～600V）

Filter

：

select a visibility filter for flicker calculation

Output item

：

set conditions for output to Output terminal

Output Threshold

：

select a threshold value for Output terminal

Setting for voltage range

150／300／600V

* Default value (or after system reset) : 300V

* Setting procedure is same to that for Voltage Range described in the clause of “Setting for Transient

measurement“. Refer to the procedure described in the preceding pages.

Setting for Filter

Follow the procedure below and select any filter factor.

230V／120V／100V

* Default value (or after system reset) : 230V

1 Select any desirabe [Filter] with

Cursor

Key and press the

ENTER

Key.
