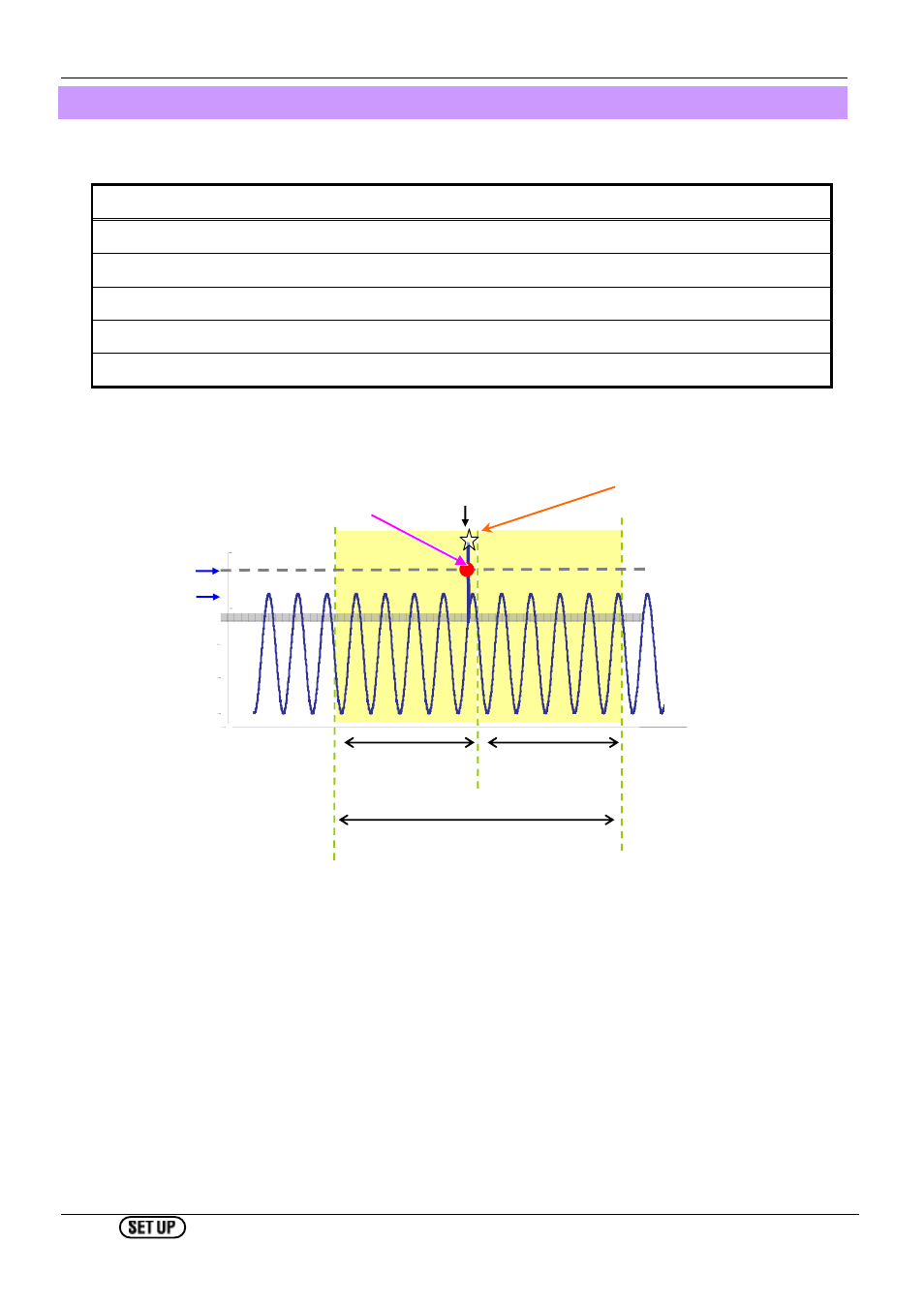

4.2.2 Measurement Setting (QUALITY-Transient Measurement) KEW6310
4.47
KEW6310
Setting for transient measurement
For the details of Transient Measurement, refer to “11.3 Transient measurement” in this manual.
Setting Items
Interval
*1
set interval time
V Range
:
select a base Voltage Range(150～1000V)
Threshold value
:
set Vpeak against Voltage Range(50～2000Vpeak)
Hysteresis
:
set a hystereis in percentage against Voltage Range(1～10％)
Trigger point
:
set a number of data save point prior to / following an event of trigger
* Selectable range for threshold (Vpeak) is automatically displayed when selecting Voltage Range (V).
*1 Flicker measurement function is only available with ver.2.00 or later.
Start
Past 100
data pts
201 data pts
recorded
Trigger
Threshold
110% Vpeak
100%
(Reference
voltage)
Next 100
data pts
Peak (max)
