5
START-UP
64
OPTISONIC 6300
www.krohne.com 07/2009 - 4000263902 - HB OPTISONIC 6300 R03 en
• Secure by turning screws clockwise.

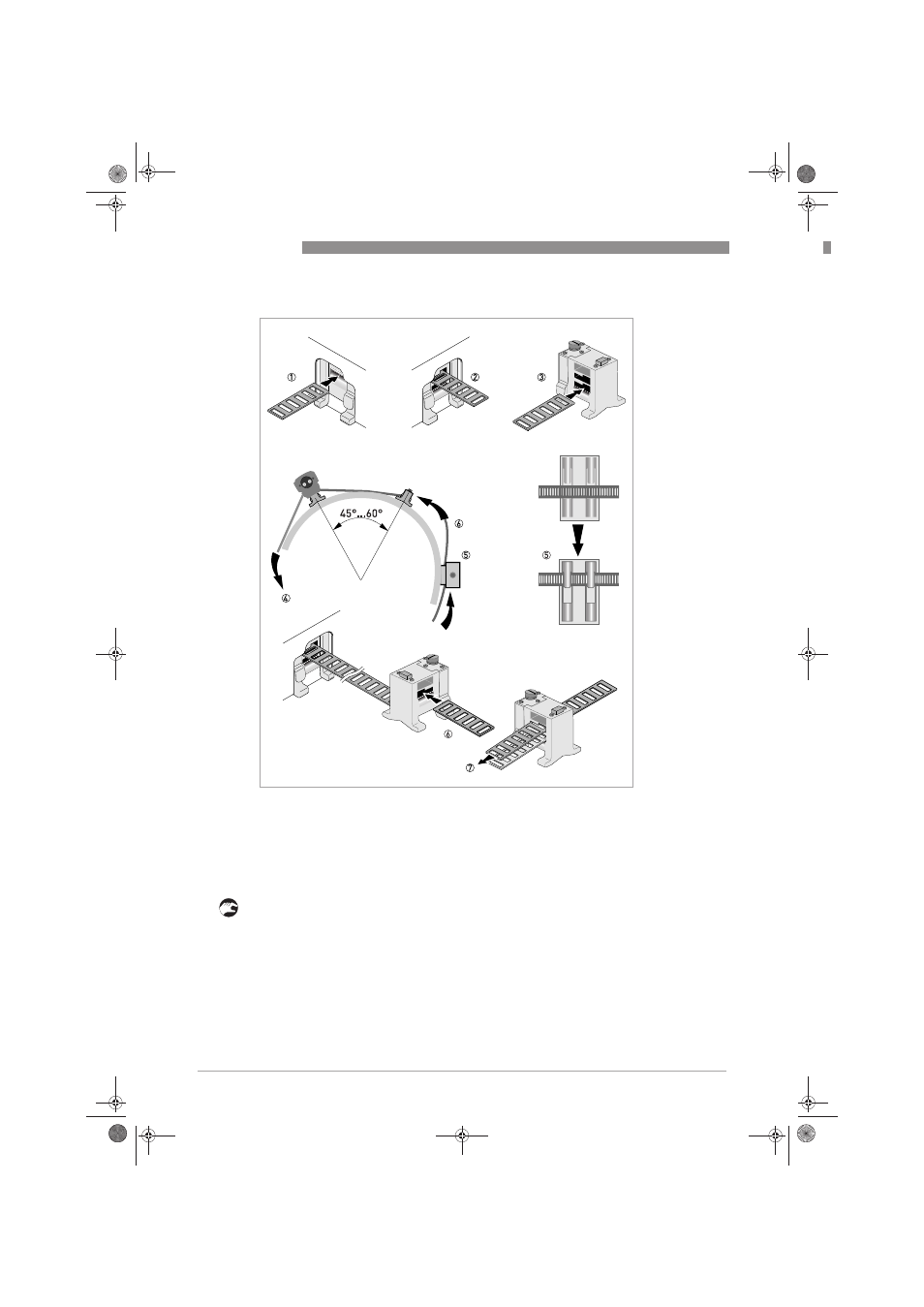

Figure 5-5: Mounting large version rail
1 Pull the metal strap through the upper slit of the UP rail.
2 Take the metal strap around the pipe (45...60°).
3 Push the end of the metal strap in the lower slit of the fixing unit.
4 Take the other side of the metal strap around the pipe to the fixing unit.
5 Mount the cable box (only for downstream metal strap).
6 Push the metal strap through the upper slit of the fixing unit.
7 Pull the metal strap moderately tight by hand.
