8
TECHNICAL DATA
106
OPTISONIC 6300
www.krohne.com 07/2009 - 4000263902 - HB OPTISONIC 6300 R03 en
Technical data
8.1 Measuring principle
• Like canoes crossing a river, acoustic signals are transmitted and received along a diagonal
measuring path.
• A sound wave going downstream with the flow travels faster than a sound wave going
upstream against the flow.
• The difference in transit time is directly proportional to the mean flow velocity of the medium.

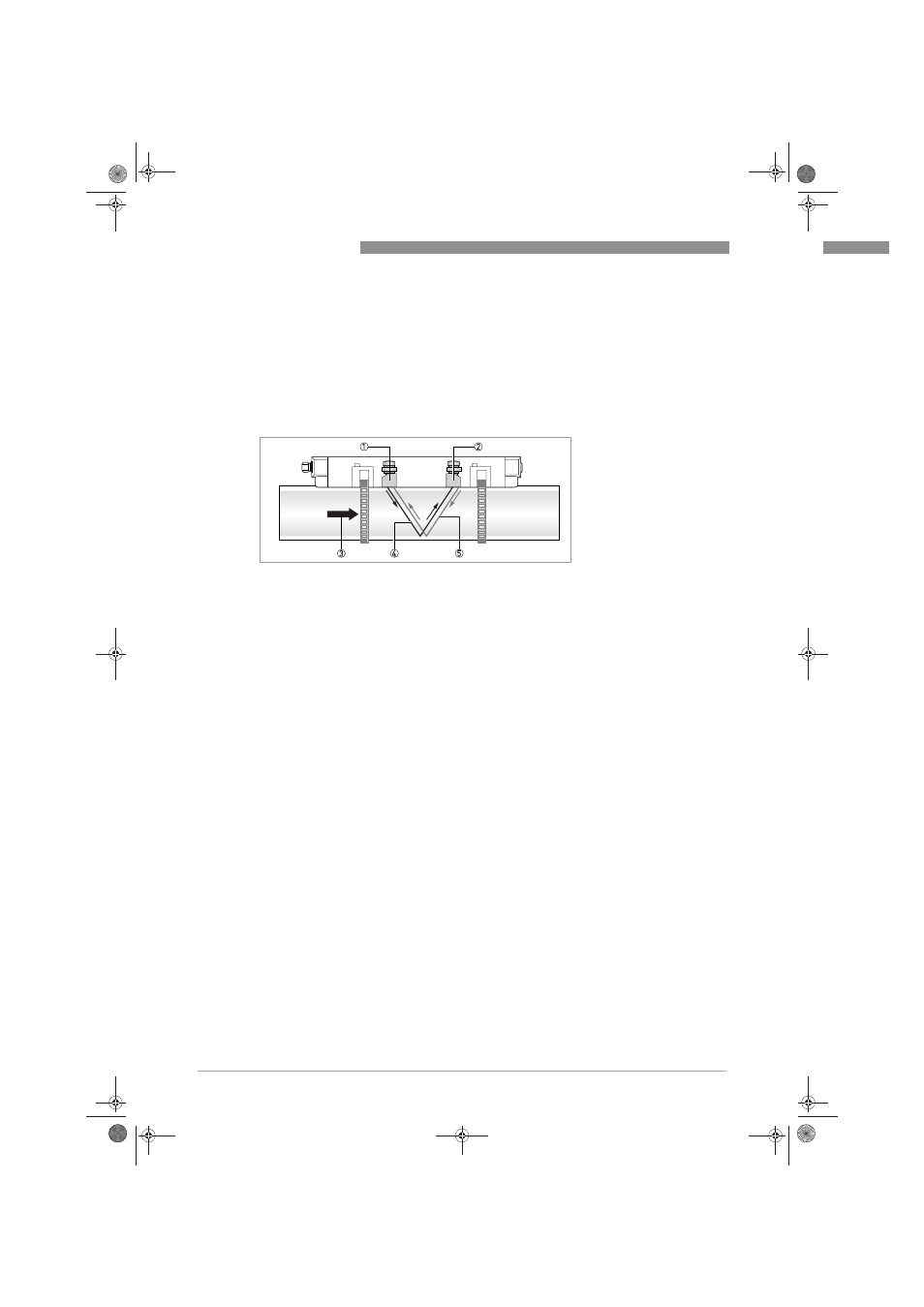

Figure 8-1: Measuring principle
1 Transducer A
2 Transducer B
3 Flow velocity
4 Transit time from transducer A to B
5 Transit time from transducer B to A
