RS232 REMOTE
85
6. Connect to the terminal program
with the following configuration
settings:
 COM port (as per PC)
 Baud rate- 38400
 Data bits- 8
 Stop bit- 1
 Parity- none
 Flow control- none
Terminal
Initiation 7. From the terminal program enter
the following commands, with
^END^M or ^J^M as the terminal
characters.
Terminal command: COMU?
LCR Return: COMU:ON..
Terminal command: COMU:OVER
LCR Return: COMU:OVER

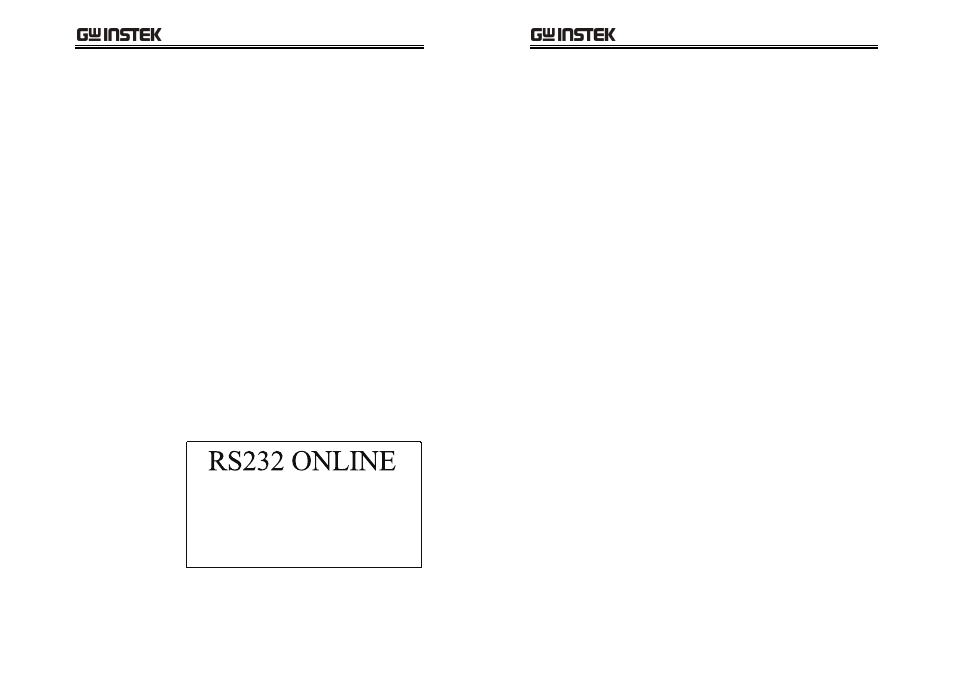

8. The LCR-800 will display RS232
ONLINE when the connection is
successful.
9. See the Programming chapter for
remote programming details.
Page 87
LCR-800 User Manual
86
Disconnection 10. To disconnect remote control send
the following command with
^END^M or ^J^M as the terminal
character.
Terminal command: COMU:OFF.
LCR Return: COMU:OFF.
