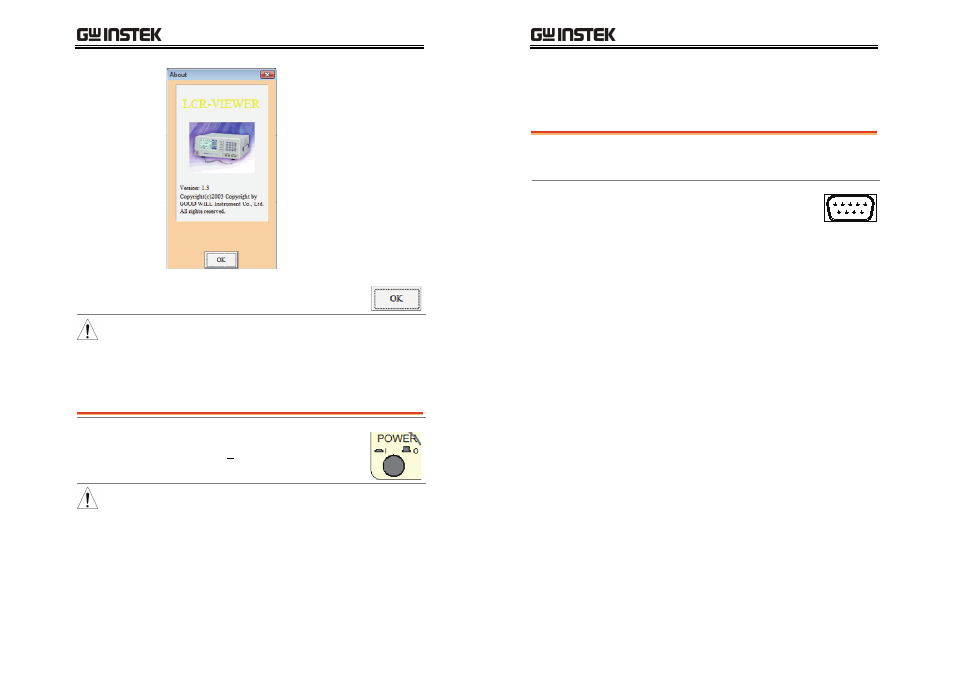

RS232 REMOTE
83
4. Press OK to exit.
Note All file menus (File, Option, Data, Help) are restricted
in Auto mode. To change to manual mode see page 80
to change to Manual mode remotely.
Exit LCR Viewer
Operation 1. Press the POWER software button
or go to FileExit when in manual
mode.
Note All file menus (File, Option, Data, Help) are restricted
in Auto mode. To change to manual mode see page 80
to change to Manual mode remotely.
LCR-800 User Manual
84
Terminal Connection
Configure Terminal Connection
Background To connect the LCR-800 to a terminal program,
follow the instructions below.
Connection
Settings 1. Connect the LCR meter to the PC
with an RS232 cable.
2. Ensure the LCR-800 is set to
manual (single) measurement
mode.
Page 43
3. Ensure RS232 has been enabled on
the LCR meter.
Page 73
4. Open a terminal program such as
MTTTY (Multithreaded TTY).
5. Check the COM port settings on the
PC. In Windows use Device
Manager. Go to the Control
PanelSystemHardware tab to
see the COM port settings.
