BIN FUNCTIONS
51
Parameter 1,2,3,4
Delay Delay between each measurement
Parameter 0~99999 ms
MANU/
AUTO
Selects between automatic and manual
mode
Parameter Auto, Manu
INT.B/EXT.B Internal and External voltage Bias
Parameter INT.B, EXT.B
C.V Constant voltage
Parameter On, Off
AVG Number of Averages
Parameter 1-255
Menu Keys Scroll up through the menu items
Scroll down through the menu items
Edit the menu items
Exit the menu
LCR-800 User Manual
52

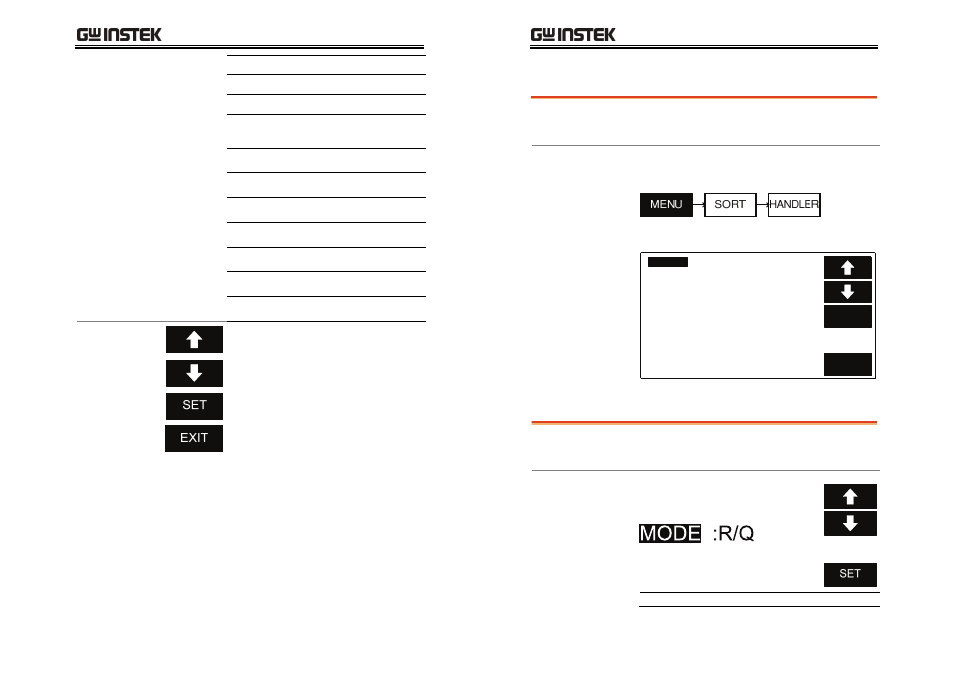

Handler Menu
Background Before Bin Sorting, the measurement settings must
be configured.
Panel operation 1. To access the handler menu, press MENU,
SORT, HANDLER from the main menu.
2. The Handler menu appears.
SLOW
V : 1.000
RANGE: 1
DELAY : 00000mS V
EXIT
SET
INT.B
C.V
AVG :
: OFF
1
OFF
MODE
SPEED CIRCUIT
DISPLAY
BIN SUM
: :VAL
:SER. :R/Q
:FAST
R
24.83
F : 1.0000
Q
MANU
.0000
kHz
Ω
SET BIN
Mode Setting
Background Use the mode setting to change the measurement
mode in the handler menu.
Panel Operation 1. Use the arrow menu keys (F1/F2)
to move the cursor to MODE.
2. Press SET repeatedly to scroll
through the different modes.
R/Q  C/D  C/R  L/Q
