BASIC MEASUREMENT
31
Parameter Configuration
Measurement Speed
Measurement
Speed The LCR-800 series support 3 different
measurement speeds: slow, medium or fast at
approximately 1, 5 or 12 (LCR-829/827/826)
measurements per second. The faster the
measurement speed, the lower the accuracy.
Conversely the slower the measurement speed, the
higher the accuracy. The measurement speed and
accuracy are dependent on the mode, voltage and
frequency. For detailed information, see the
specification table on page 136.
LCR-817/ 819/ 821 Accuracy Measurements/second
Slow 0.05% At least 1
Medium 0.1% At least 3
Fast 0.24% At least 7
LCR-816/826/827/829 Accuracy Measurements/second
Slow 0.1% At least 1
Medium 0.2% At least 3
Fast 0.48% At least 7

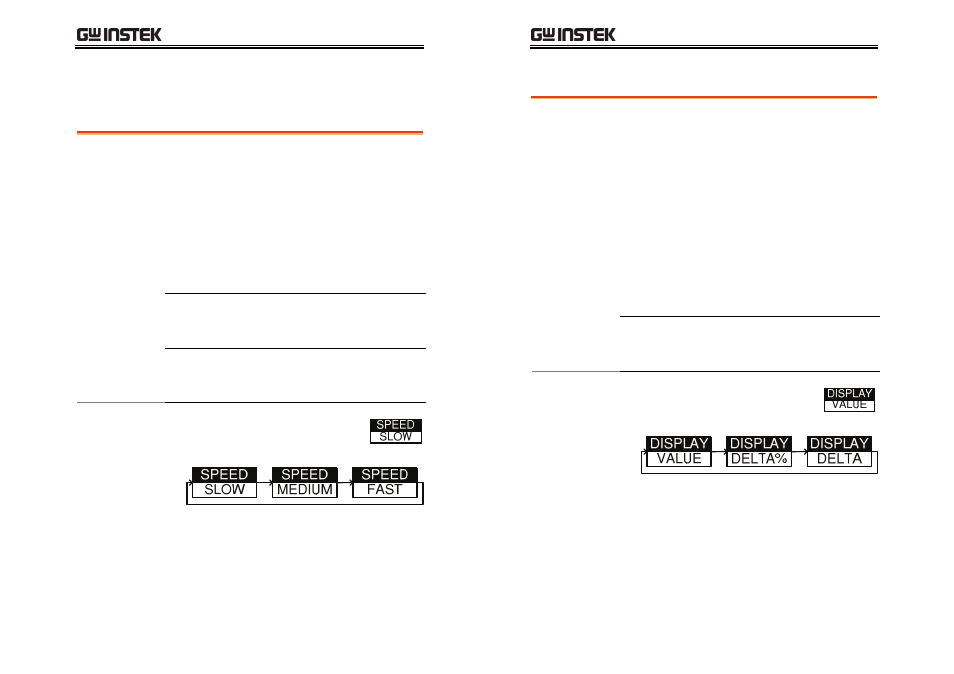

Panel operation 1. From the main menu, press the
SPEED menu key to cycle between
the various speeds.
LCR-800 User Manual
32
Displayed measurement unit
Measurement
units All measurement unit results can be displayed as
the absolute values, delta values or delta
percentage values.
Value will show the absolute value of the
measurement in Ohms (Ω), Henries (H) or Farads
(F). The primary measurement has resolution of 5
digits; the secondary has a resolution of 4 digits (θ,
2 digits).
Delta% will show the percentage deviation of L, C,
R or Z from a nominal (stored) value.
Delta will show the deviation from a nominal
value as an absolute value in Ohms (Ω), Henries
(H) or Farads (F).
Units
Value Ω, H, F
Delta Absolute deviation (Ω, H, F )
Delta% % deviation
Panel operation 1. From the main menu, press the
DISPLAY menu key to cycle
between the display types.
