Mounting to the Wall Using Bracket

When mounting YFGW710 to the wall, use the bracket for the housing. When the body is or-

dered, the bracket is specified by the model code. To avoid the communication problem caused

by the wall, mount the Gateway in the place where any obstacles do not exist around the an-

tenna.
When no place satisfying the mounting condition, the antenna should be mounted in an appropri-

ate place apart from the main body using the extension cable.

Mounting Procedure

1. Fix the bracket for the housing using the 4 provided screws on the back of Gateway
2. Fix the Gateway to the wall using M5 screws through screw holes.
3. To avoid the vibration and wind and so on, fix the antenna on the place apart from the wall

and obstacles according to the procedure described in A3.2.4.

190

126.5

Ø6.5 hole

or M5 Screw

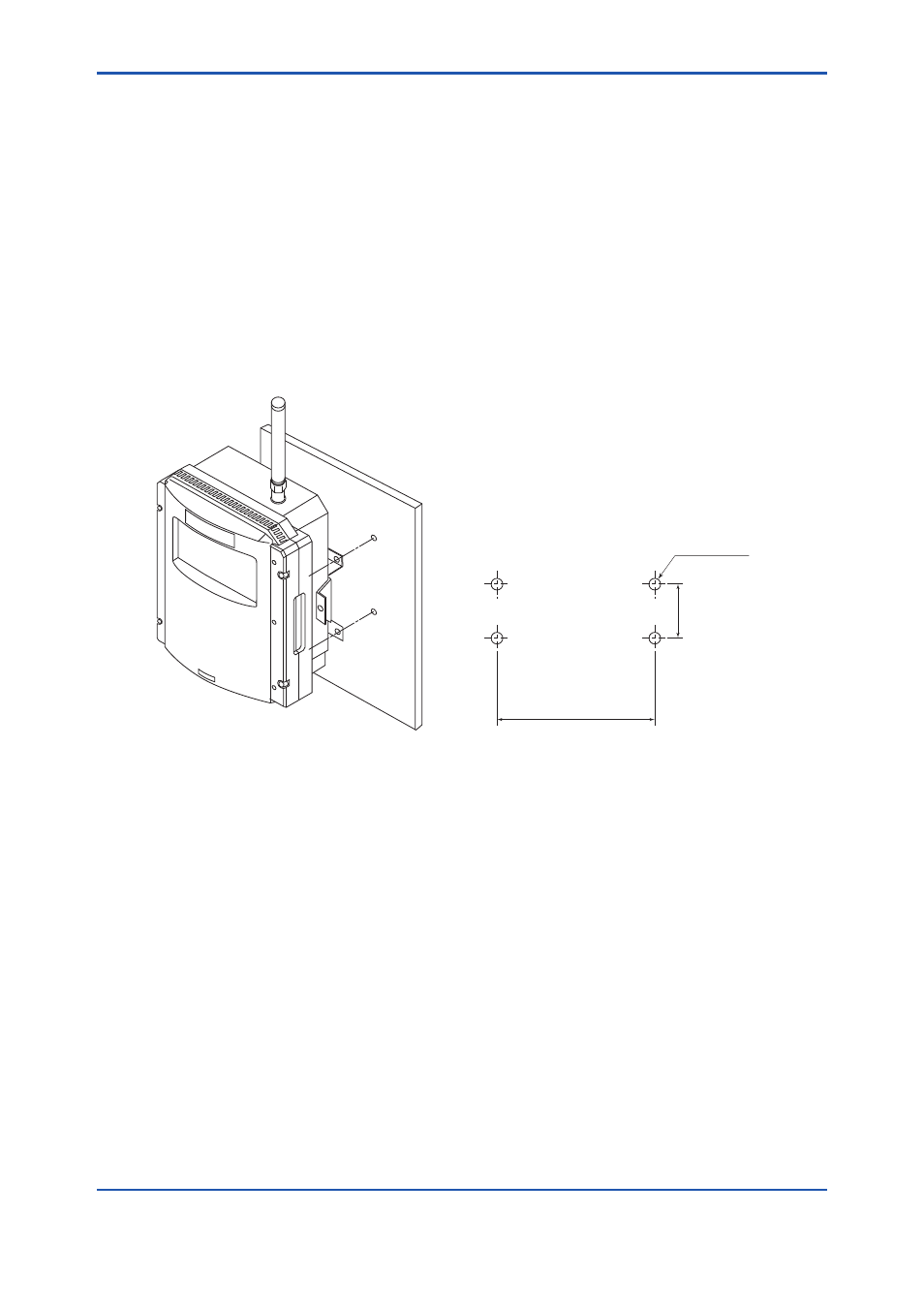

FA0304.ai

Mount the main body on the wall with the

bracket and M5 screws.

The provided bolts and nuts are not used.

Fig. A 3-4 Mounting to the wall
