C2-12
IM 01W01F01-01EN
When the Network Information tab page is opened for the first time, all these attributes are popu-
lated with the default values loaded from the Default Values table in the Options window. If you
have changed network settings, click [Apply] changes to save them.
The network ID and Device Tags are unique in a project and they are generated automatically in
increasing order for each entity, as described below:
• Network ID: The default is a natural number starting at 100. When assigned manually, the
network ID can be any natural number between 2…65535.
• Gateway: “YFGW-GWxxx”
• System Manager: “YFGW-SYSxxx”
• Backbone Router: “YFGW-BBRxxx”
Where xxx is a numeric value between 000...999.
The EUI-64 address is automatically filled with the default value and displayed as read-only.
The default network topology is set as “Star” (star type network).

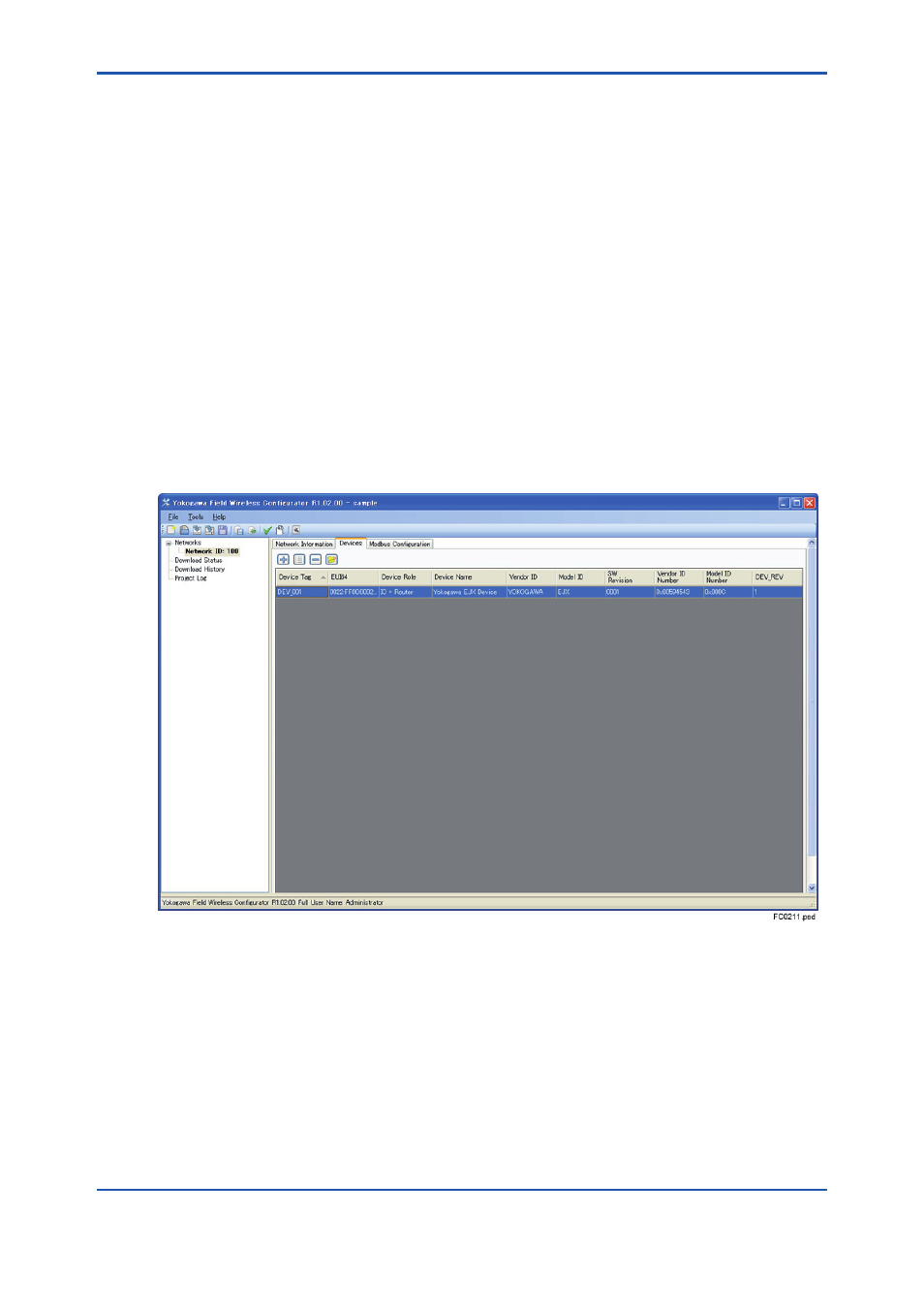

l Devices Tab
The Devices tab displays and allows you to manage the device list for the network ID selected in
the left tree. You can add, edit, and remove devices in this section.
Figure C 2-11
