<5. BASIC OPERATING PROCEDURES
(USING THE DISPLAY UNIT)
>
5-2
IM 01E30D01-01EN

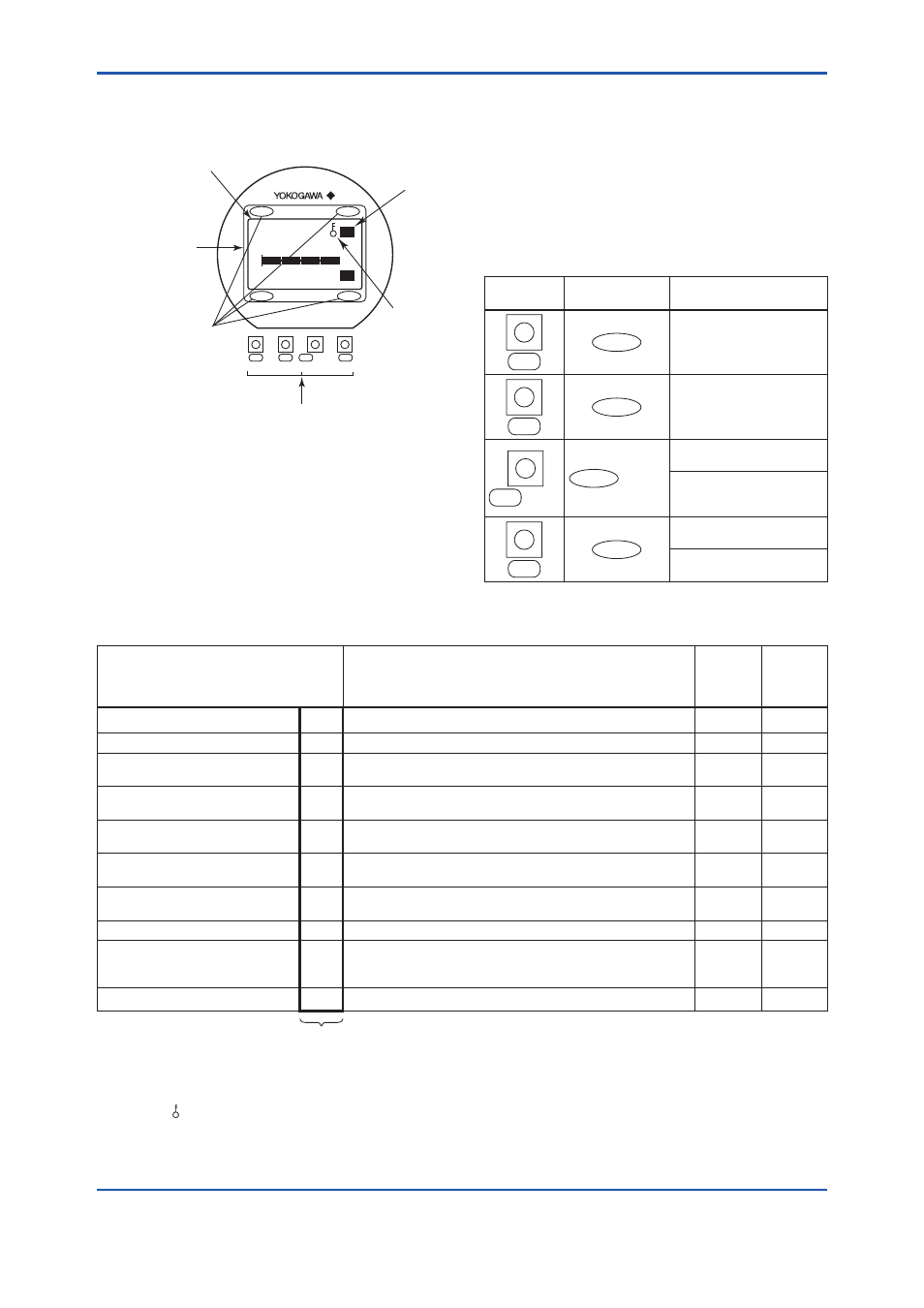

5.1 Operating Panel
Configuration and Functions
F0501.EPS
(4) Reversed
character
display
(5) Write
Protect
(3) Display items
(2) Setting switches
(Push button switches)
(2) Setting switches
(Magnet switches)
(1) Data display area
100.0
FR
FTL 3274m 3
0 100
m 3 /h
ESC SET
DEC /SHIFT INC
SET ESC INC DEC /SHIFT
(1) Data display area
1st line (Display Select1), 2nd line (Display
Select2) and 3rd line (Display Select3) can
be displayed using parameter settings. The
content corresponding to selected items is
shown with the reversed-character on the right
of the line.
(2) Setting switch operation
Push
switch
Magnet
switch
Explanation of Operation
ESC
ESC Move the layer up
SET
SET
Move the layer down, select
and confirm
DEC /SHIFT
DEC /SHIFT
Move the cursor up (for
selection-type parameters)
Move the cursor to the
right(for numeric-type
parameters)
INC
INC
Move the cursor down (for
selection-type parameters)
Increase values (for
numeric-type parameters)
(3) Display items
Displayed items and
reversed-character indication
Content Disp Select1 Disp Select2
Disp Select3
Instantaneous flow rate: % FR Displays the instantaneous flow rate for the span as a percentage.  
Actual instantaneous flow rate FR Displays the actual reading for instantaneous flow rate.  
Instantaneous flow rate: mA FR Displays the instantaneous flow rate for the span as a current output
value.
 
Bar graph indicating instantaneous
flow rate
None Displays the instantaneous flow rate for the span as a percentage using
bar graph.
 
Totalized forward-direction flow rate FTL Displays the totalized value for flow rate in the forward direction.  
Totalized reverse-direction flow rate RTL Displays the totalized value for flow rate in the reverse direction.  
Totalized differential flow rate DTL Displays the differential totalized value for flow rate between forward
totalization and reverse totalization.
 
Tag number TAG Display the tag number (using up to 16 characters).  
Diagnosis of electrode adhesion ADH
Displays the adhesion condition in the form of a bar graph. (See the
description for parameters K10 through K17 from Chapter 6: Parameter
Description for more details.)
 
Communication COM Displays the communication type.  
(4)
(5) Write Protect
The mark “ “ is displayed in the “Major item parameter search mode” and “Sub-item parameter search mode”
during acting the write protection. Regarding the procedure for moving to “Parameter search mode”, refer to
5.2.1. Regarding “Write Protect”, refer to “Chapter 6 Menu P: Parameter Protection items”.
