<4. WIRING>
4-3
IM 01E30D01-01EN
For working on the electric wire tubes or the flexible
tubes (PF1/2), remove the waterproof gland and
attach them directly to the wiring port.
F0404.ai
Gasket
Washer
Tightening gland
When working on conduit pipes or flexible pipes (PF1/2 only)
Cable
PF1/2

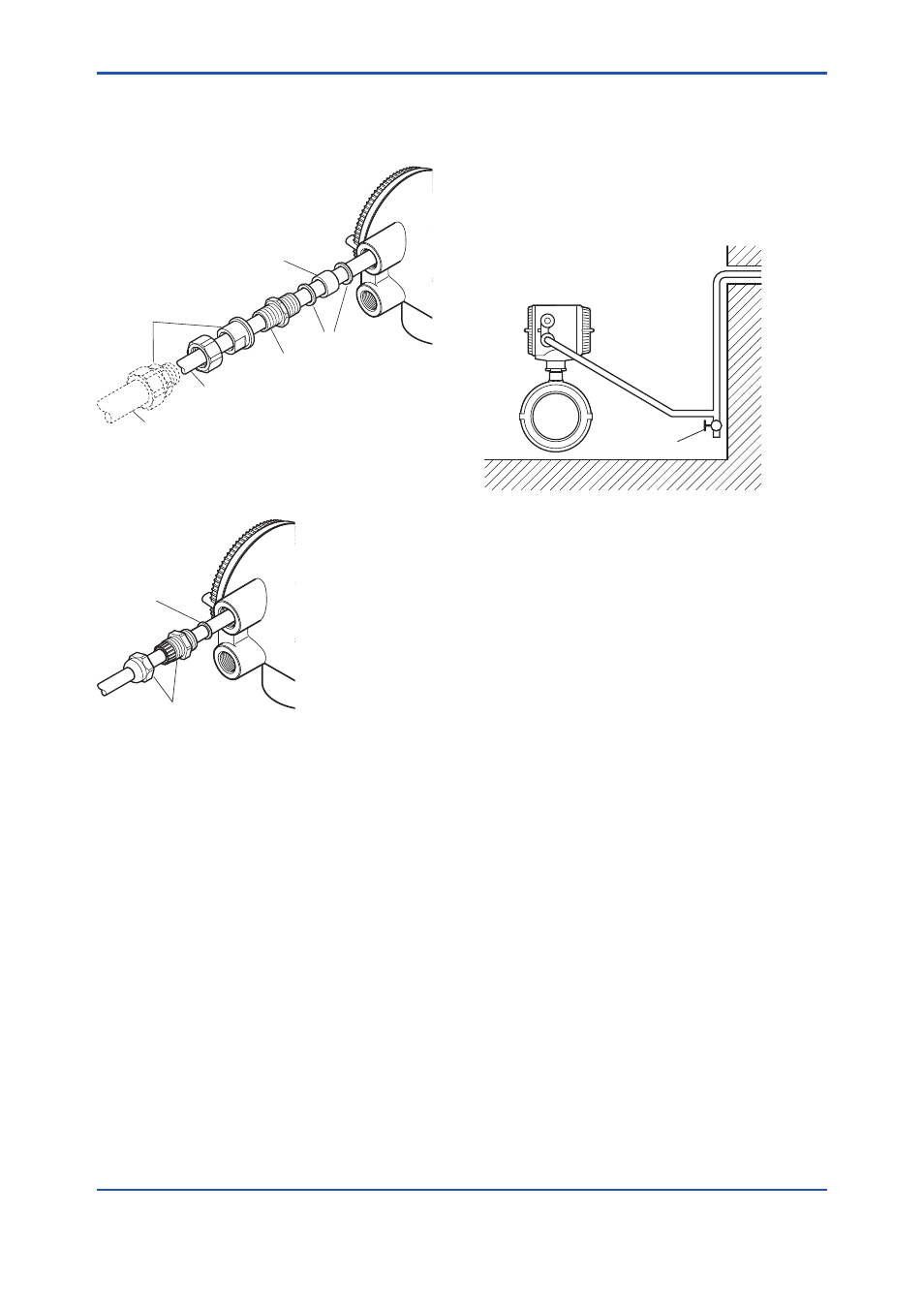

Figure 4.3.2 Waterproof Gland with Union Joint
(Optional code EU)
Plastic gland
Gasket
F0405.ai
Figure 4.3.3 Plastic Gland (Optional code EP)
(3) Conduit Wiring
When wiring the conduits, pass the conduit
through the wiring connection port, and utilize the
waterproof gland to prevent water from flowing in.
Place the conduit pipe on an angle as shown in
Figure 4.3.4. Install a drain valve at the low end of
the vertical pipe, and open the valve regularly.
Drain valve
F0406.ai
Figure 4.3.4 Conduit Wiring
