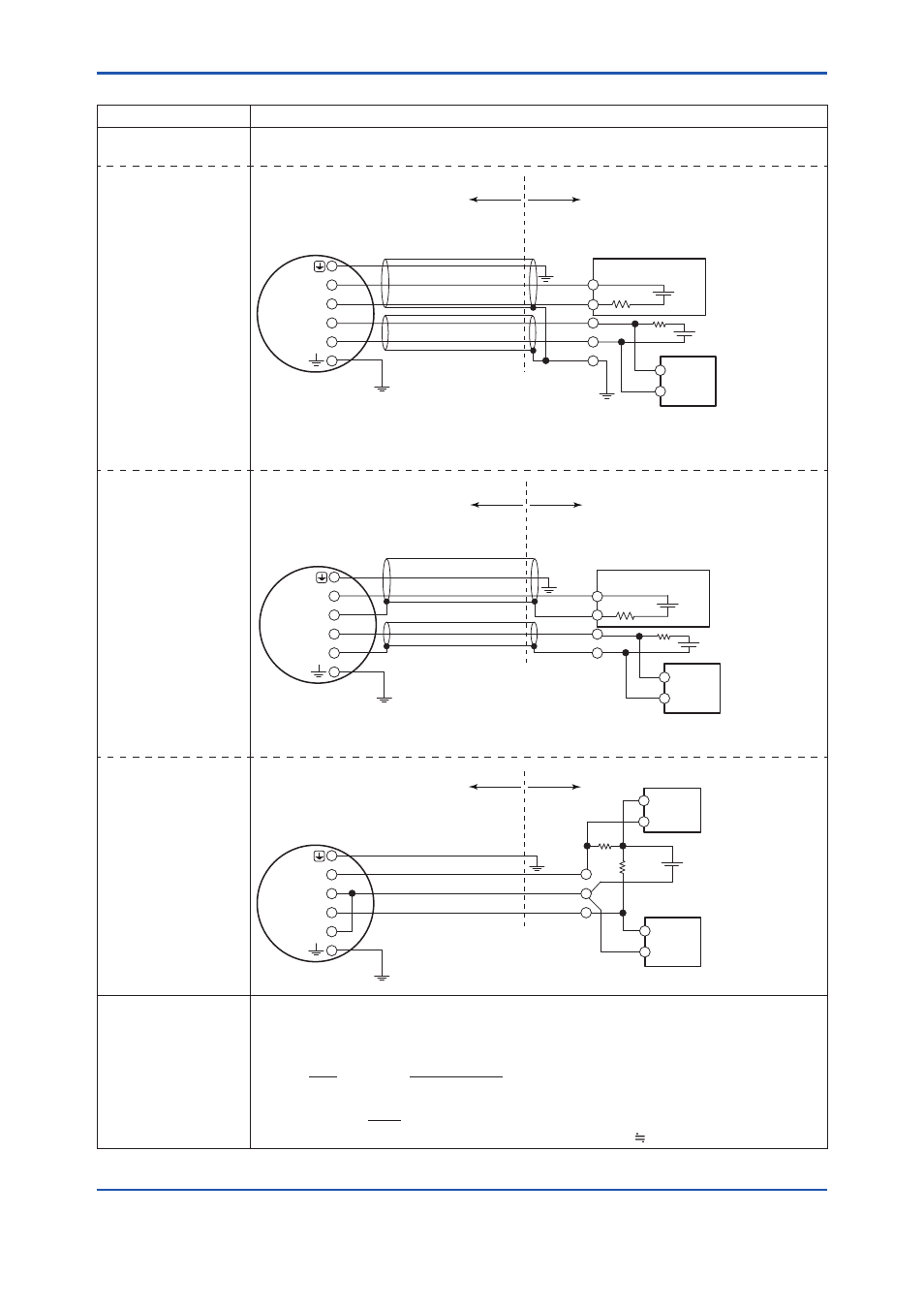

Table 4.6.6 TIIS Explosion Proof Type Wiring Examples (Simultaneous Current-Pulse Output)
Connection Description
Simultaneous
Current-Pulse Output
When simultaneous output of current and pulse output are used, no communication is possible
in some cases. Refer to following example 1 to 3.
Example 1
In this case,
Communication is
possible (up to a
distance of 2 km
when a CEV cable
is used) and when a
two-wire or three-
wire shielded cable
is used.
No communication is possible
when a shielded cable is not used.
However, simultaneous current-pulse output is possible.
Shielded Cable
Distributor, etc.
R3
R
Shielded Cable
For the shielded cables in this example,
use two-wire shielded cables
separately for SUPPLY and DO.
E1
AXR Terminal
E3:30 V DC max
*8
*7
*6
*3
*3: This supply voltage requires a power source
with a maximum output current of no less than E3/R.
Electric
counter
R3 [ Ω ]:Load Resistance JIS Class A
SUPPLY
DO
0.0236 x (R1 + R2+ R3) + 14.7 ≤ E1 [V] ≤ 42
*10
In the case of R3=250[ Ω ]
0.0236 x (R1 + R2) + 20.6 ≤ E1 [V] ≤ 42
*10
Cable Resistance:R1 [ Ω ] *9
Cable Resistance:R2 [ Ω ] *9
+
−
+
−
+
−
+
−
Hazardous area Non-hazardous area
Example 2
In this case,
Communication is
possible (up to a
distance of 2 km
when a CEV cable
is used) and when a
one-wire or two-wire
shielded cable is
used.
Shielded Cable
Distributor, etc.
R3
R
Shielded Cable
For the shielded cables in this example,
use two-wire shielded cables
separately for SUPPLY and DO.
E1
AXR Terminal
E3:30 V DC max
0.0236 x (R1 + R2+ R3) + 14.7 ≤ E1 [V] ≤ 42
*10
In the case of R3=250[ Ω ]
0.0236 x (R1 + R2) + 20.6 ≤ E1 [V] ≤ 42
*10
*7
*6
*4: This supply voltage requires a power source
with a maximum output current of no less than E3/R.
R3 [ Ω ]:Load Resistance
*4
JIS Class A
*8
SUPPLY
DO
Cable Resistance:R1 [ Ω ] *9
Cable Resistance:R2 [ Ω ] *9
Hazardous area Non-hazardous area
Electric
counter
+
−
+
−
+
−
+
−
Example 3
In this case,
No communication is
possible when a four-
wire cable is used.
R
250Ω
E5
0.0236×﴾R1 + R2﴿ + 20.6 ≤ E5 [ V ] ≤ 30
*7
AXR Terminal
Electric
counter
＋
−
*6
*5
JIS Class A
*8
SUPPLY
DO
Cable Resistance:R1 [ Ω ] *9
Cable Resistance:R2 [ Ω ] *9
Recorder
or other
instrument
+
−
+
−
+
−
Hazardous area Non-hazardous area
*5: This supply voltage requires a
power source with a maximum
output current of no less than (E5/R+0.0236).
The range of load
resistance R for the
pulse output
The range of load resistance R for the pulse output must basically be 1 kΩ and 2 W. The load
resistance should be selected by calculation as shown below when proper transmission is
impossible due to the length of cable or frequency of pulse output.
P (mW) = …………………………(2)
R (kΩ)
E 2 (V)
≤ R (kΩ) ≤ … (1)
120
E (V)
C (μF) × f (kHz)
0.1
E: Supply voltage (V)
f: Frequency of pulse output (kHz)
R: Value of load resistance (kΩ)
C: Cable capacitance (μF)
P: Electrical power of the load resistance (mW)
Note: C 0.1 (μF/km) for CEV cable
Note: •The communication is possible though it might not meet a part of the HART communication specification depending on use conditions.
•When using current and pulse output simultanously, the HART communication may be influenced by noise comparing analog output only.
