L2 P
ROTOCOL
(TDM F
IRMWARE
)
Use the L2 protocol menu to select the L2 protocol, configure the protocol specific parameters and view
the status as shown in Figure 7. The following menus are for Total Access 600 Series systems using TDM
firmware.

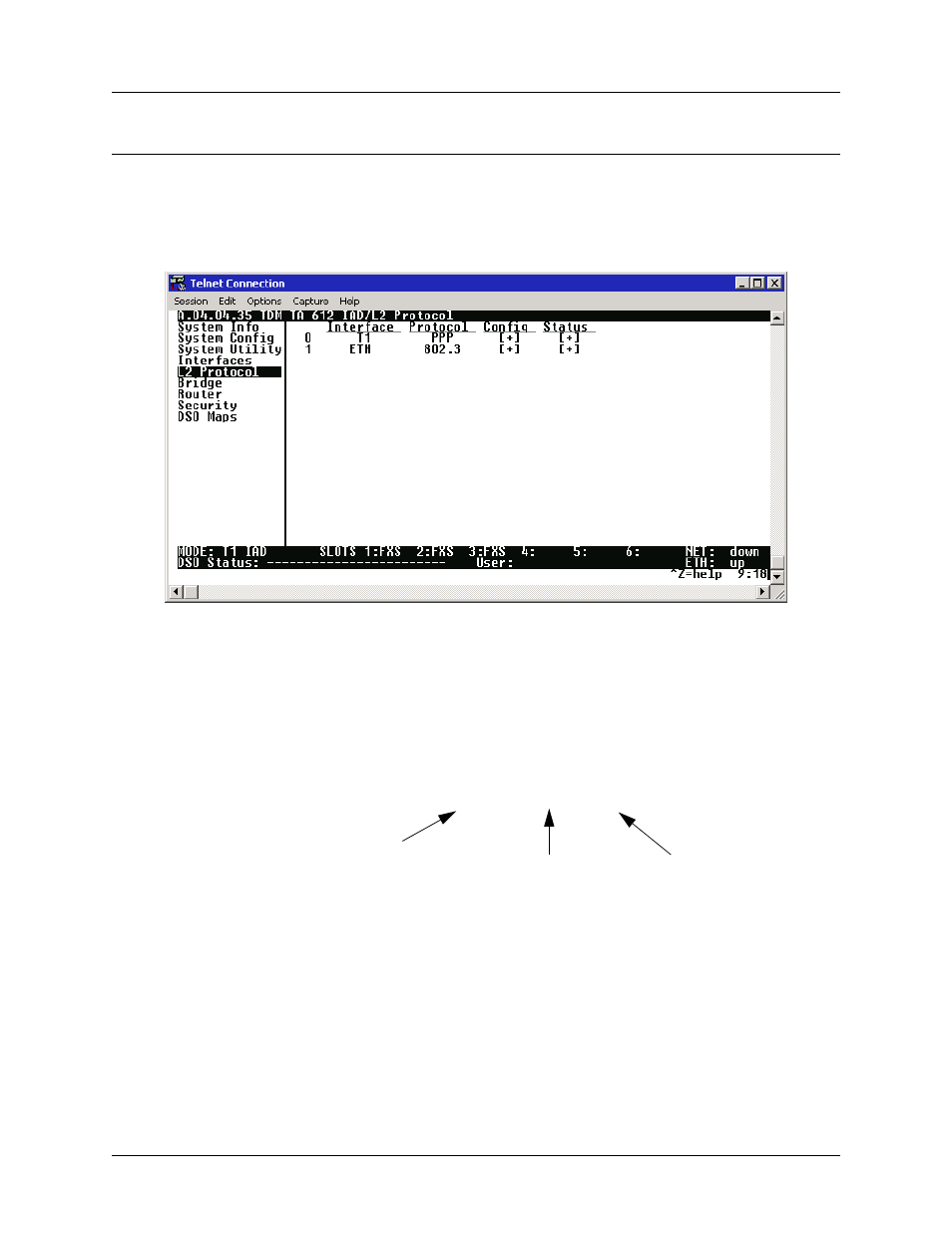

Figure 7. L2 Protocol (T1 TDM) Menu
For convenience, the following heading notations identify the type of firmware and L2 protocol
configured in the Total Access 600 Series system:
L2 Protocol (TDM – T1 – PPP)
Firmware type.
(For example,
TDM or ATM.)
Interface type.
(For example,
T1, Ethernet,
V.35, etc.)
Configured Layer 2
protocol. (For
example, PPP, FRE,
Auto, etc.)
